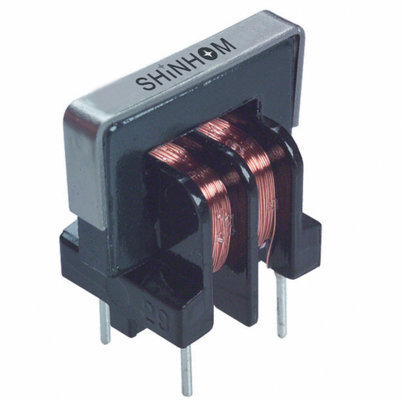

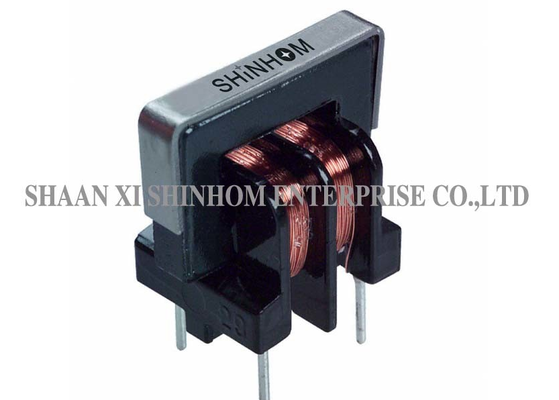

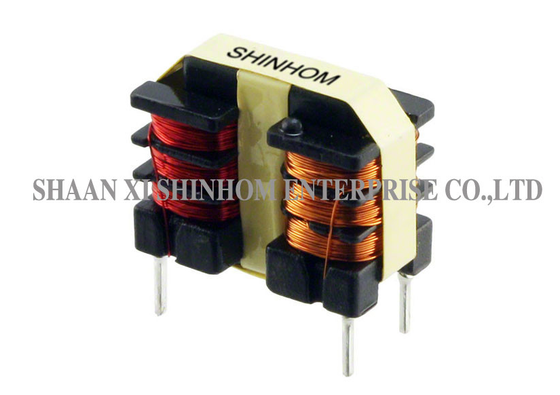

UU9.8 UU10.5 UU15.7 Series Common Mode Choke for Switching Power Supply Line Filters

Customize Common Mode Choke UU9.8 UU10.5 UU15.7 Coil Filter Inductor,EMC Filter AC Common Mode Choke

The UU9.8, UU10.5, and UU15.7 series common-mode chokes are manufactured using high-quality core materials and advanced winding processes, specifically designed for switching power supply line filtering, ensuring high inductance, low flux leakage, and excellent frequency characteristics. The product features a robust and reliable structure and supports customisation according to customer specifications. It meets 250V working voltage and wide operating temperature requirements. It is suitable for switching power supplies, TV and audio equipment, and OA equipment. It is an ideal choice for common-mode choke applications in EMC filtering and line noise suppression.

Features:

• Compact size, high inductance
• Excellent frequency characteristics
• Low magnetic flux leakage
• Design as Customer's Requested Sepecifications

Application:

• For Line filters of switching power supplies
• Eliminates incoming leaking noise of TVs, VCR'S and audio equipment
• For OA equipment, communications equipment and other electronic devices

TECHNICAL INFORMATION

• Max operating voltage:250V at 40℃
• IDC Max: rating AC/DC current A @40℃
• Hi-Pot 2500V AC winding to winding 3S.
• Insulation resistance 100MΩ Min DC 500V
• Temperature Rise Max:40℃
• Inductance Testing: 10KHz 0.1V HP4284A
• RDC:QuadTech 1880 Milliohmmeter
• Surge current Max 10ms: 20X IDC
• Operating temperature: -40℃ to +105℃
• Storage Temperature: -40℃ to +105℃

FAQ

Q: How do you establish long-term good business relationships with us?

A: We insist on high-quality products and fast delivery to ensure our customers win more projects. At the same time, we treat every customer as a friend and sincerely do business with them to build long-term friendship.

Q: How do you control quality?

A: We ensure every product meets specifications through incoming quality inspection (IQC) and 100% quality testing before shipment.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.
