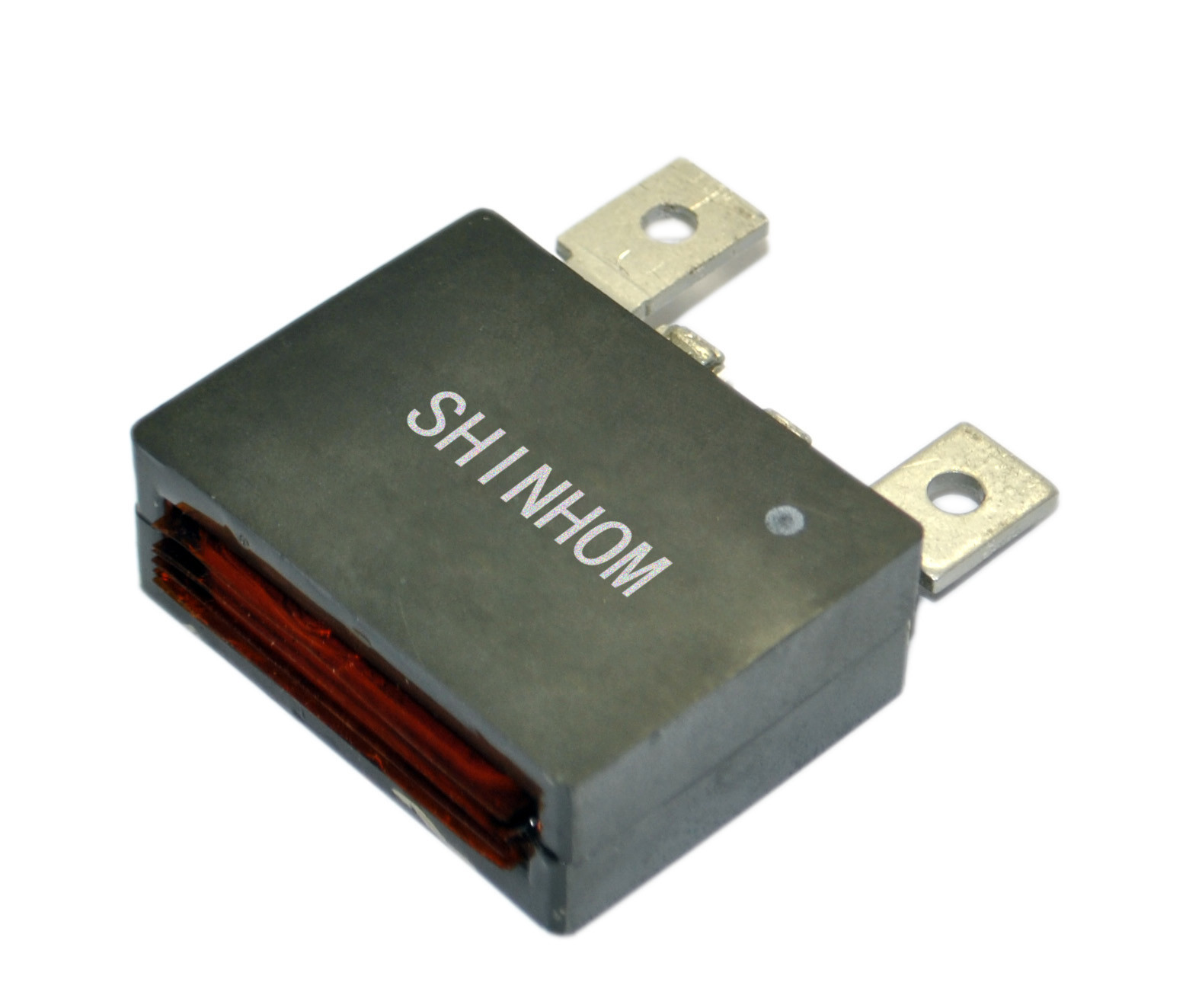

Flat Wire Low Profile High Current Inductor Excellent Thermal Stability

Flat Wire Low Profile High Current Inductor Excellent Thermal Stability
Flat Wire Low Profile High Current Inductor Excellent Thermal Stability Flat Wire Low Profile High Current Inductor Excellent Thermal Stability

Large Image :  Flat Wire Low Profile High Current Inductor Excellent Thermal Stability Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HCP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Wire: Flat Copper Wire Inductance Range: 1.0uH To 6.8uH
Test Frequency: 100KHz,1V Tolerance: ±20%,±30%
Operating Temperature: -40℃ - +105℃ Current: Up To 73A
High Light:

high current inductors chokes

,

smd power choke

HCP Series Flat wire, Low Profile, High Current Inductor Excellent Thermal Stability



FEATURES:

  • High Frequency Design
  • Shielded Constrution
  • Flat wire used
  • Excellent Thermal Stability
  • Low Profile, Low DCR.
  • Super Larg Current up to 73A
  • Custom Inductors are available



APPLCATIONS:

  • Notebook, DC/DC Converters
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions
  • Network Systems
  • Computer Peripheral Equipment
  • CPU Power Supply



NOTES:·

  • Inductance Testing: HP4284A, 100kHz/1V or equivalent
  • RDC:QuadTech 1880 Milliohmmeter
  • Isat Current L value drop 65% typ.at IDC against its initial value
  • Irms Temperature rise 40℃Max Reference Ambient temperature
  • Solderability: 75% of the lead wire Shall be covered
  • Soldering Methods: Wave,Reflow
  • Operating Temperature:-40℃ to +105℃
  • Storage Temperature: -55℃ to +125℃
  • Terminal bending strength:24.5N Min
  • Moisture resistance: △L/L≤±10% △Q/Q≤±25%



Note: Product specifications can be customized.



Tag:

smd power choke,

high current inductors chokes,

low profile high current inductor
