1KHz 0.25V Toroidal Core Inductor Toroidal Power Inductor 680µH Inductance Range

Name: 1KHz 0.25V Toroidal Core Inductor Toroidal Power Inductor 680µH Inductance Range
Brand: Shinhom
SKU: TRF09
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (141 reviews)

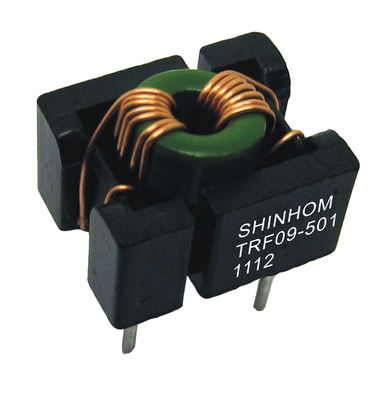

Large Image : 1KHz 0.25V Toroidal Core Inductor Toroidal Power Inductor 680µH Inductance Range Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	TRF09

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Est Frequency:	1KHz,0.25V	Inductance Range:	Up To 680uH
Current Range:	Up To 10A	Working Frequency:	High Frequency
Operating Temperature:	-40℃ - +105℃	Inductor Value:	Fixed Inductor
High Light:	high current inductors chokes , smd power choke

High frequency Toroidal Core Inductor Toroidal Power Inductor up to 680uH Inductance Range,with base

FEATURES:
Lowest DCR/μH
Current Rating:up to 10Apk
Inductance Range: 680µH

NOTES:.

Test Frequency : 1.0KHz / 0.25Vdc
Testing Instrument : L:HP4284A, CH11025,CH3302, CH1320, CH1320S LCR METER/Rdc:CH16502, Agilent33420A MICRO OHMMETER.
Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
Saturation Current (Isat) will cause L0 to drop approximately 25%
The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
Operating Temperature: -40℃ - +105℃.
Storage Temperature: -40℃ - +105℃.

Note: Product specifications can be customized.
