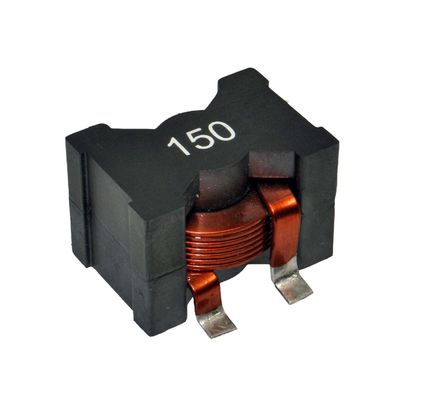

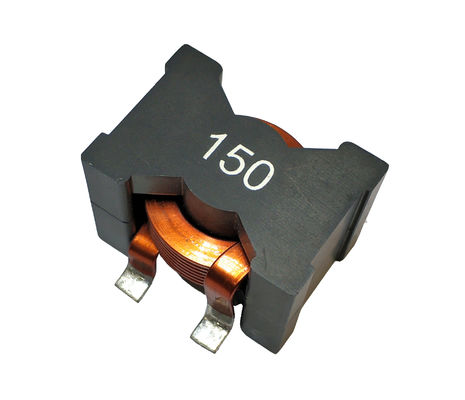

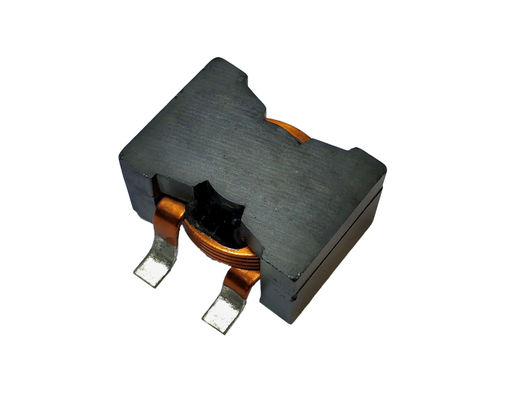

Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V

Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V
Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V

Large Image :  Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SPQ2618
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Inductance Range: 3.3uH To 33uH Tolerance: ±10%,±20%
Test Frequency: 100KHz,1V Current: Up To 93.6A
Wire: Flat Copper Wire Operating Temperature: -40℃ - +105℃
High Light:

high current inductors chokes

,

smd power choke

SPQ2618 Series Flat wire, Low Profile, Low DCR,High Current Inductor Excellent Thermal Stability



ELECTRICAL SPECIFICATIONS​:

  • Inductance range:  3.3uH to 33uH
  • Super Larg Current up to 93.6A
  • Inductance Testing: HP4284A, 100kHz/1V or equivalent
  • RDC:QuadTech 1880 Milliohmmeter
  • Isat Current L value drop 65% typ.at IDC against its initial value
  • Irms Temperature rise 40℃Max Reference Ambient temperature
  • Solderability: 75% of the lead wire Shall be covered
  • Soldering Methods: Wave,Reflow
  • Operating Temperature:-40℃ to +105℃
  • Storage Temperature: -55℃ to +125℃
  • Terminal bending strength:24.5N Min
  • Moisture resistance: △L/L≤±10% △Q/Q≤±25%


FEATURES:
  • High Frequency Design
  • Shielded Constrution
  • Flat wire used
  • Excellent Thermal Stability
  • Low Profile, Low DCR.
  • Custom Inductors are available



APPLCATIONS:

  • Notebook, DC/DC Converters
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions
  • Network Systems
  • Computer Peripheral Equipment
  • CPU Power Supply

Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V 0





Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability 100KHz 1V 1





Note: Product specifications can be customized.
