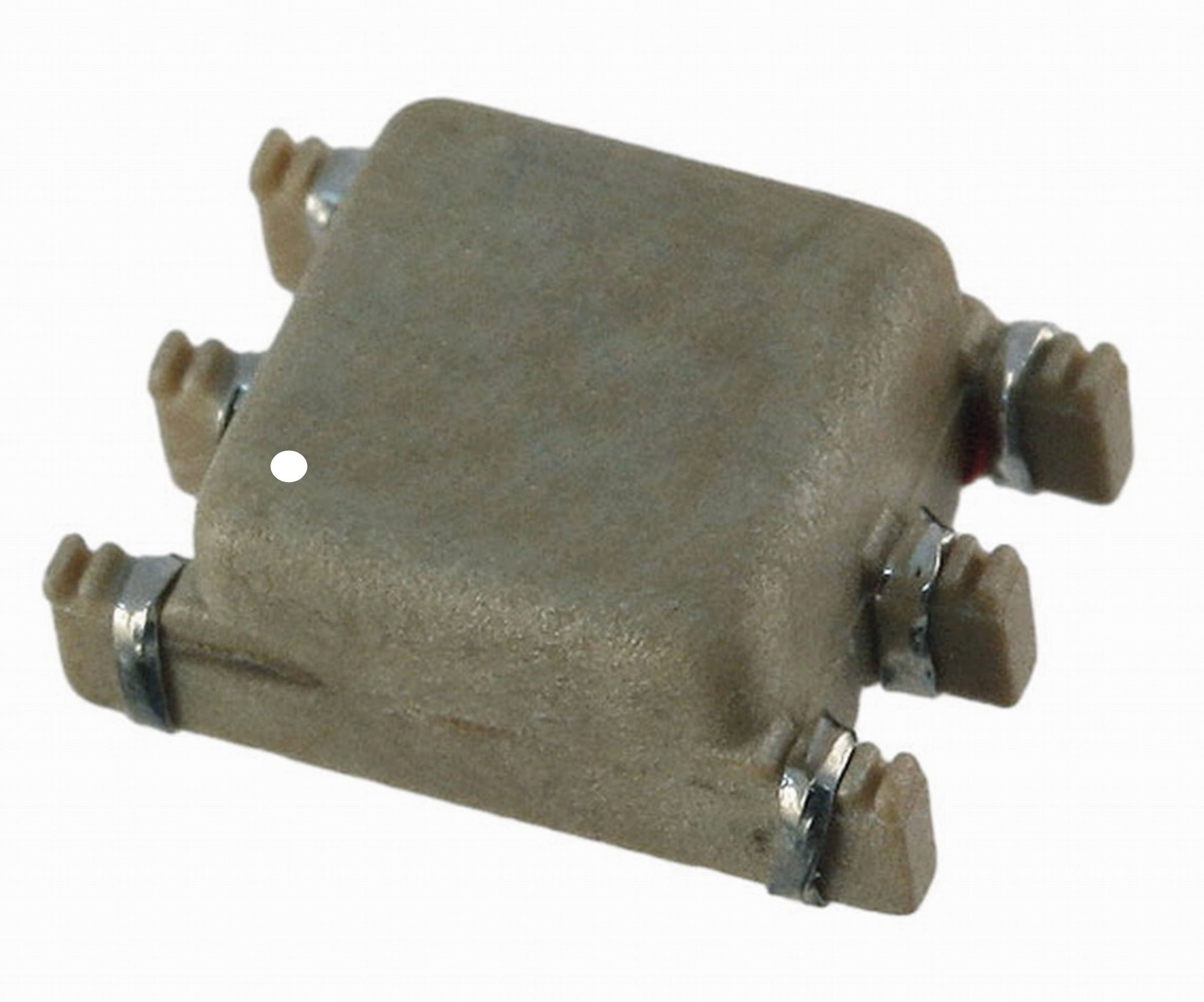

SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging

SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging
SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging

Large Image :  SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SF0903
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Working Frequency: High Frequency Inductance: 20uH~47uH
Turns Ratio: 1:1 Type: SMD Common Mode Choke Coil
Specification: RoHS/SGS/UL/ISO9001 Packaging Form: Carton
High Light:

common mode toroidal chokes

,

common mode power line choke



SF Series Toroidal Double Wire Common Mode Choke Coil Inductor with Case



ELECTRICAL SPECIFICATION:

  • Turns ratio: 1:1
  • L: 20uH~47uH@10KHz,0.1V
  • DCR: 0.4Ω Max
  • Current:  0.3A





FEATURES:

  • Storage temperature: -40 to +85°C
  • Operating temperature: -40 to +125°C
  • SMD common-mode choke coil
  • Toroidal common-mode inductor
  • Suitable for reflow soldering
  • Ferrite core toroid choke coils
  • Large-current choke coils
  • Low resistance choke coils
  • Wide variety of inductor sizes and current ratings are available
  • Lead free products, RoHS compliant.​



TECHNICAL INFORMATION:

  • IDC: Temp. rise 40℃ Max
  • lnductance test: HP4284A 10KHz 0.1V
  • RDC:QuadTech 1880 Milliohmmeter
  • Solder methods: Vapor Phase, Infrared Reflow
  • ResistanAe to soldering heat:260℃ for 10 seconds
  • Solvent resistance: Conforms to MIL-STD-202E

SF Series Common Mode Inductor 20uH - 47uH Inductance With Carton Packaging 0


Note: Product specifications can be customized.
