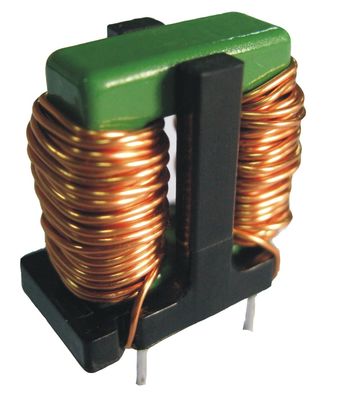

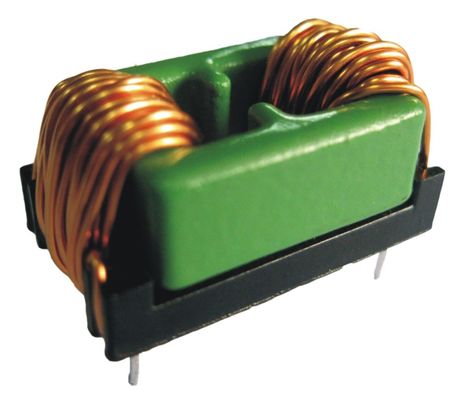

Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance

Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance
Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance

Large Image :  Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LFT1214/1418/1720
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Working Frequency: High Frequency Rated Voltage: 250V
Model: Common Mode Structure Of Magnetizer: Ferrite Coil
Inductance Range: 1mH To 68mH Hi-Pot: 1500Vac,2s
High Light:

common mode toroidal chokes

,

common mode power line choke

Customized AC Line Filter Choke, High Inductance, Low Magnetic Flux Leakage,Common mode inductor



Features:

  • High inductance with low resistance
  • Excellent differential-mode suppression
  • High pulse-handling capability
  • Industry best inductance/rated current atio
  • Suitable for wave soldering
  • Design complies with EN 60938-2(VDE 0565-2)
  • Height 16 mm
  • Clearance and creepage distances 3mm Min
  • RoHS-compatible



Application:

  • Electronic ballasts for lamps
  • High power switch-mode power suppliesfor consumer electronics
  • Current compensated double choke
  • Closed magnetic circuit with frame construction



TECHNICAL INFORMATION

  • Rated voltage: 250VAC max@40℃
  • Insulation voltage: 1500VAC,2S(line-line)
  • Storage Temperature: -40℃ to +40℃
  • Solder methods: Vapor Phase, Infrared Reflow
  • Resistance to soldering heat:260℃ for 10 seconds





Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance 0

Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance 1

Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance 2

Customized Ac Line Filter Choke High Inductance 250v Rated Voltage 1mh - 68mh Inductance 3
