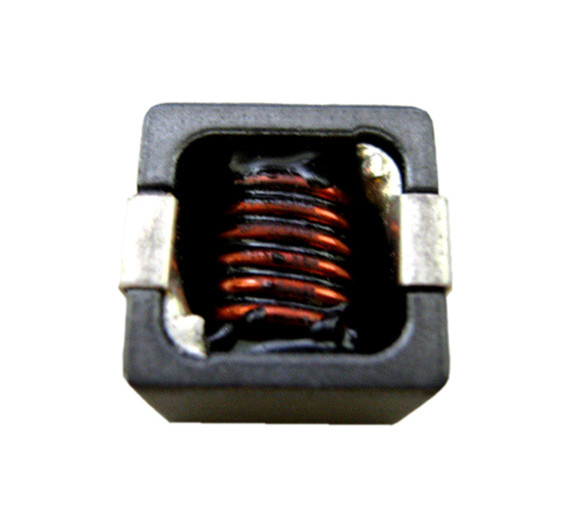

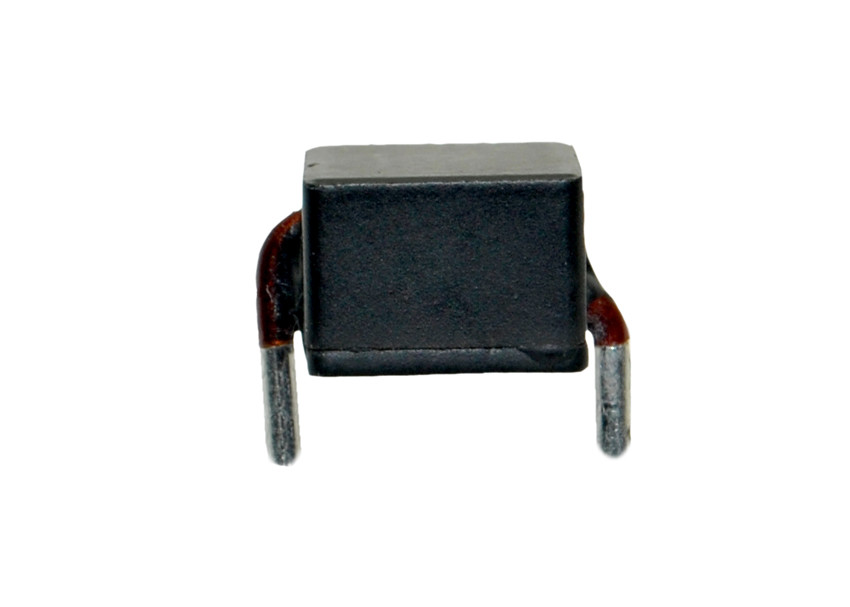

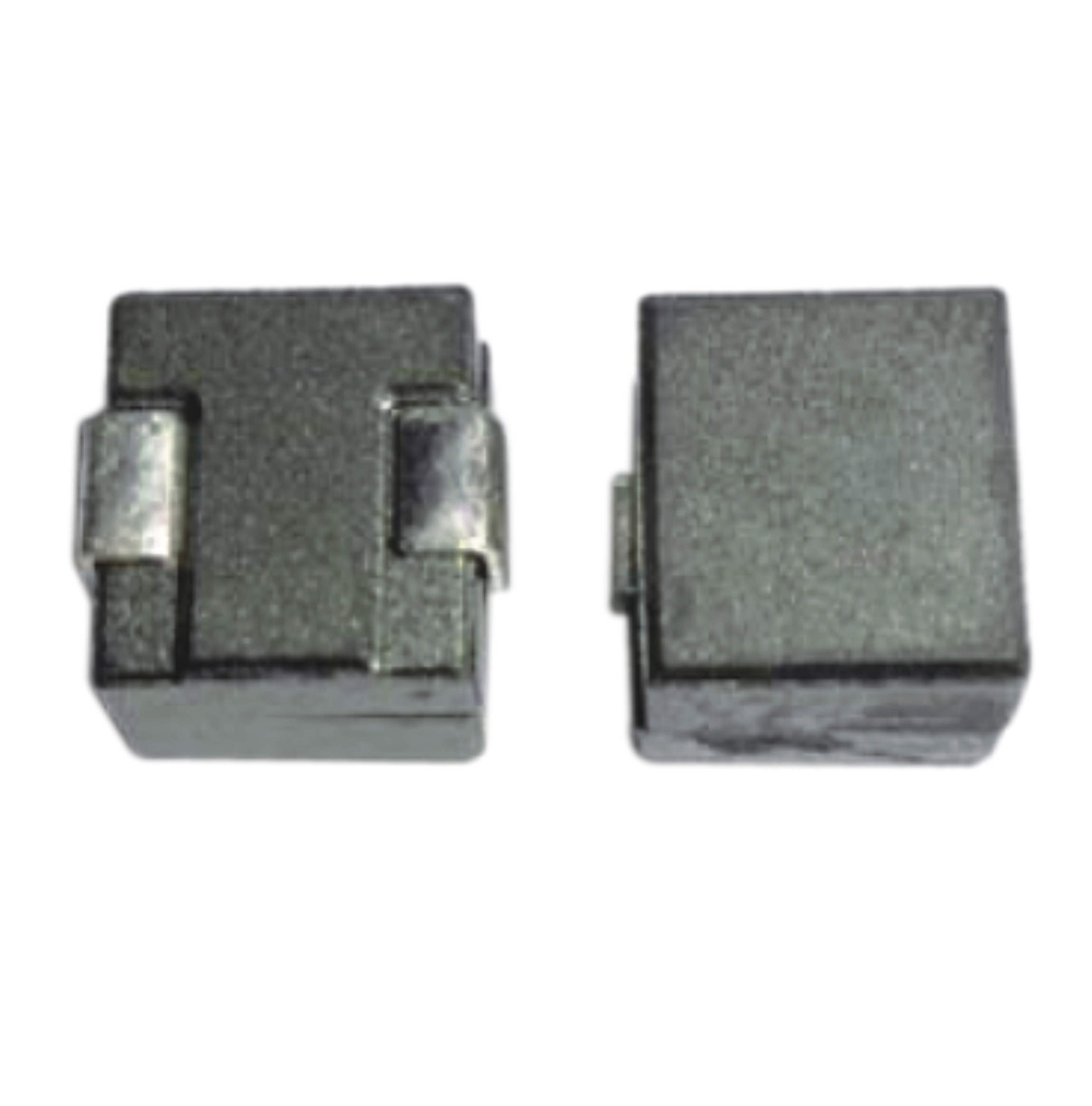

Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range

Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range
Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range

Large Image :  Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HR Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Structure: Shielded Installation: SMT
Inductor Value: Fixed Inductor Operating Temperature: -40℃ - +125℃
Storage Temperature: -40℃ - +125℃ Inductance Range: 0.22uH To 10uH
High Light:

high current inductors chokes

,

smd power choke

HR Series high current power inductors,Surface Mount choke coil,SMD inductor​



FEATURES:

  • High current and Low DCR
  • Low profile for machine placement
  • Minimize electromagnetic interference
  • Prevent EMI effect via precise impedance
  • Custom design available



TEST EQUIPMEN AND CONDITIONS:

  • All test Data is referenced to 25℃ambient.
  • Testing Instrument: L: HP4192A, CH1302, CH3320, CH3320S LCR METER / Ddc:
  • Agilent33420A Micro OHMMETER.
  • Test condition: 100KHz,0.1V
  • Irms will cause the coil temperature rise ApproximatelyΔT=40℃ without core loss.
  • Isat will cause L0 to drop approximately 30%.
  • The part temperature (ambient + temp rise) should not exceed 125℃ under worst
  • case operating conditions.
  • Operating Temperature & Storage Temperature: -25℃ - +125℃.



Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range 0

Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range 1

Note: Product specifications can be customized.
