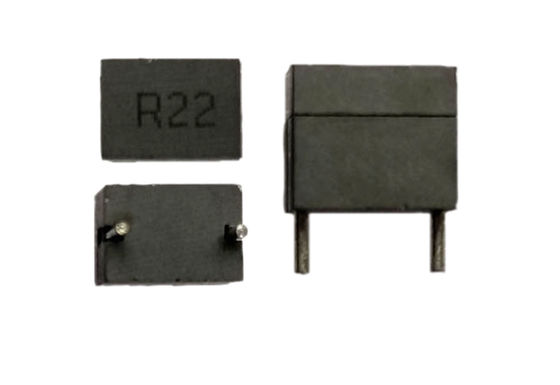

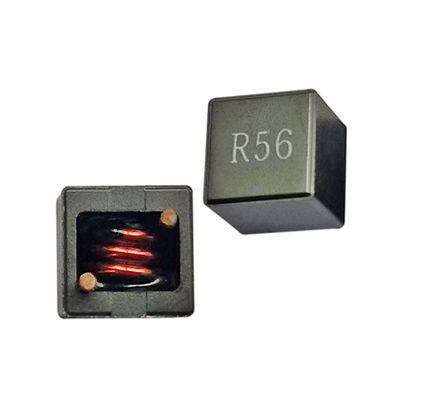

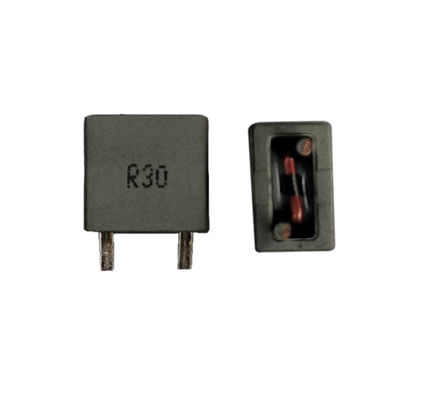

Dip Installation Shielded Power Inductor Low Noise High Current Fixed Inductor

Negotiation
MOQ
Negotiation
Price
Dip Installation Shielded Power Inductor Low Noise High Current Fixed Inductor
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: Shielded
Installation: Dip
Inductor Value: Fixed Inductor
Operating Temperature: -40℃ - +105℃
Storage Temperature: -40℃ - +105℃
Inductance Range: 0.22uH To 4.7uH
Highlight:

high current inductors chokes

,

smd power choke
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HR Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

HR Series Shielded Power Inductor Low Noise High Current Fixed Inductor



FEATURES:

  • High current and Low DCR
  • Low profile for machine placement
  • Minimize electromagnetic interference
  • Prevent EMI effect via precise impedance
  • Custom design available



TEST EQUIPMEN AND CONDITIONS:

  • All test Data is referenced to 25℃ambient.
  • Testing Instrument: L: HP4192A, CH1302, CH3320, CH3320S LCR METER / Ddc:
  • Agilent33420A Micro OHMMETER.
  • Test condition: 100KHz,0.1V
  • Irms will cause the coil temperature rise ApproximatelyΔT=40℃ without core loss.
  • Isat will cause L0 to drop approximately 30%.
  • The part temperature (ambient + temp rise) should not exceed 125℃ under worst
  • case operating conditions.
  • Operating Temperature & Storage Temperature: -25℃ - +125℃.



Note: Product specifications can be customized.
