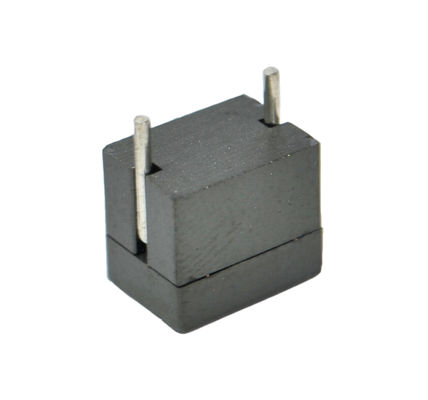

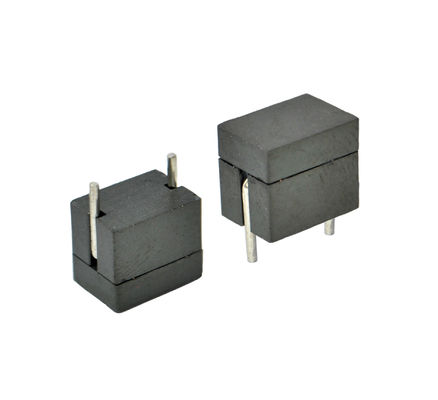

310nH 80A Ferrite Dip High Current Power Inductors

HCB0704 Series high current power inductors,SMD power inductors,Current range 14A-35A

FEATURES:

• Current Rating:up to 80Apk
• Inductance Range: 0.14μH to 0.31μH
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• Compliant to RoHS directive 2002/95/EC
• The rated current listed is the lower of the saturation current @25℃ or the heating current.
• Test Frequency : 100KHz / 1Vdc
• Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
• Saturation Current (Isat) will cause L0 to drop approximately 20%
• The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB
• trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end
• application.
• Operating Temperature & Storage Temperature: -40℃ - +125℃.

APPLCATIONS:

• PDA/notebook/desktop/server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array (FPGA)

Note: Product specifications can be customized.
