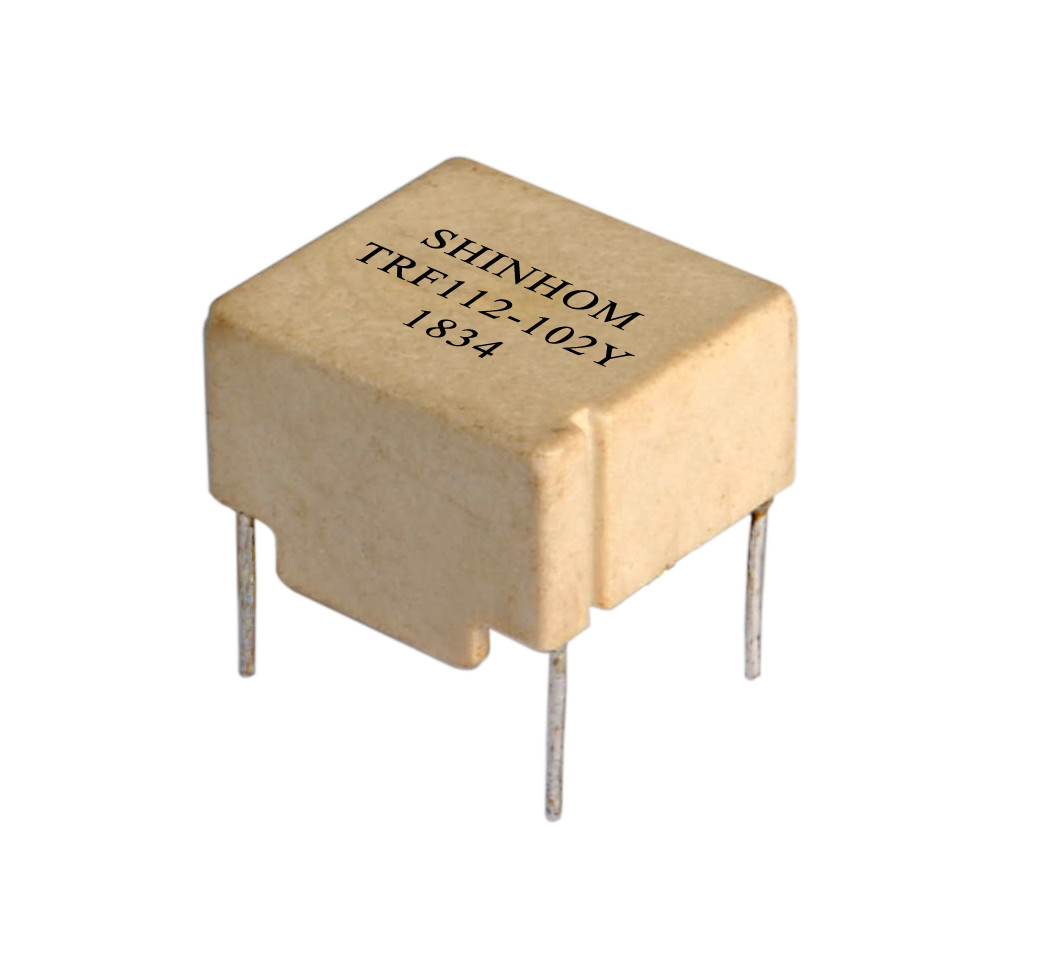

Through Hole Current Compensated Common Mode Choke

Through Hole Current Compensated Common Mode Choke
Through Hole Current Compensated Common Mode Choke

Large Image :  Through Hole Current Compensated Common Mode Choke Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Winding: Common Mode Current: 0.2A~2A
Inductance Range: 1.1mH~68mH Nature Of Operation: Choke Coil
Specification: RoHS, ISO9001 Test Frequency: 1.0KHz
High Light:

Toroidal Common Mode Choke

,

Through Hole Current Compensated Chokes

,

2A Common Mode Choke

Toroidal Common Mode Choke,Through hole current compensated chokes,Common mode inductor





Technical information:

  • Inductance Testing: 1.0KHz 0.1V HP4284A
  • Test conditions of Electrical Properties: +25℃, 33% RH if not specified differently
  • Temperature Rise 55℃ Max
  • It is recommended that the temperature of the component does not exceed +125℃ under worst case conditions
  • Operating temperature: -40℃ to +125℃
  • Storage Temperature: -20℃℃ to +60℃
  • Acceptable customers design custom





Features:

  • 0.2A to 2A ratings
  • 1.1mH to 68mH dual chokes
  • Excellent Mechanical Strength
  • High Reliability and variant PCB-mount housing
  • Low resistance and temperature rise


Application:

  • DC/DC, AC/DC line noise suppression
  • Communication System
  • Automotive Systems
  • LCD/PDPTelevisions
  • Computer Peripheral Equipment



Through Hole Current Compensated Common Mode Choke 0

Product specifications can be customized

Through Hole Current Compensated Common Mode Choke 1
