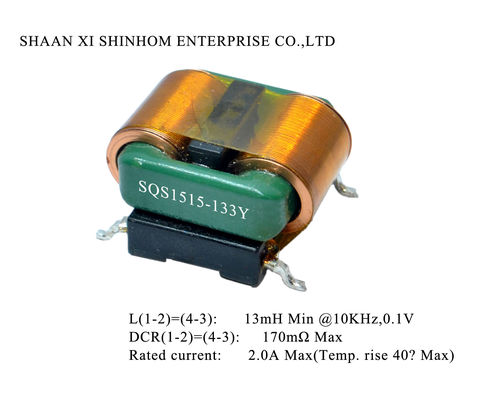

RoHS 250V Horizontal SMD Filters Common Mode Choke

RoHS 250V Horizontal SMD Filters Common Mode Choke
RoHS 250V Horizontal SMD Filters Common Mode Choke

Large Image :  RoHS 250V Horizontal SMD Filters Common Mode Choke Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SQS1515
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Installation: SMD Mode: Common Mode Choke
Core: Ferrite Hollow Square Custom: YES
Winding Process: Horizontal Operating Temperature: -25ºC To +105ºC
High Light:

SMD Filters Common Mode Choke

,

250V Common Mode Choke

,

Horizontal Common Mode Choke

High Frequency Choke , Flat wire inductors , high current common mode chokes Coil , SMD Inductor , SMD Filter





FEATURES:

  • L(1-2)=(4-3): 13mH Min @1.0KHz,0.25V
  • DCR(1-2)=(4-3): 170mΩ Max
  • Rated current: 2.0A Max(Temp. rise 40℃ Max)
  • Rated voltage: 250V Max
  • Hi-Pot: 1500Vac,3mA,3S Coil to Coil
  • Operating temperature: -25℃ to +105℃
  • Storage temperature: -25℃ to +85℃
  • EMI suppression is excellent
  • Replacement for: EE16,EE19,EE25,EF16,EF20,EF25,UU10.5, UU16,toroidal common mode inductors
  • High current, small profile, high efficiency with High frequency skin effect of flat wire, unit current density can reach 1.5-2 times of round copper wire, and the volume will be 0.5-1.0 times smaller under the same condition
  • Lower temperature coefficient, only around once layer winding, perfect efficiency of heat sink , the temperature raise is much lower than the toroidal inductor
  • Interturn capacitance is smaller than toroidal core, high insulation strength and high reliability
  • Single phase winding, thereby dramatically reduce stray capacitance



APPLICATION:

  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers
  • Personal Computer
  • Switching power supply, Adapter and UPS
  • Computer products
  • LED power supply



Electrical parameters

Specification Inductance
MIN
1KHZ 0.25V
Current(A)
MAX
SQS1515 >13mH 2.0

SQS1515

>15mH 1.5
SQS1515 >20mH 1.2
SQS1515 >25mH 1.2
SQS1515 >15mH 1.5
SQS1515 >20mH 1.2
SQS1515 >25mH 1.2





Measuring instrument



     RoHS 250V Horizontal SMD Filters Common Mode Choke 0





      RoHS 250V Horizontal SMD Filters Common Mode Choke 1





      RoHS 250V Horizontal SMD Filters Common Mode Choke 2



Notes: Customized is available

RoHS 250V Horizontal SMD Filters Common Mode Choke 3
