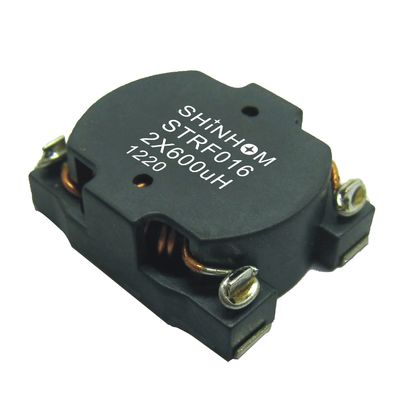

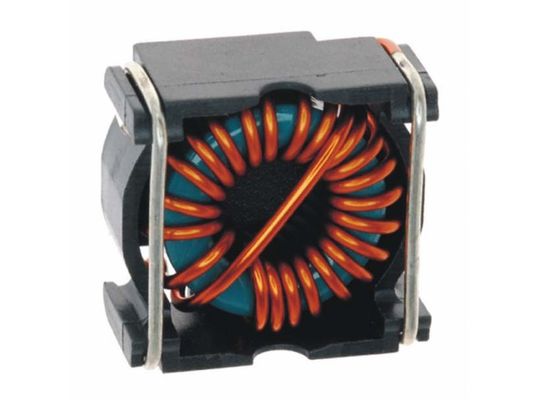

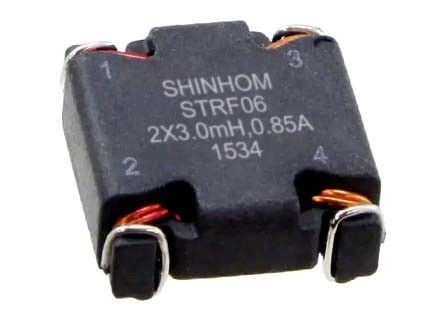

SMD Type Common Mode Inductor Ferrite Toroidal Inductors

STRF01 Series high current SMD Type Common Mode Inductor , Coil Filter , Ferrite Toroidal Inductors

FEATURES:

• Inductance L1, L2 range: 650uH to 1500uH
• RMS dielectric strength: 1,000V
• Current: 1to 3.6A
• Pulse SMT common mode chokes
• Tested at 100KHZ, 0.1 VRMS
• Tolerance: ± 20%
• Temperature rise: 45°C maximum at rated current
• Storage temperature: -25 to +85°C
• Operating temperature: -20 to +125°C
• Common-mode filter
• Toroidal common-mode inductor
• Low profile and small size SMD
• Suitable for reflow soldering
• RID common-mode choke coils
• Ferrite core toroid choke coils
• Large-current choke coils
• Low resistance choke coils
• For excellent EMI suppressor
• High frequency and low loss common-mode
• High-energy storage
• Resistance to solder heat: 260°C, 10 seconds
• Ferrite core CMC toroid choke coils
• Ideal for excellent EMI suppressor
• Wide variety of inductor sizes and current ratings are available
• Lead free products, RoHS compliant.

COMMON APPLICATIONS:

• Electronics Appliances
• Input Filter (Series Mode)
• EMI/RFI Suppression
• Desktops,Laptops,DSC and computer peripheral
• LCD display
• Telecommunication Equipment
• Power equipment /Digital products /Scanner.....

TECHNICAL INFORMATION:

• RDC:QuadTech 1880 Milliohmmeter
• Solder methods: Vapor Phase, Infrared Reflow
• Resistance to soldering heat:260℃ for 10 seconds
• Solvent resistance: Conforms to MIL-STD-202E
• Weight------------------1.5grams TYP
• Tape & Reel--------------700/reel

More sizes to choose from
