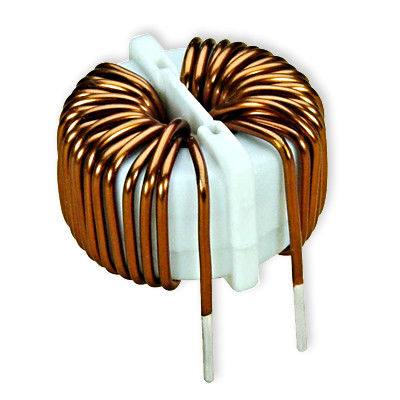

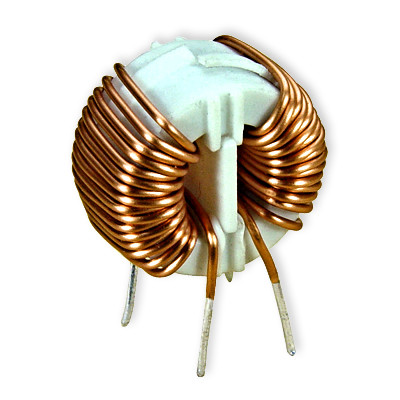

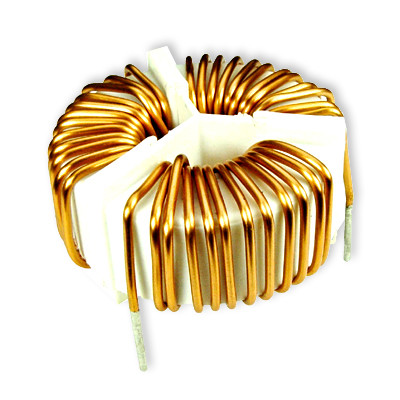

Three Winding Common Mode Choke Coil Toroidal Choke Coil 100KHz

Three Winding Common Mode Choke Coil Toroidal Choke Coil 100KHz
Three Winding Common Mode Choke Coil Toroidal Choke Coil 100KHz Three Winding Common Mode Choke Coil Toroidal Choke Coil 100KHz Three Winding Common Mode Choke Coil Toroidal Choke Coil 100KHz

Large Image :  Three Winding Common Mode Choke Coil Toroidal Choke Coil 100KHz Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF-3W
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Name: Toroid Inductor Winding: Three Windings
Test Frequency: 100KHz Current: Up To 22A
Application: Noise Suppression Specification: RoHS, ISO9001
High Light:

Three Winding Common Mode Choke Coil

,

Toroidal Choke Coil

,

100KHz Common Mode Choke Coil

Three Winding Common Mode Choke Coil , Toroidal Inductor



Features:

  1. 4.5A to 22A ratings
  2. 1.2mH to 10mH dual chokes
  3. 100KHz to 3MHz common mode resonance
  4. Max operating voltage:250V at 40℃
  5. Hi-Pot 2500Vac winding to winding 3S.
  6. Excellent Mechanical Strength
  7. High Reliability and variant PCB-mount housing
  8. Low resistance and temperature rise
  9. Operating temperature: -40℃ to +105℃
  10. Storage Temperature: -40℃ to +105℃


Application:

  1. DC/DC, AC/DC line noise suppression
  2. Communication System
  3. Automotive Systems
  4. LCD/PDPTelevisions
  5. Computer Peripheral Equipment It accord with the standards of FCC VCCI CISPR FTZ,etc, eliminating of electromagnetic noise of power and signal circuit.





Packaging & Shipping



1.About price:
Our products are all custom-made products. So the network prices only for reference,different materials,processes and order quantities determine the final price.
2.About sample & shipment:
You are welcome to get samples before ordering.We provide free samples in 3-7 days. But customers should pay for the shipping cost by DHL/Fedex/UPS.
3.About product:
In general, we will design according to the parameters of physical objects provided by the customer. We are also optimized the design for our customers from a professional perspective. Please communicate fully with our sales.
