| Name: | Common Mode Filter | Type: | Common Mode Inductor |
|---|---|---|---|
| Test Frequency: | 100KHz | Core Material: | Ferrite |
| Application: | Noise Suppression | Specification: | RoHS, ISO9001 |
| High Light: | EMI Filter Common Mode Inductors,100KHz Common Mode Inductors,Ferrite Core Common Mode Inductors |
||
Common mode inductors , EMI Filter , Common monde filter

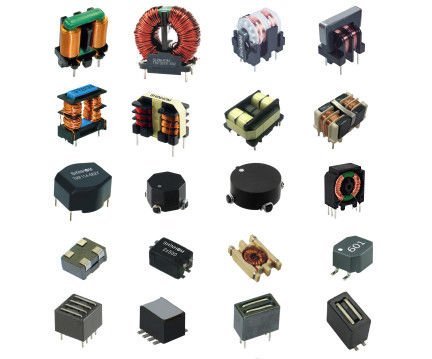

Common mode inductors (common mode chokes) are commonly used in switching power supplies of computers to filter common mode electromagnetic interference signals.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
Application:
| Item Name | EMI/EMC Common Mode Choke/Inductor |
| Components | Ferrite core, Copper wire; Basing; Shielding case |
| Wire | Enameled copper wire |
| Functions | Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc |
| Mounting type | Surface mount ; Through hole ; Wire lead |
| Shape Types | Vertical;Horizontal; with/without base; shielded/unshielded ; SMD |
| Coil Structure | Toroidal |
| Working Frequency Range | 1KHZ-100MHZ |
| Inductance Range | 1uH-1H |
| DCR Range | Depend on customers' request |
| Storage Temperature | -20ºC to +85ºC |
| Working Temperature | -20ºC to +105ºC |
| Storage Humidity | 30% to 95% |
| Test Items |
|
| Certifications | ISO9001:2008, ISO14001:2008, |
| OEM | Acceptable |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Feature | High current High power High efficiency Low temperature rise Stable performance |
| Applications | 1. VCRS, Copy machine , Audio equipment , Game machines 2. TV sets, Microcomputer equipment, printers, Terminals 3. communications control equipment 4.Switching power supply, chargers, alarm system 5. UPS, VCD/DVD players, audio and visual equipment 6. OA machines, inverters, chargers, alarm system |
Notes:
1.About price:
Our products are all custom-made products. So the network prices only for reference,different materials,processes and order quantities determine the final price.
2.About sample & shipment:
You are welcome to get samples before ordering.We provide free samples in 3-7 days. But customers should pay for the shipping cost by DHL/Fedex/UPS.
3.About product:
In general, we will design according to the parameters of physical objects provided by the customer. We are also optimized the design for our customers from a professional perspective. Please communicate fully with our sales.
