| Wire: | Enameled Wire | Turns Ratio: | 1:1 |
|---|---|---|---|
| Core: | Ferrite Core | Test Frequency: | 10kHz |
| Type: | EMI Filter | Operating Temperature: | -40ºC To +125ºC |
| High Light: | Ferrite Core Toroidal Choke Coil,Enameled Wire Toroidal Choke Coil,Audio Equipment Toroidal Choke Coil |
||

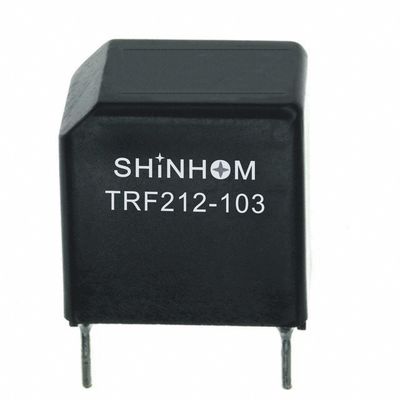

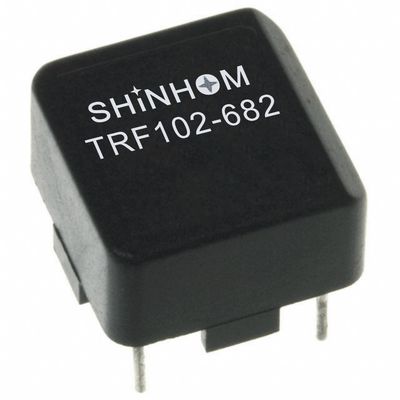

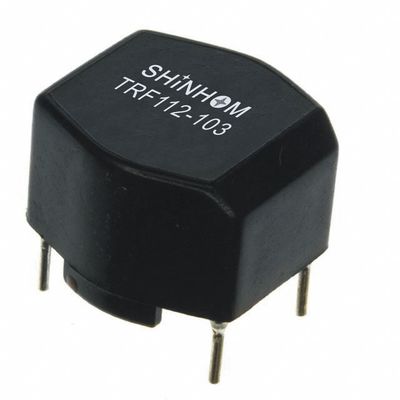

Ferrite core inductor , toroidal common mode choke coil , toroidal inductor for switch power supply
Common mode Choke, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
| Components | Ferrite core, Copper wire; Plastic case |
| Wire | Enameled copper wire-UEW/PEW |
| Functions | Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc |
| Coil Structure | Toroidal |
| Working Frequency Range | 1KHZ-100MHZ |
| Inductance Range | 1uH-100mH |
| Storage Temperature | -20℃ to +85℃ |
| Working Temperature | -20℃ to +125℃ |
| Test Items | Ø Turns Ratio Ø Inductance Ø DC resistance test Ø Safety test Ø Current test Ø Hi-POT |
| Certifications | ISO9001:2008, ISO14001:2008, UL, CQC |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Feature | Low DCR common mode High current High power High efficiency Low temperature rise Stable performance |
| Applications |
1. VCRS, Copy machine , Audio equipment , Game machines |
Notes: Customized is available
