Product Details:
Payment & Shipping Terms:
|
| Frequency: | 50/60Hz | Application: | Audio Frequency Transformer |
|---|---|---|---|
| Insulation: | UL Insulation System For Class B (130), F (155), H (180) | Product Name: | Low Frequency Transformer |
| Certification: | ISO9001-2000, UL, ISO9001, CCC, CE | Operating Temperature: | -25℃to+125℃ |
| High Light: | 1.1VA Audio Toroidal Transformer,230V Audio Frequency Transformer,UL Insulation Linear Power Transformer |
||

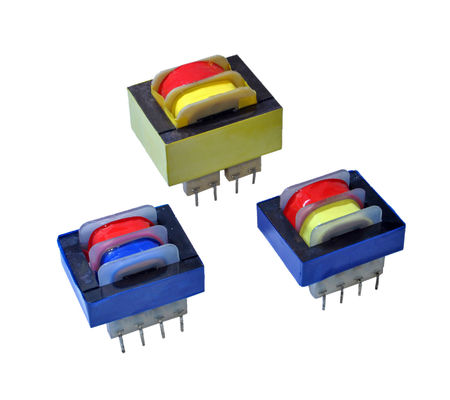

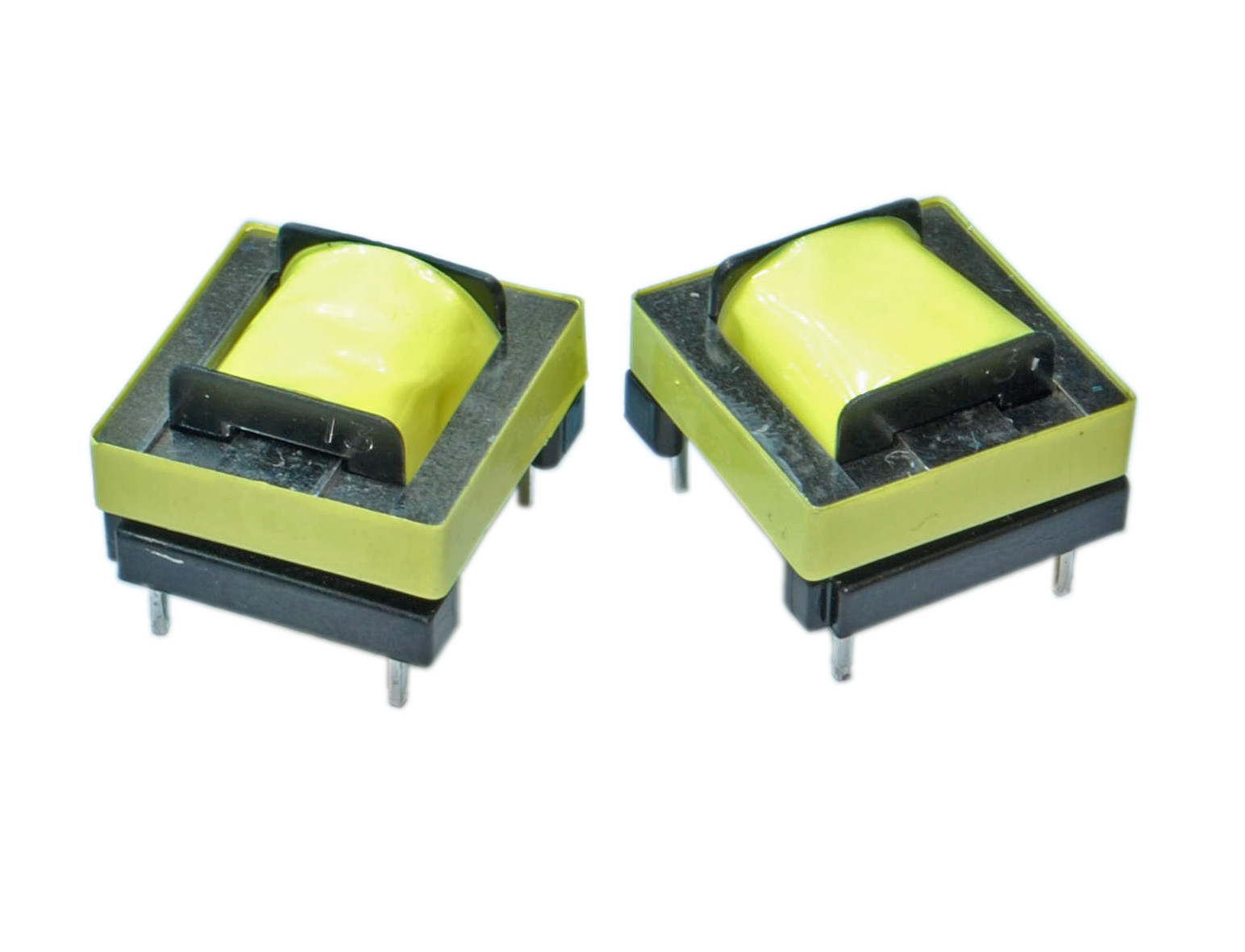

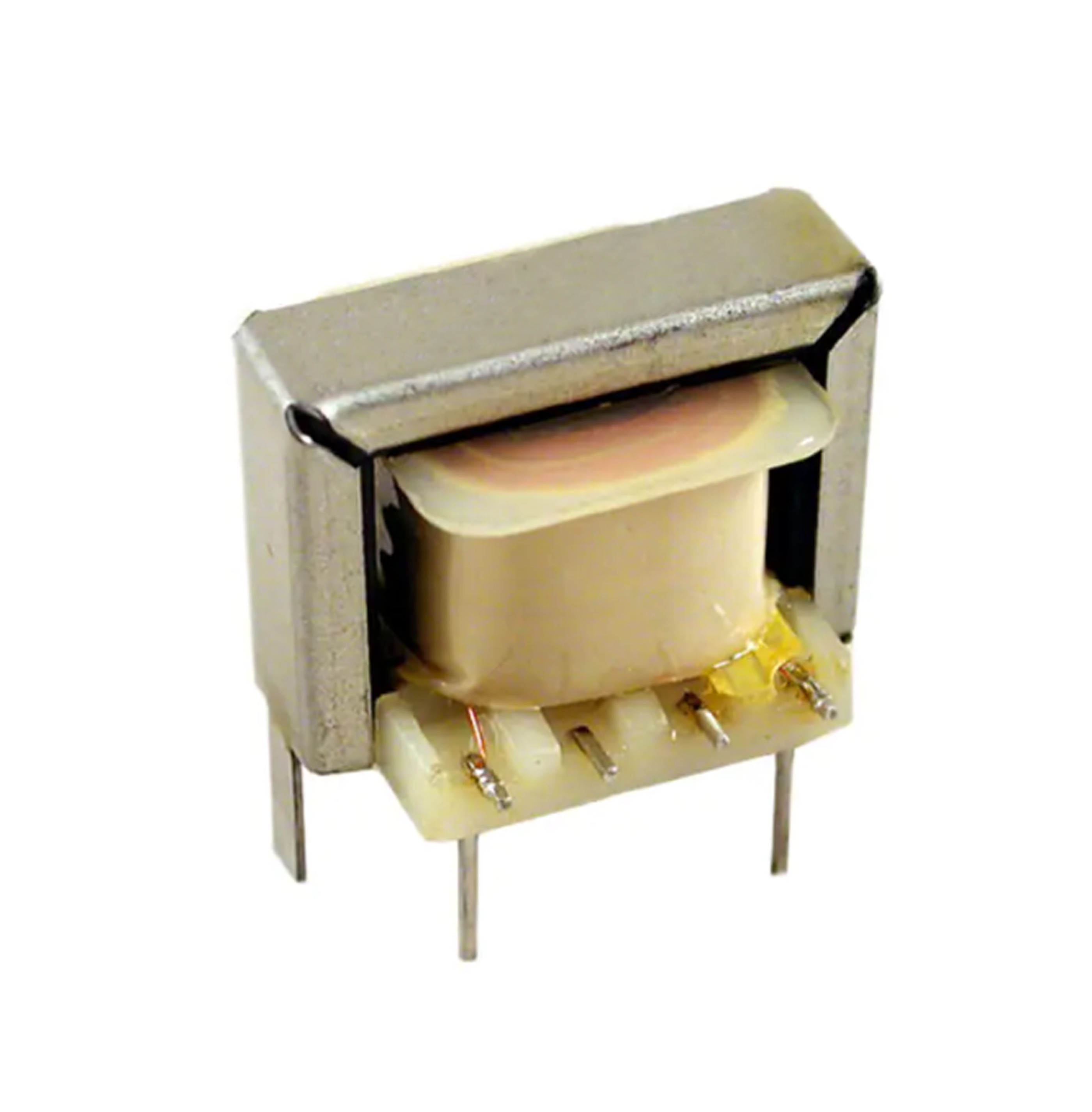

Audio Output Transformer , Low Frequency Transformer, Audio Signal Transformer
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 53Ohm |
| Transformer Type | Economical Open Type |
| Frequency Range | 200Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 1500V |
| Insertion Loss | 0.5dB |
| Power Level | 1000mW |
| Operating Temperature | -20°C ~ 85°C |
ABOUT US:
Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
