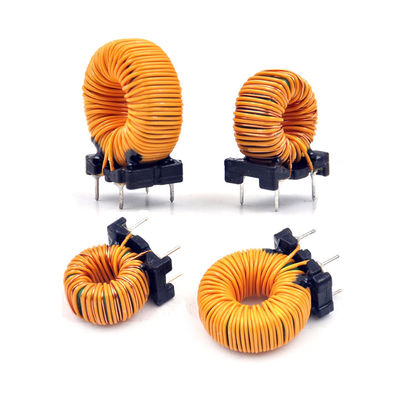

Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire

Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire
Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire

Large Image :  Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Wire: Triple Insulated Wire Turns Ratio: 1:1
Core: Ferrite Core Test Frequency: 10kHz
Type: EMI Filter Operating Temperature: -40ºC To +125ºC
High Light:

Coil Filter Toroidal Power Inductor

,

Triple Insulated Wire Common Mode Choke

,

Toroidal Power Inductor 10kHz

Coil Filter , Toroidal Common Mode Choke With Triple Insulated Wire



FEATURES:

  • Custom-made Common mode choke coils for your special application
  • Rated voltage: 80Vac
  • Hi-Pot: 1500Vac,50Hz,5mA,2S
  • Operating temperature: -40℃ to +85℃
  • Through hole and SMD common-mode choke coil are available
  • CMC choke coils inductance 1mH up to 100mH, Rated current up to 200A
  • Common-mode filter
  • Toroidal common-mode inductor
  • Suitable for reflow soldering
  • RID common-mode choke coils
  • Small-profile choke coils
  • Ferrite core toroid choke coils
  • Large-current choke coils
  • Low resistance choke coils
  • For excellent EMI suppressor
  • Low DCR common mode
  • High frequency and low loss common-mode
  • High-energy storage
  • Resistance to solder heat: 260°C, 10 seconds
  • Ferrite core CMC toroid choke coils
  • Ideal for excellent EMI suppressor
  • With common mode filter
  • Wide variety of inductor sizes and current ratings are available
  • Lead free products, RoHS compliant.





Product introduction
Product Name
Toroidal Inductor
Core
 Ferrite Core , Iron Core
Certification
UL,SGS-ROHS, REACH,ISO9001,ISO14001,VDE
Packing
Standard Export packageing by Pearl cotton, molded paper sheet, plastic trays,shrink wrap, or as customer's request.
Sample
1~10 pcs of free samples as per detailed project
Application
Switching regulator inductor,line noise filters,pulse and fly-back transformer,choke coil.



Notes: Customized is available

Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire 0

Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire 1

Coil Filter Toroidal Power Inductor 10kHz With Triple Insulated Wire 2
