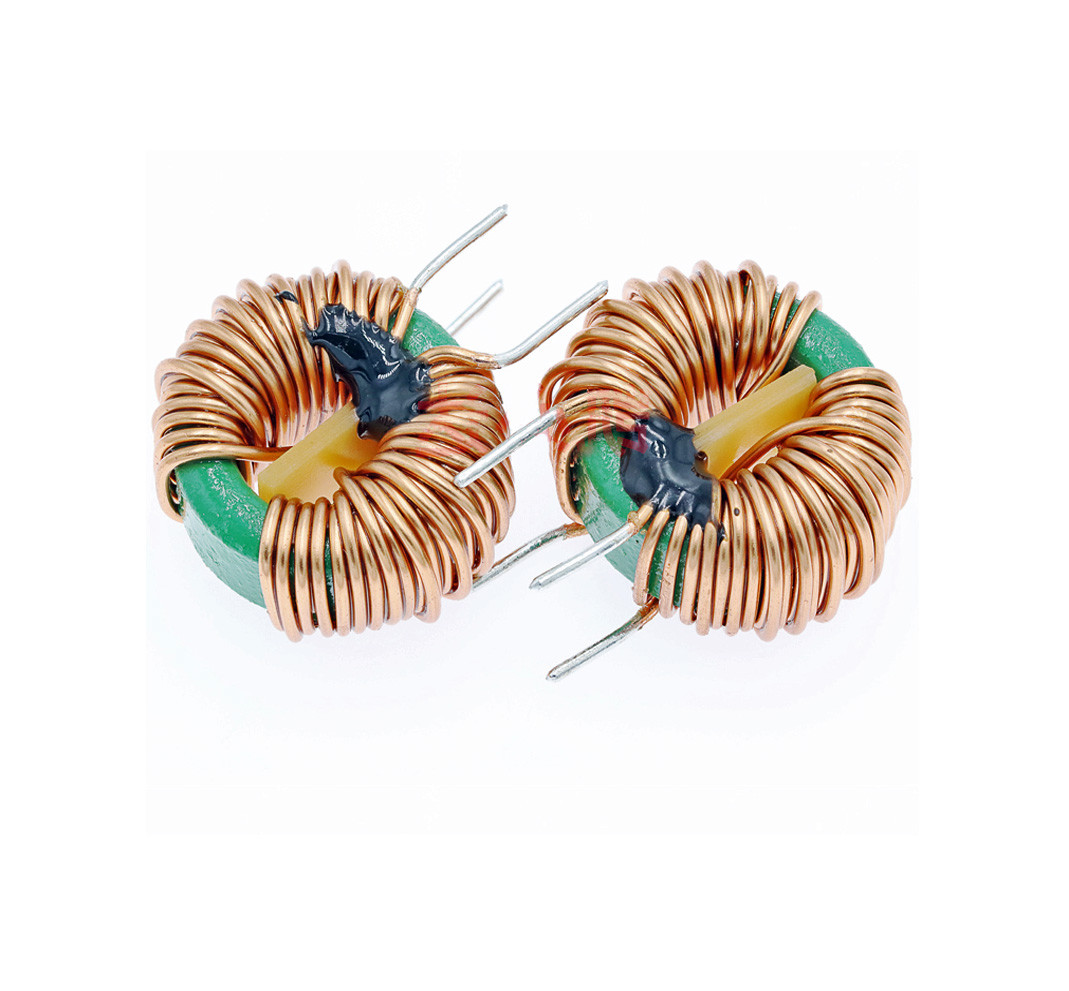

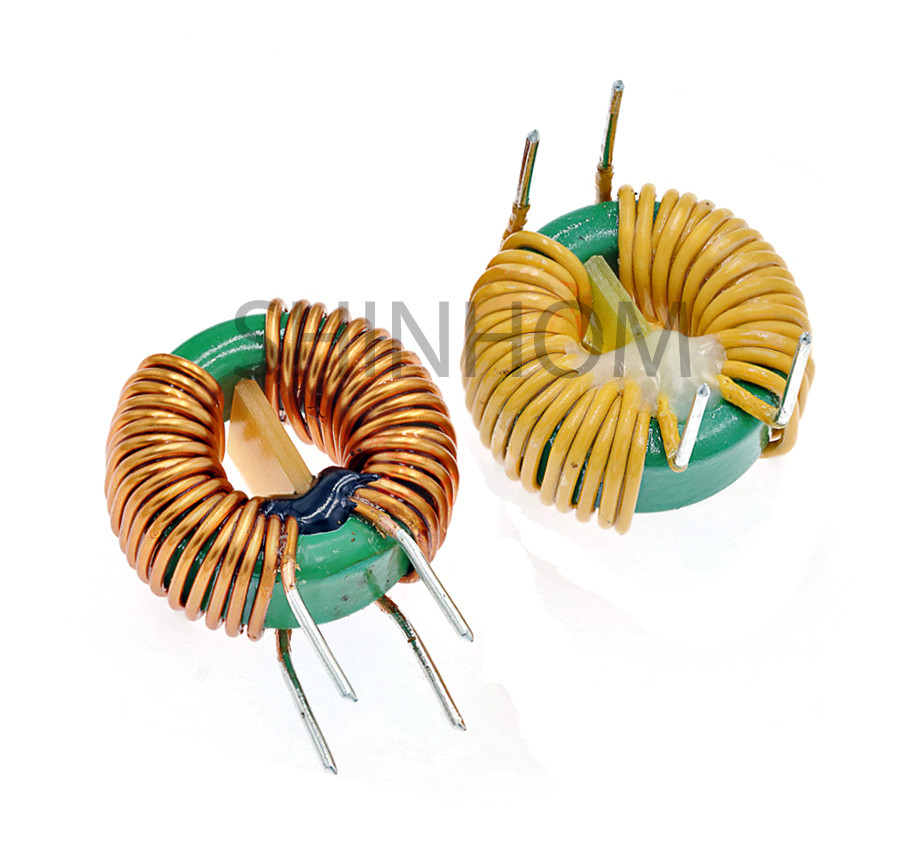

Triple Insulated Wire Common Mode Choke For EMI Suppression

Triple Insulated Wire Common Mode Choke For EMI Suppression
Triple Insulated Wire Common Mode Choke For EMI Suppression Triple Insulated Wire Common Mode Choke For EMI Suppression

Large Image :  Triple Insulated Wire Common Mode Choke For EMI Suppression Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Wire: Triple Insulated Wire , Enameled Wire Turns Ratio: 1:1
Core: Ferrite Core Test Frequency: 10kHz
Type: EMI Filter Operating Temperature: -40ºC To +125ºC
High Light:

Triple Insulated Common Mode Choke

,

EMI Suppression Common Mode Choke

,

Low DCR Common Mode Choke

Coil Filter , Toroidal Common Mode Choke , Common mode filter





    Common mode inductor, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers. In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
    Toroidal Inductors provide a number of advantages over other inductor varieties, which include:
Compact Size — The smaller size of Toroidal Inductors allows for excellent efficiency while maintaining top level performance. Lower Cost — With smaller sizes that use less raw materials, Toroidal Inductors are a highly economical choice.





FEATURES:

  • Custom-made Common mode choke coils for your special application
  • Operating temperature: -40℃ to +85℃
  • Common-mode filter
  • Toroidal common-mode inductor
  • Small-profile choke coils
  • Ferrite core toroid choke coils
  • Large-current choke coils
  • Low resistance choke coils
  • For excellent EMI suppressor
  • Low DCR common mode
  • Lead free products, RoHS compliant.



APPLICATIONS:
  • Electronics Appliances
  • DC-DC Conversion (Paraller Mode)
  • Isolation/ Coupling (Transformer)
  • Input Filter (Series Mode)
  • EMI/RFI Suppression
  • Desktops,Laptops,DSC and computer peripheral
  • LCD display
  • Telecommunication Equipment
  • Power equipment /Digital products /Scanner.....



Notes: Customized is available

Triple Insulated Wire Common Mode Choke For EMI Suppression 0

Triple Insulated Wire Common Mode Choke For EMI Suppression 1

Triple Insulated Wire Common Mode Choke For EMI Suppression 2
