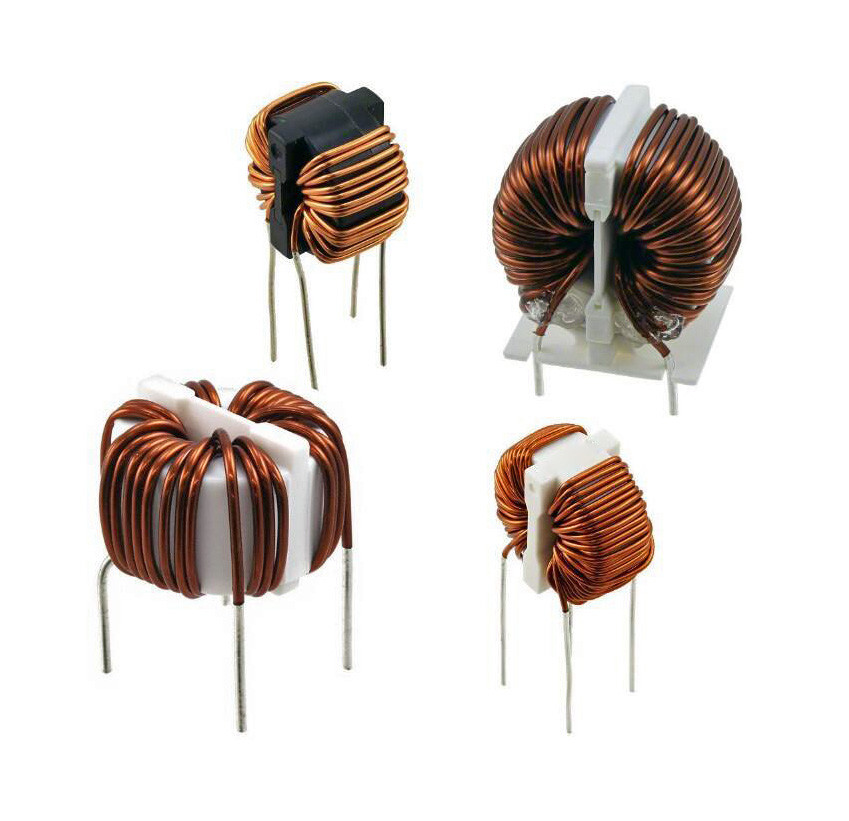

Amorphous Core Enameled Wire Common Mode Choke Broadband Suppression

Amorphous Core Enameled Wire Common Mode Choke Broadband Suppression
Amorphous Core Enameled Wire Common Mode Choke Broadband Suppression

Large Image :  Amorphous Core Enameled Wire Common Mode Choke Broadband Suppression Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Wire: Enameled Wire Turns Ratio: 1:1
Core: Amorphous Core Test Frequency: 10kHz
Type: EMI Filter Operating Temperature: -40ºC To +150ºC
High Light:

Enameled Wire Common Mode Choke

,

Amorphous Core Common Mode Choke

,

Broadband Suppression Common Mode Choke

Amorphous Core Enameled Wire Common Mode Choke , Toroidal Common Mode Inductor





Characteristics

  • Very high permeability nanocrystalline core material
  • Improved isolation through plastic case and winding spacer
  • High and stable inductance values up to 150 °C
  • High rated currents
  • Broadband suppression
  • Small size
  • Frequency range: 1 kHz-300 MHz
  • Operating temperature: -40°C to +125°C
  • Flammability corresponding to UL 94 V-0
  • Climatic category: 40/125/21





Applications

  • Power electronics
  • Power line in- and output filter
  • Radio interference suppression in motors
  • Suppression for common mode noise





Advantages

  • Excellent soldering ability and heat-resistant
  • Excellent terminal strength
  • Available in customized specifications
  • Available in various sizes
  • High reliability



Notes: Customized is available

Amorphous Core Enameled Wire Common Mode Choke Broadband Suppression 0Amorphous Core Enameled Wire Common Mode Choke Broadband Suppression 1

Tag:

common mode power line choke,

common mode toroidal chokes,

common mode inductor
