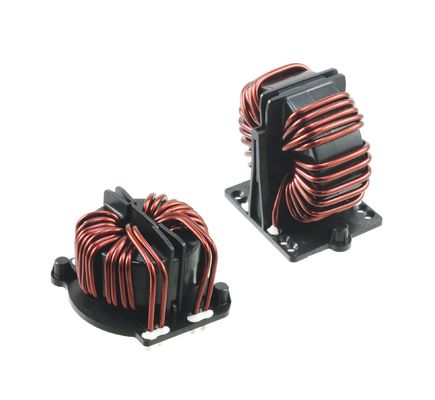

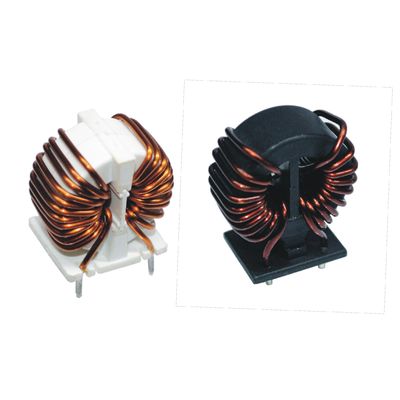

EMI Signals Common Mode Choke 10kHz Compact Size With Amorphous Core

Amorphous Core Enameled Wire Common Mode Choke , Toroidal Common Mode Inductor

       Common mode inductor, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers. In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
      Toroidal Inductors provide a number of advantages over other inductor varieties, which include:
      Compact Size — The smaller size of Toroidal Inductors allows for excellent efficiency while maintaining top level performance. Lower Cost — With smaller sizes that use less raw materials, Toroidal Inductors are a highly economical choice.

Characteristics

• Very high permeability nanocrystalline core material
• Improved isolation through plastic case and winding spacer
• High and stable inductance values up to 150 °C
• High rated currents
• Broadband suppression
• Small size
• Frequency range: 1 kHz-300 MHz
• Operating temperature: -40°C to +125°C
• Flammability corresponding to UL 94 V-0
• Climatic category: 40/125/21

Applications

• Power electronics
• Power line in- and output filter
• Radio interference suppression in motors
• Suppression for common mode noise

Advantages

• Excellent soldering ability and heat-resistant
• Excellent terminal strength
• Available in customized specifications
• Available in various sizes
• High reliability

Notes: Customized is available
