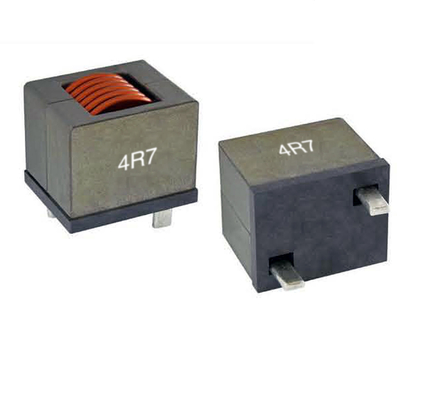

Iron Alloy Core Dip High Current Power Inductors 80A For Inverters

High Current Through-Hole Inductor , Powdered Iron Alloy Core Dip High Current Power Inductors

APPLCATIONS:

• High current and high temperature applications
• DC/DC converters
• High current motor and switching noise suppression
• Inverters

FEATURES:

• High temperature operation, up to 180℃ continuous with no aging
• Low DCR to minimize losses and reduce temperature rise
• Powdered iron alloy core technology provides stable inductance and saturation over operating temperature with satisfactory core losses
• Soft saturation gives predictable inductance decrease with increasing DC current independent of temperature
• Standard terminal is stripped and tinned for through hole mounting but other terminal configurations such as bare copper, SMD, and press fit pin are available upon request
• Custom options are available

Note:

• All test data is referenced to 25℃ ambient
• Operating temperature range -40℃ to +180℃
• The part temperature (ambient + temp. rise) should not exceed 180℃ Cunder worst case operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application
• Isolation voltage, coil to core: 350 VDC, 60s, 5 mA max.
• Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
• Saturation Current (Isat) will cause L0 to drop approximately 30%

Note: Product specifications can be customized.
