Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution

Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution
Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution

Large Image :  Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SPQ
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Wire: Flat Copper Wire Inductance Range: 3.3uH To 50uH
Test Frequency: 100KHz,1V Tolerance: ±20%,±30%
Operating Temperature: -40℃ - +105℃ Current: Up To 40A
High Light:

High Current Flat Copper Wire Inductor

,

50uH High Current Power Inductor

,

High Current Power Inductor Shielded Constrution

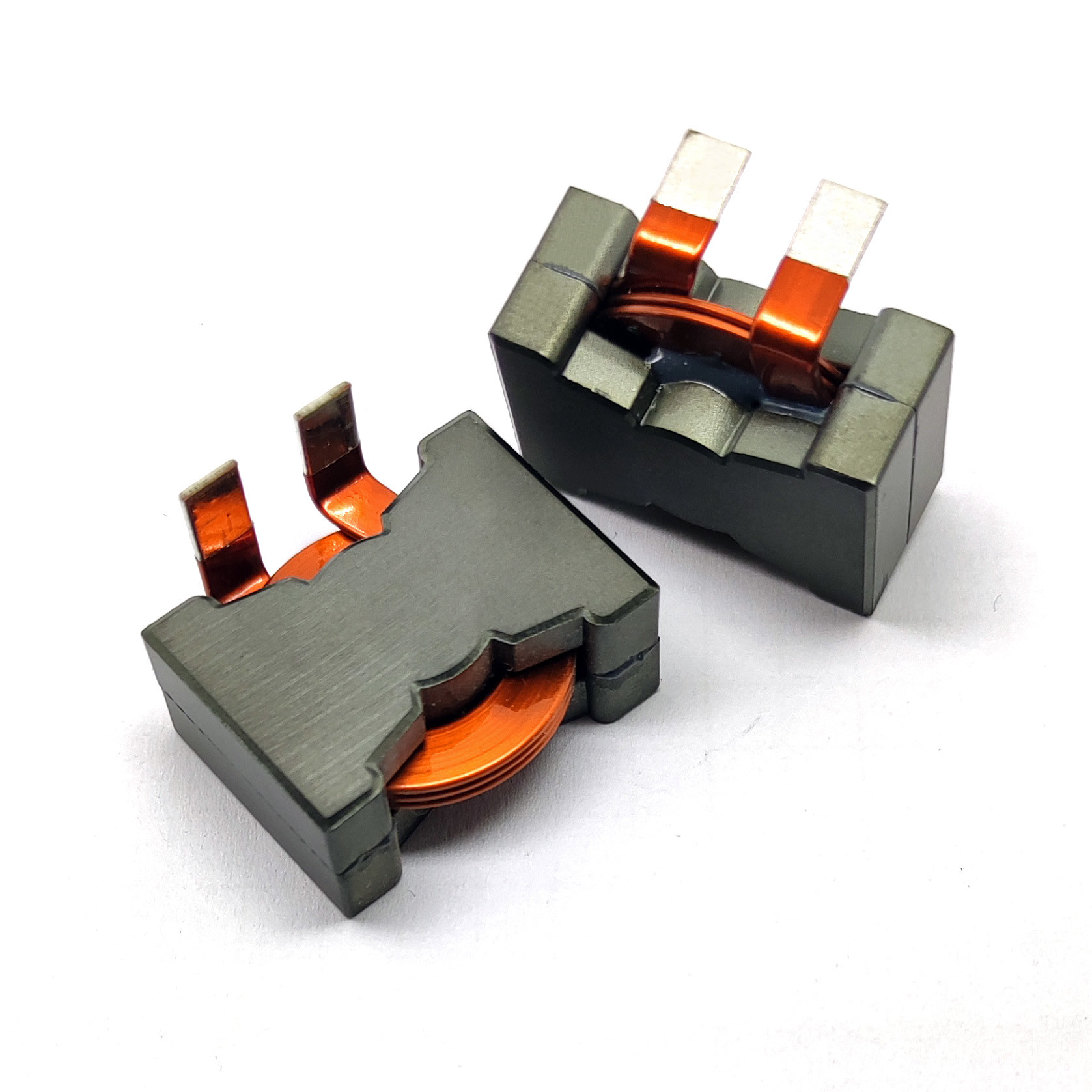

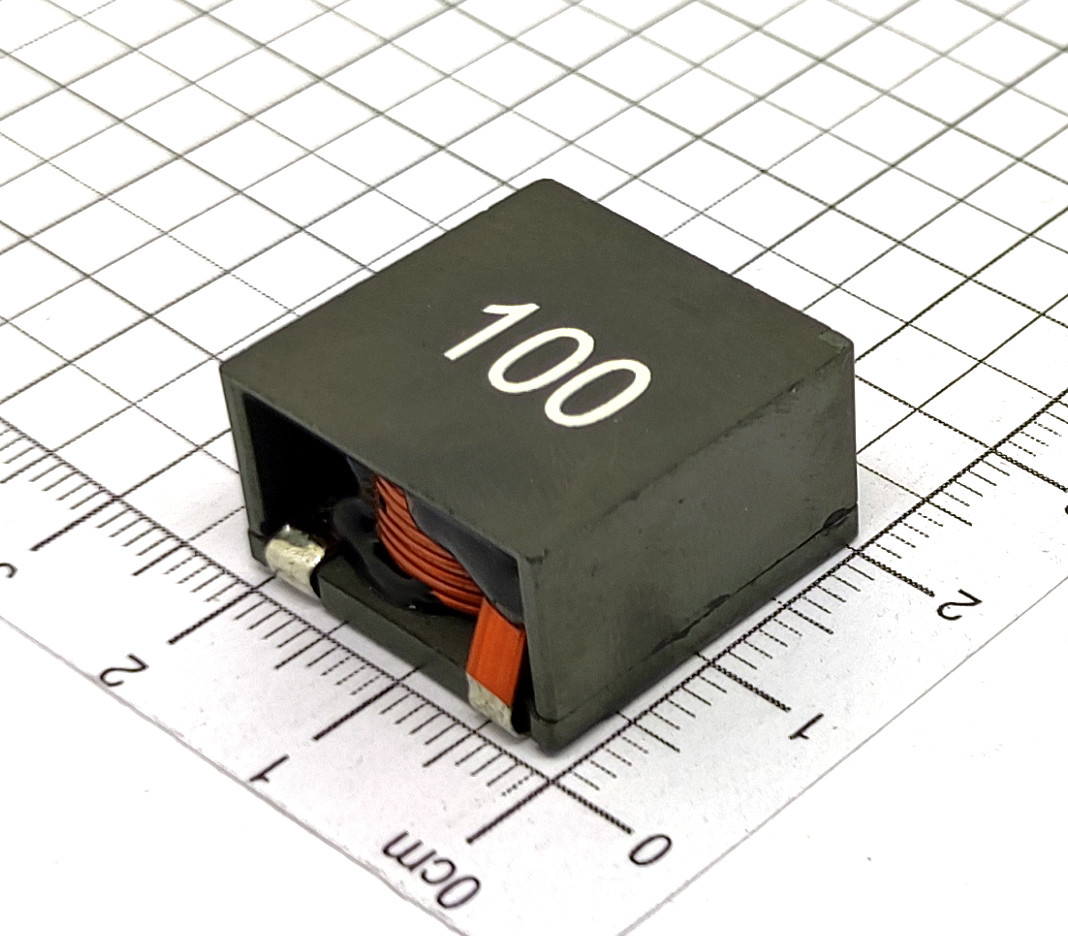

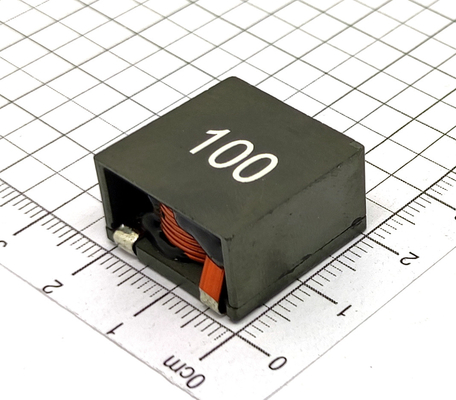

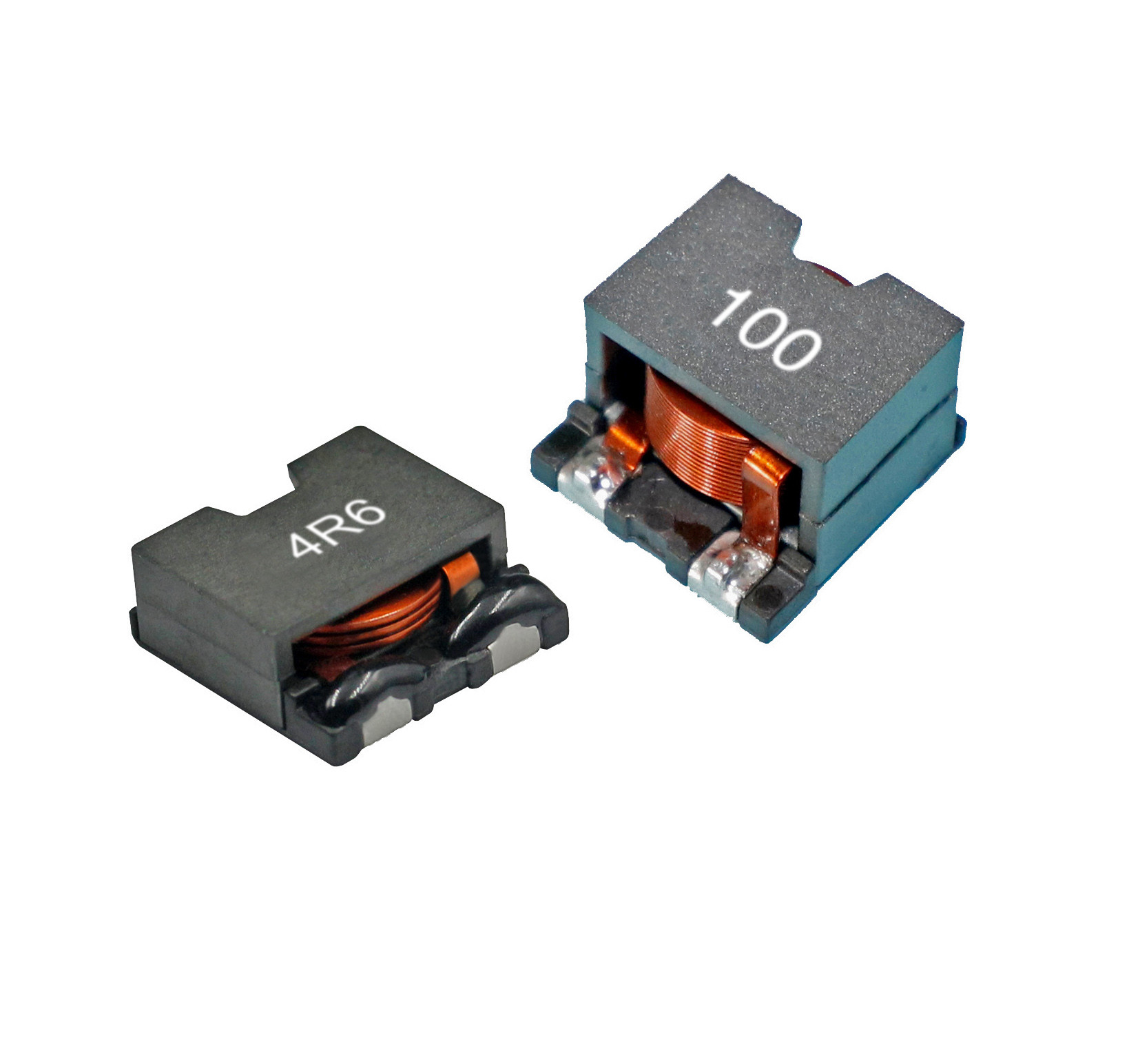

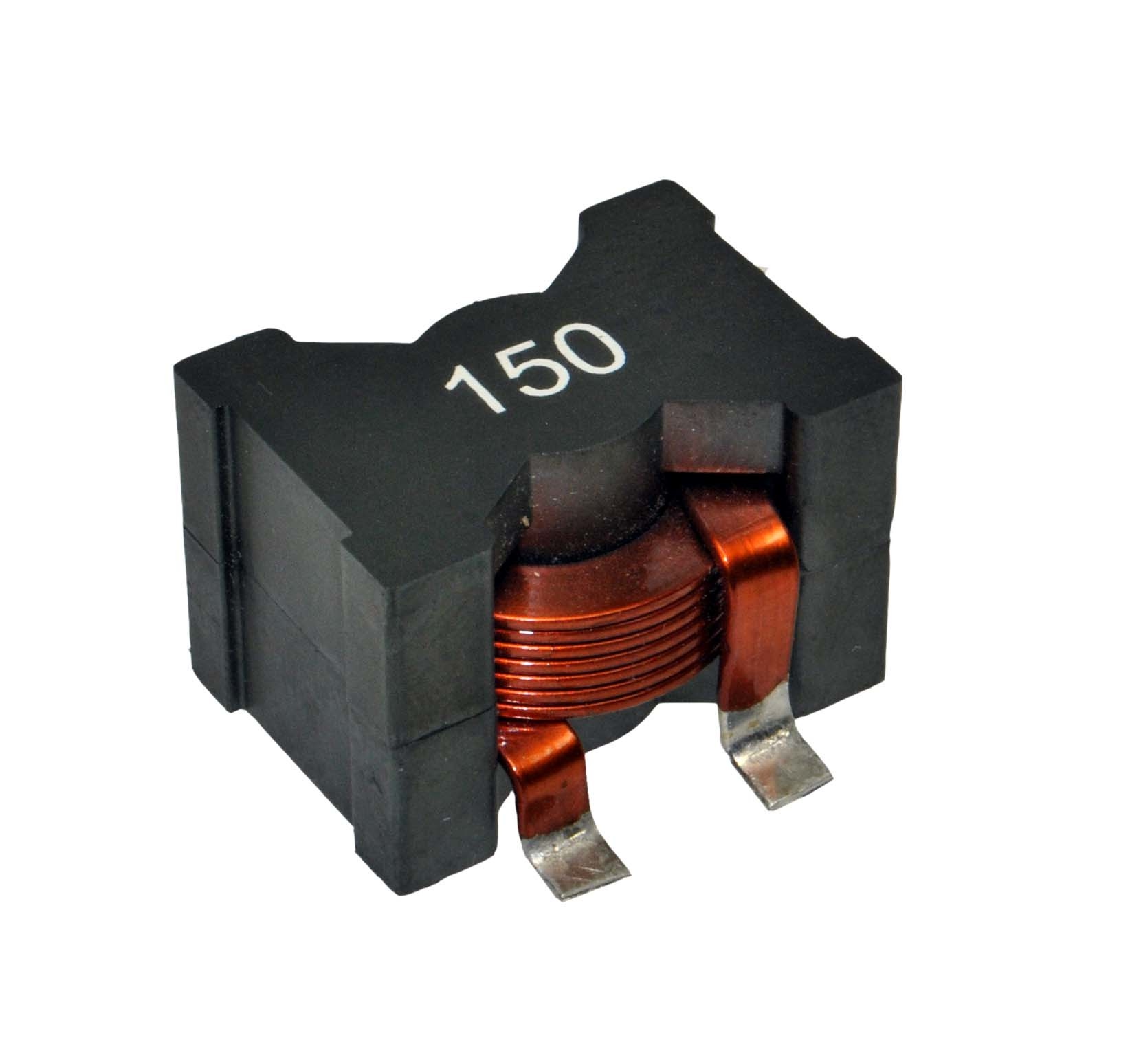

SPQ Series High Current Low Resistance Flat Copper Wire Inductor Coil



        The flat wire inductor coil is wound, the turns and turns are closely flat, increasing the effective cross-sectional area of the wire, making full use of the limited assembling space of the magnetic core, achieving the lowest DCR under the same volume, greatly reducing the copper loss and increasing the temperature rise current of the product.





FEATURES:

  • High Frequency Design
  • Shielded Constrution
  • Flat wire used
  • Excellent Thermal Stability
  • Low Profile, Low DCR.
  • Super Larg Current up to 40A
  • Rated voltage: 250V
  • Custom Inductors are available
  • Operating Temperature:-40℃ to +105℃
  • Storage Temperature: -55℃ to +125℃



APPLCATIONS:

  • Notebook, DC/DC Converters
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions
  • Network Systems
  • Computer Peripheral Equipment
  • CPU Power Supply

Low Resistance High Current Flat Copper Wire Inductor 50uH Shielded Constrution 0

Note: Product specifications can be customized.
