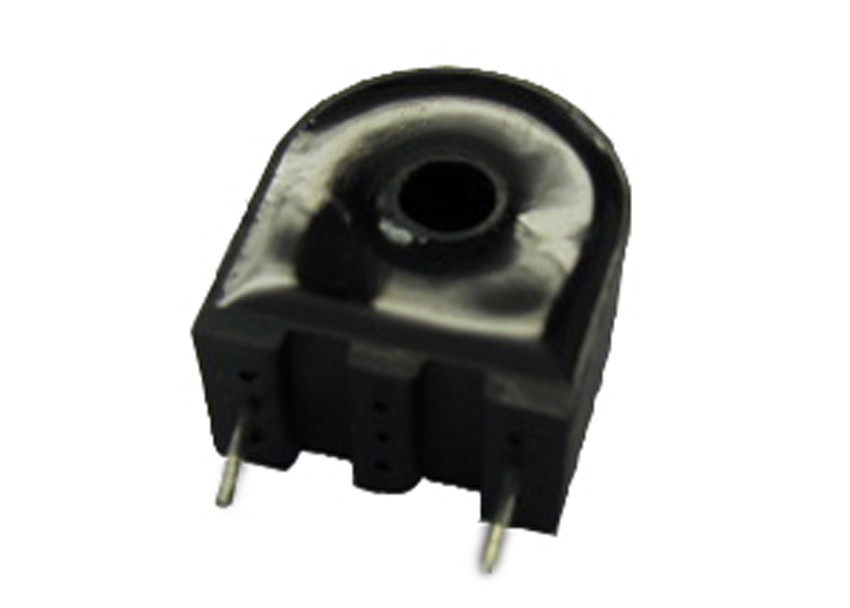

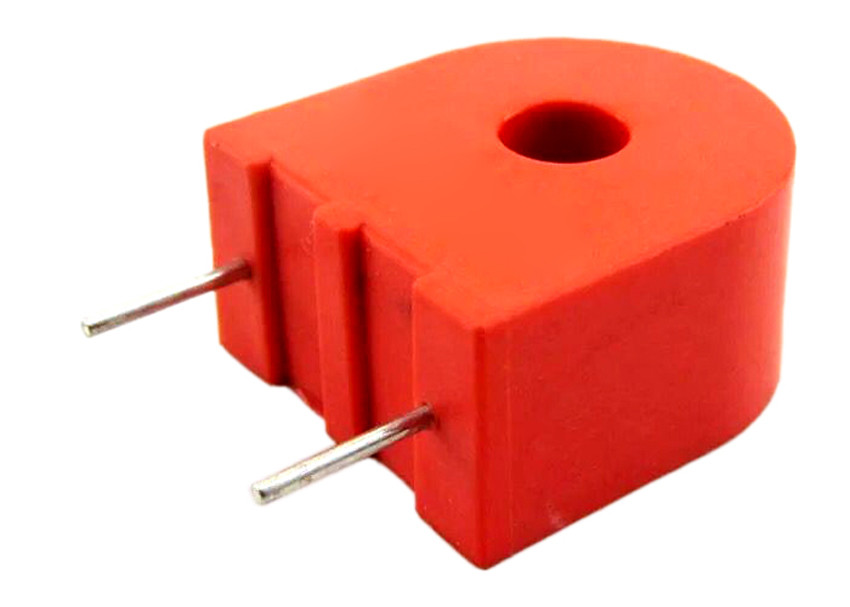

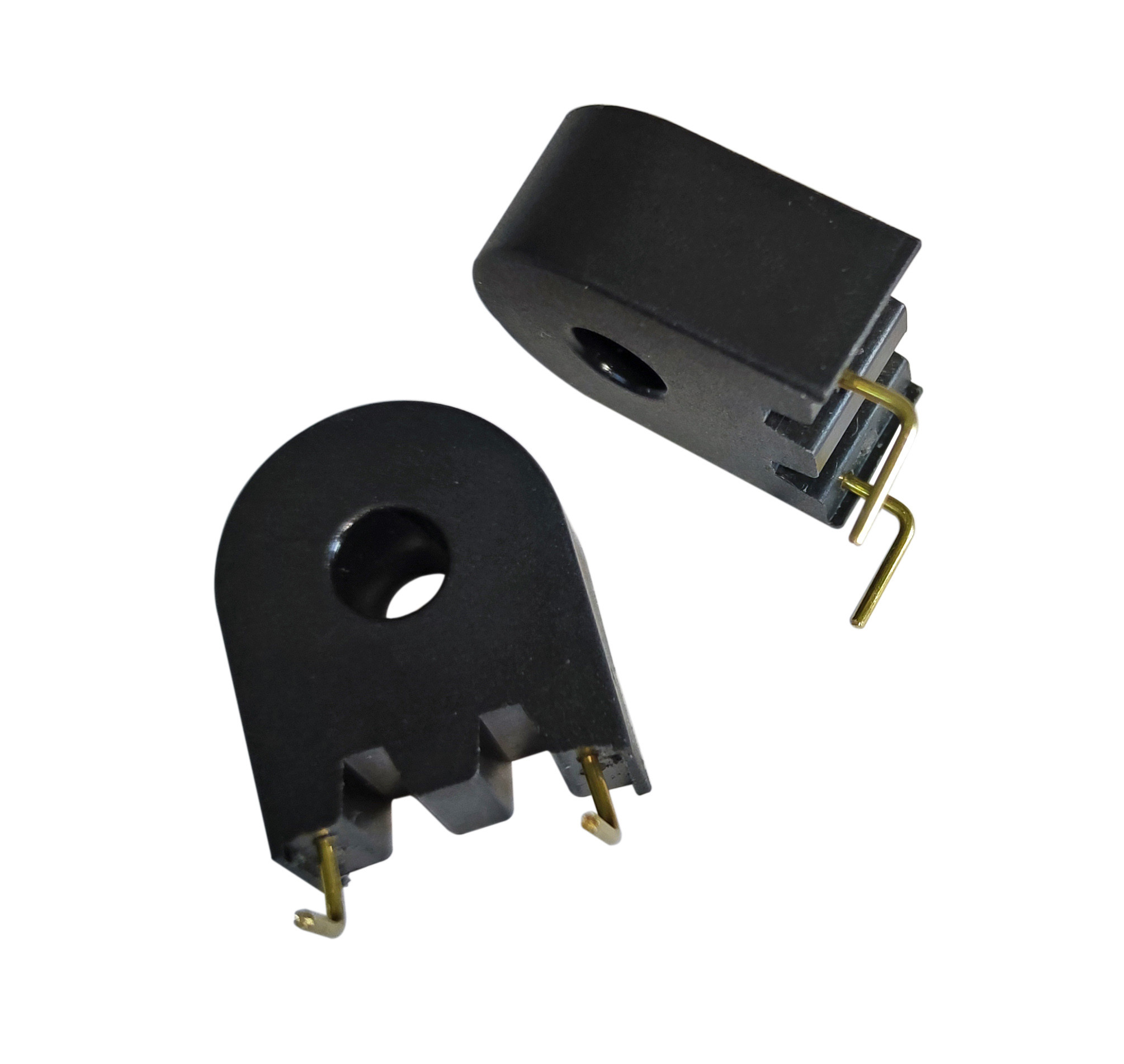

4000V Miniature Current Sense Transformer PCB Mount

4000V Miniature Current Sense Transformer PCB Mount
4000V Miniature Current Sense Transformer PCB Mount 4000V Miniature Current Sense Transformer PCB Mount 4000V Miniature Current Sense Transformer PCB Mount 4000V Miniature Current Sense Transformer PCB Mount

Large Image :  4000V Miniature Current Sense Transformer PCB Mount Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Turns: 1:50, 1:100, 1:200 And 1:300, 1:50CT, 1:100CT, 1:200CT, 1:300CT Frequency Range: 1kHz To 1MHz
Hi-Pot: 4000V,1mA,60S Inner Hole: 4.5mm
Temperature Range: 0℃ To +85℃ Storage Temperature: -25℃ To +85℃
High Light:

Miniature Ac Current Transducer

,

Miniature PCB Mount Current Transformer

,

4000V Power Current Transformer

ACST Series PCB Mount Miniature small DC Immune Current Transformer, CT,Current transformer Manufacturer

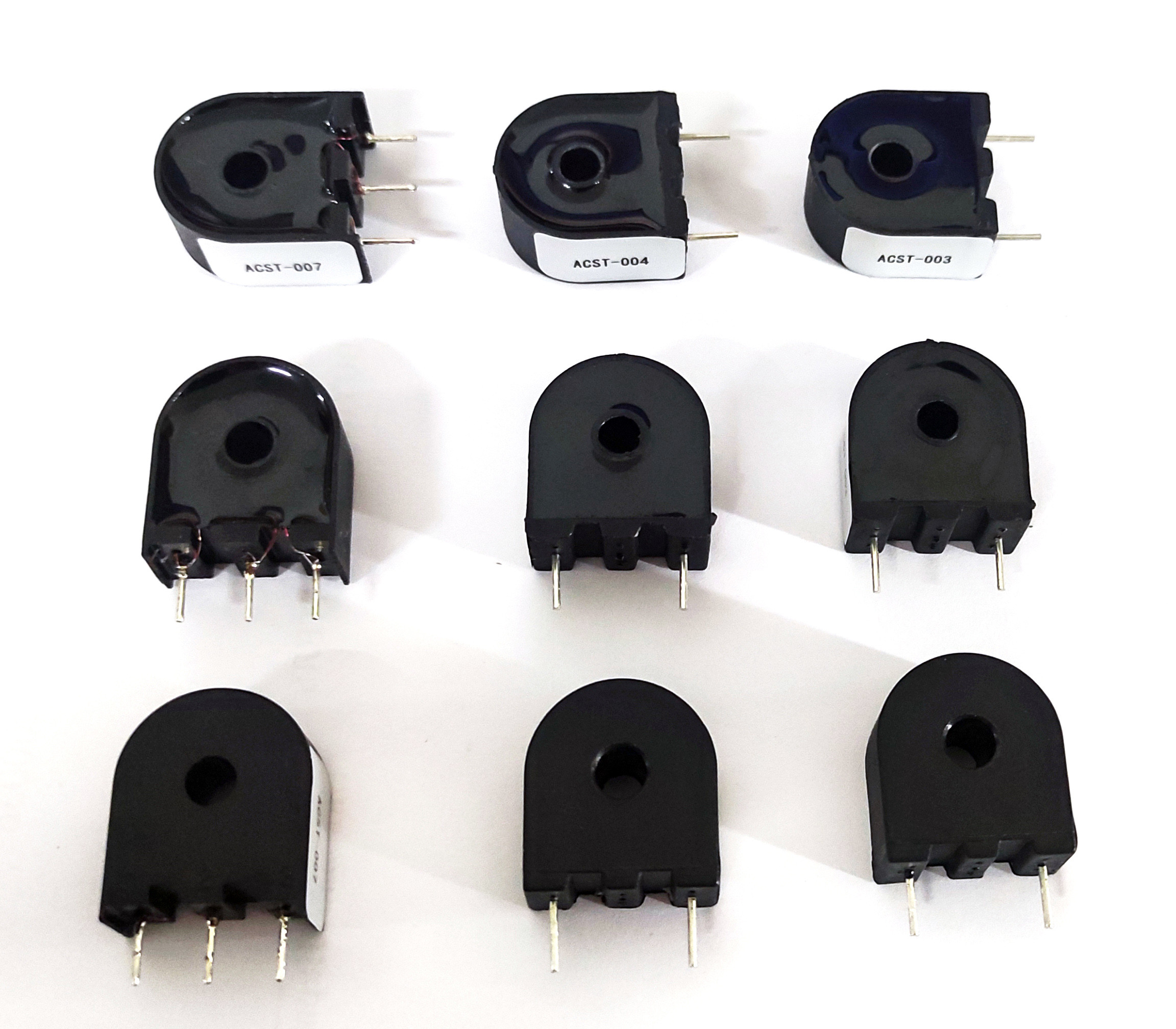

Model ACST-00X
Rated input current 0-20A(100Ω)
turns ratio 1:50, 1:100, 1:200 and 1:300, 1:50CT, 1:100CT, 1:200CT, 1:300CT
linear range 0~20A(sampling resistor 100Ω)
linearity 0.2%(5%dot~120%dot)
application current and power measurement
isolation voltage 2000V
Encapsulation Epoxy
installation PCB mounting(Pin length>3mm)
operating temperature 0ºC~+85ºC
Storage Temperature -25℃ to +85℃
Working frequency range 1kHz to 1MHz
Insulation resistance 500V DC >100MΩ
Resistance to soldering heat 260℃ for 10 seconds



APPLICATIONS:

  • AC energy Meter Power transducer RTU
  • Protection current transformer
  • AC kilowatt hour meter
  • Electronical monitoring system
  • high-frequency current control circuit and pulse current test, AC/DC, DC-DC converters

4000V Miniature Current Sense Transformer PCB Mount 04000V Miniature Current Sense Transformer PCB Mount 14000V Miniature Current Sense Transformer PCB Mount 2


Note: Product specifications can be customized.
