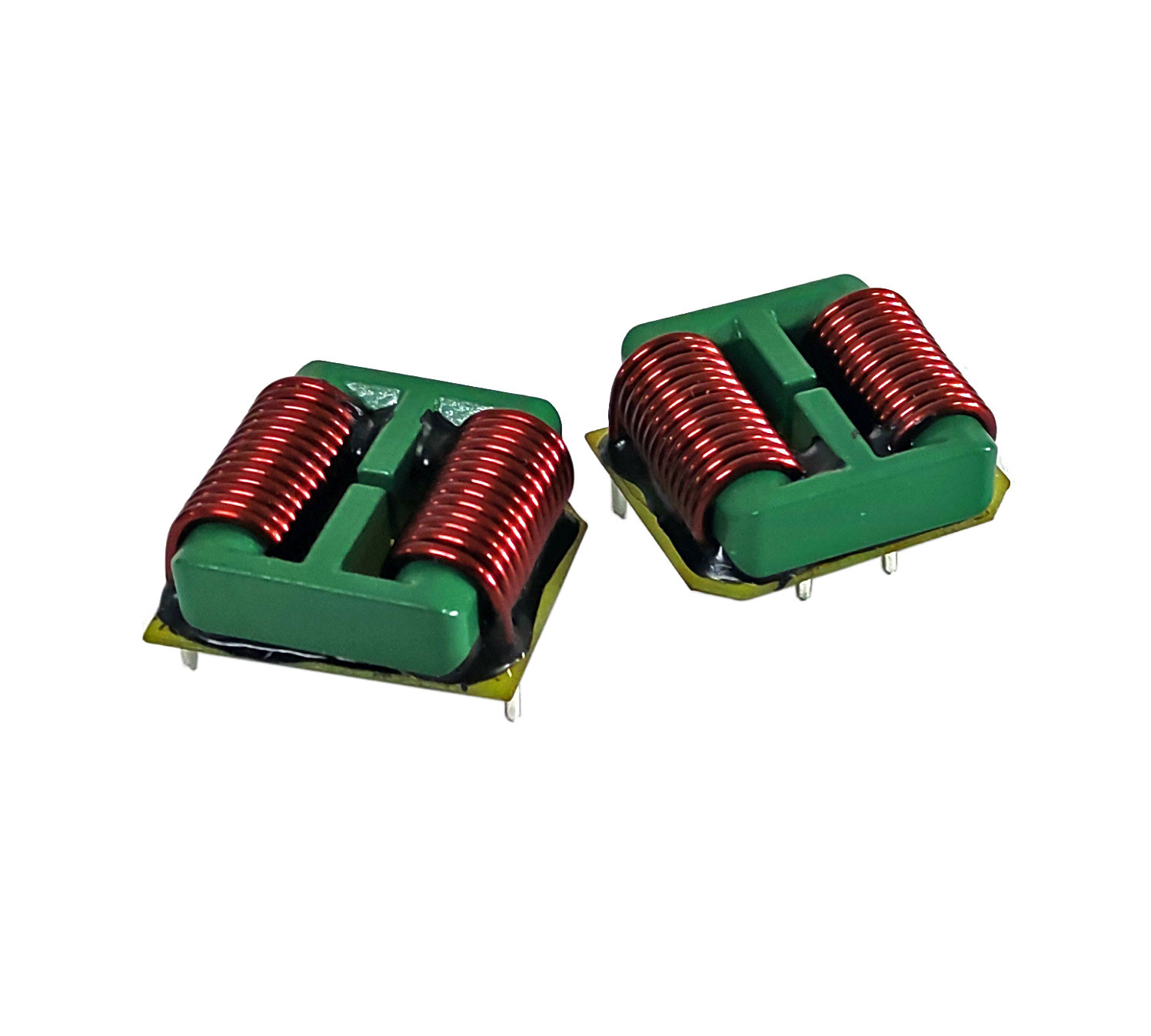

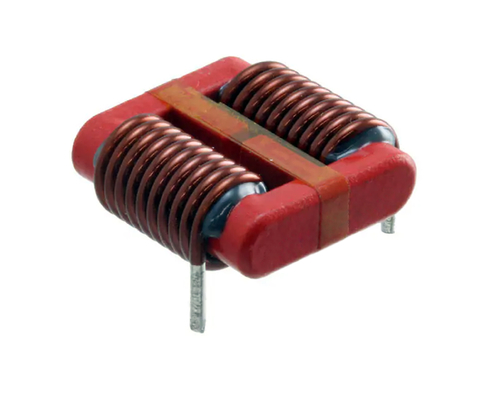

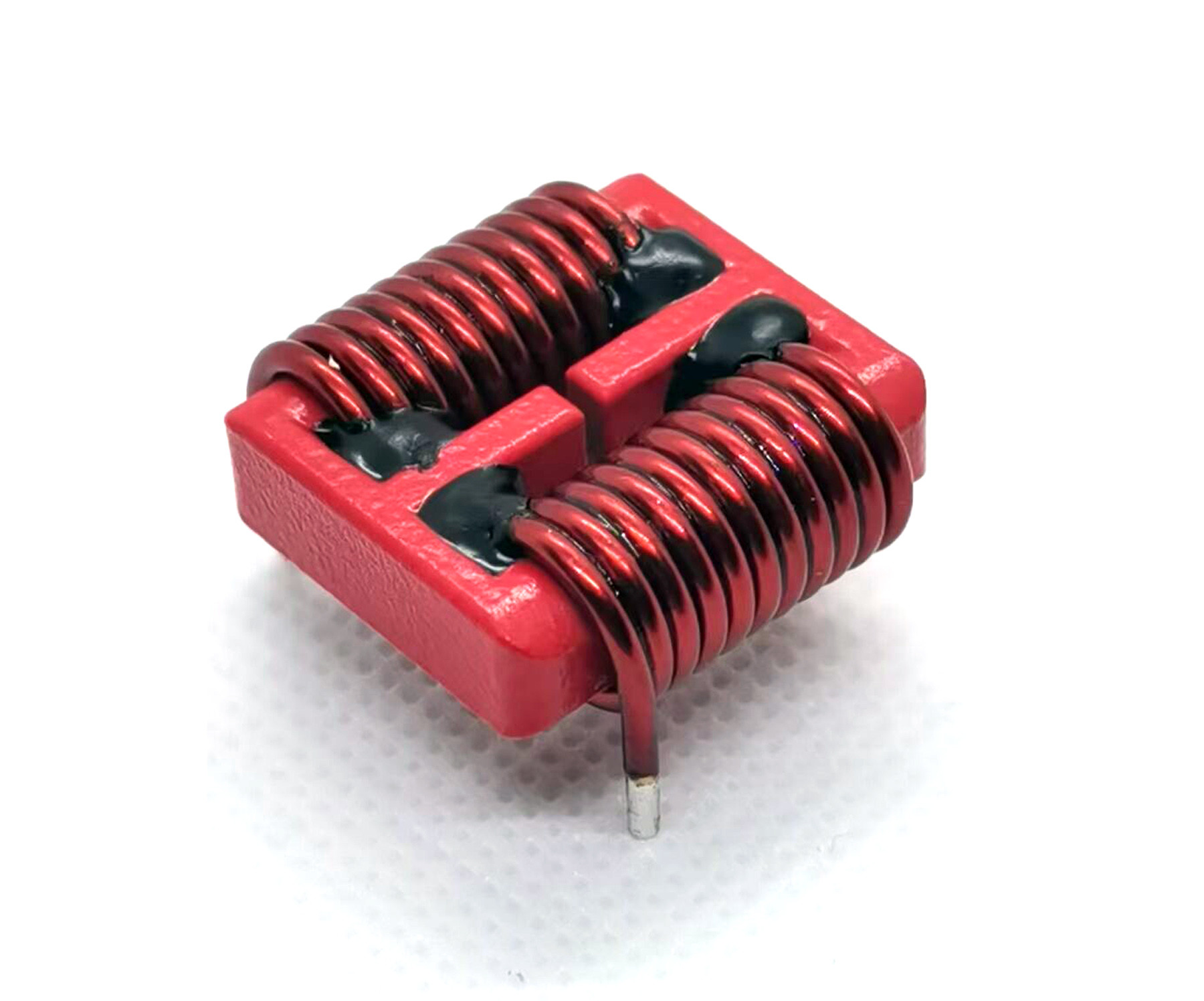

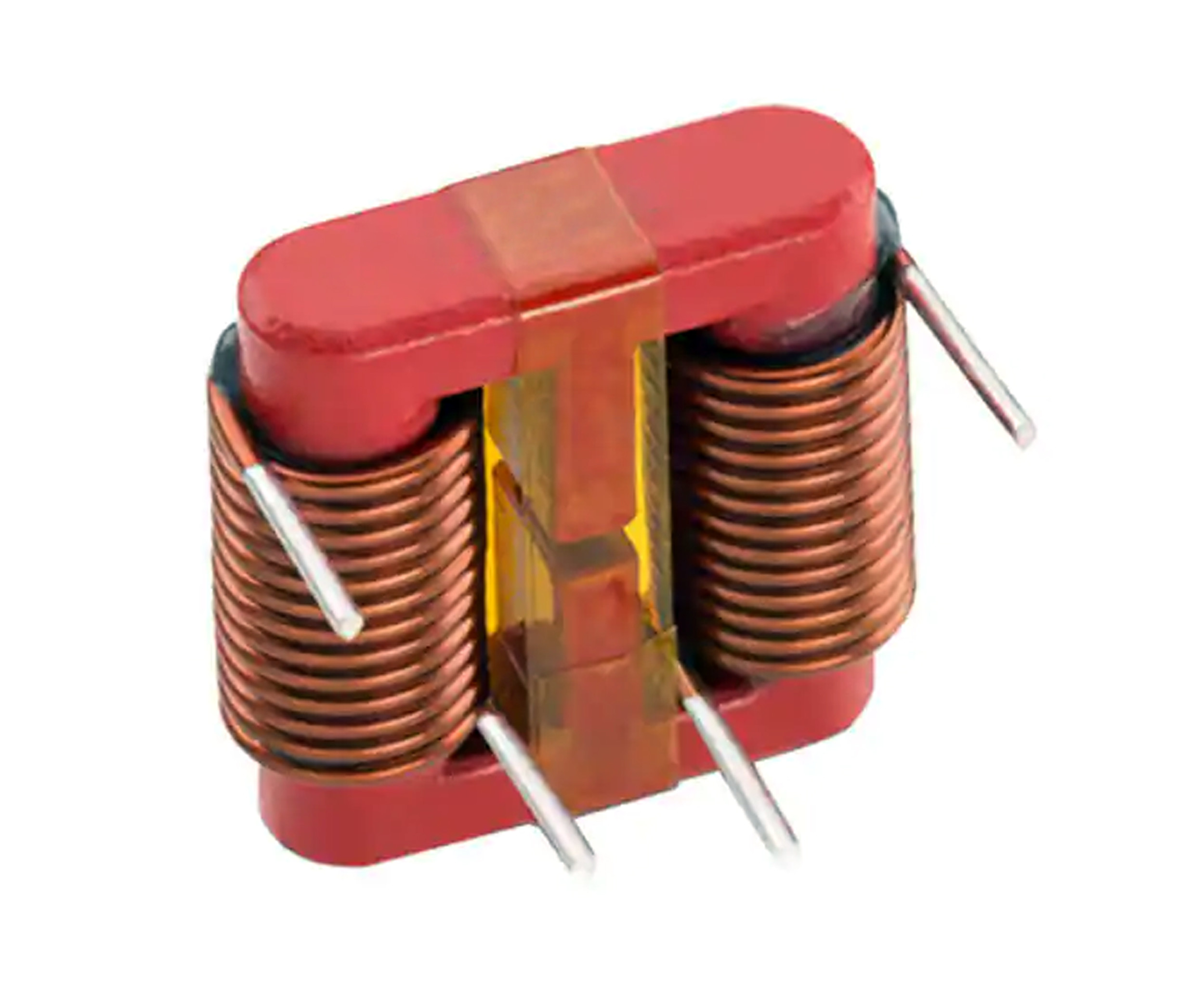

RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire

RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire
RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire

Large Image :  RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SQ
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Wire: Varnished Wire Turns Ratio: 1:1
Core: Ferrite Core Test Frequency: 10kHz
Phase: Single Phase Operating Temperature: -40ºC To +115ºC
High Light:

Common Mode Choke Filter With Bypass

,

RFI Suppression Common Mode Choke Coil

,

Varnished Wire Common Mode Choke Circuit

Common Mode Choke Coils With Bypass For RFI Suppression , Common Mode Power Line Choke



        Common mode inductors (common mode chokes) are commonly used in switching power supplies of computers to filter common mode electromagnetic interference signals.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.



APPLICATION:

  1. Common mode choke coils with bypass
  2. Common mode and differential inductance in one single component
  3. excellent EMI suppressor for LED ballast
  4. High-frequency and low loss
  5. Ideal for lighting ballast and SMPS application, AC-DC, DC-DC, motor regulation, AC regulation RoHS compatible (Pb-free) versions are available
  6. Customized specifications are welcome





Electrical parameters:

  1. L: 230uH±40%@10KHz,0.1V
  2. DCR: 3.6mΩ Max
  3. Rated current: 16.0A Max(Temp. rise 40℃ Max)
  4. Rated voltage: 250V Max
  5. Hi-Pot: 1500Vac,3mA,3S Coil to Coil
  6. Operating temperature: -25℃ to +115℃
  7. Storage temperature: -25℃ to +65℃



RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire 0

Notes: Customized is available
