Varnished Wire Common Mode Coil Choke With Bypass Integrated CMC DMC

Negotiation
MOQ
Negotiation
Price
Varnished Wire Common Mode Coil Choke With Bypass Integrated CMC DMC
Features Gallery Product Description Request A Quote
Features
Specifications
Wire: Varnished Wire
Turns Ratio: 1:1
Core: Ferrite Core
Test Frequency: 10kHz
Phase: Single Phase
Operating Temperature: -40ºC To +115ºC
Highlight:

Bypass Common Mode Coil

,

Integrated CMC Common Mode Choke

,

Varnished Wire Common Mode Coil
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ETV2320
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

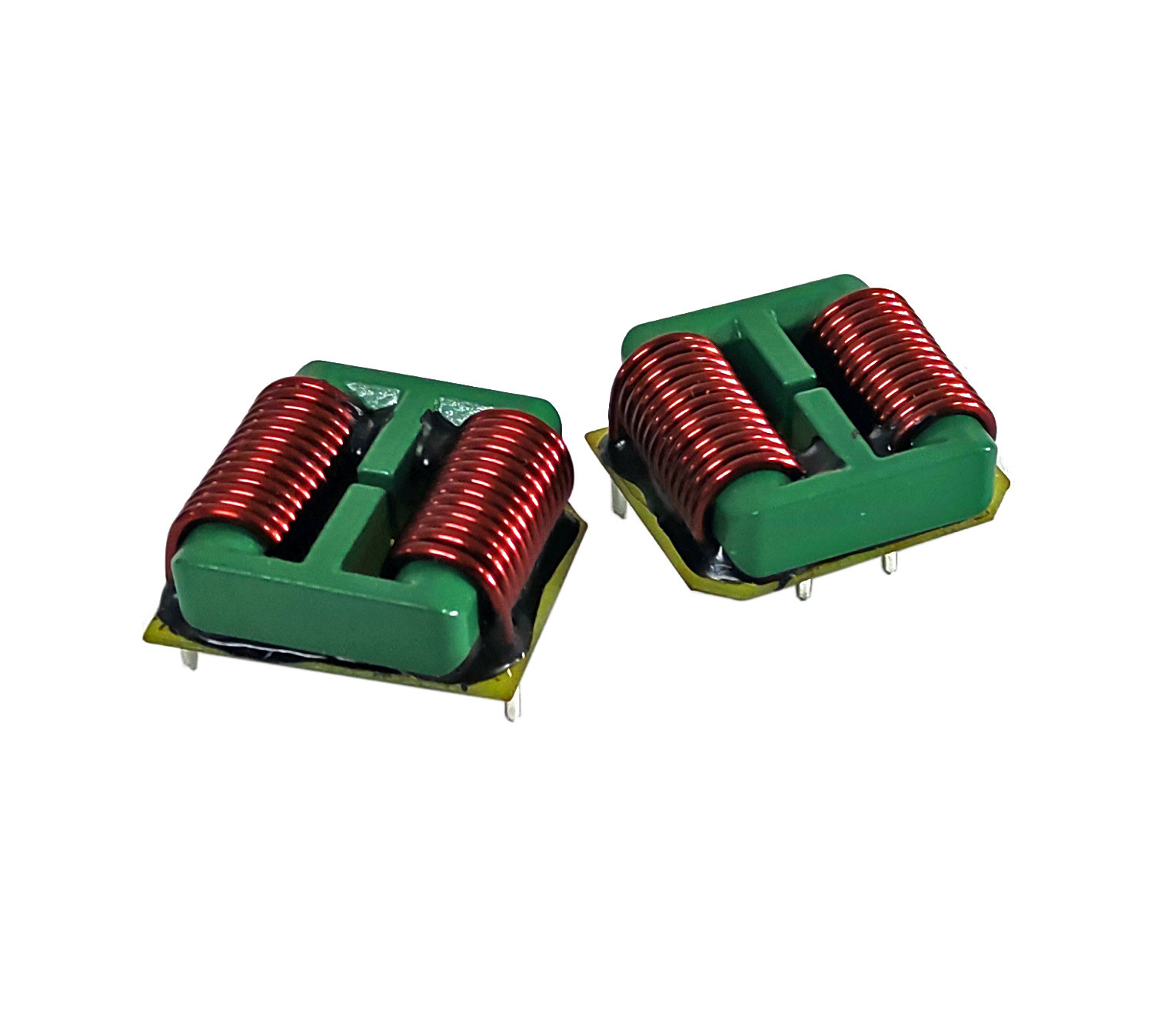

Common Mode Choke with bypass ,Integrated CMC and DMC in one coil



Integrated Common mode choke and Different mode choke in one coil



APPLICATION:

  1. Common mode choke coils with bypass
  2. Common mode and differential inductance in one single component
  3. excellent EMI suppressor for LED ballast
  4. High-frequency and low loss
  5. Ideal for lighting ballast and SMPS application, AC-DC, DC-DC, motor regulation, AC regulation RoHS compatible (Pb-free) versions are available
  6. Customized specifications are welcome





Electrical parameters:

  1. L: 120uH±40%@10KHz,0.1V
  2. DCR: 1.4mΩ Max
  3. Rated current: 23.5A Max(Temp. rise 40℃ Max)
  4. Rated voltage: 250V Max
  5. Hi-Pot: 1500Vac,3mA,3S Coil to Coil
  6. Operating temperature: -25℃ to +115℃
  7. Storage temperature: -25℃ to +65℃



Varnished Wire Common Mode Coil Choke With Bypass Integrated CMC DMC 0Varnished Wire Common Mode Coil Choke With Bypass Integrated CMC DMC 1​

Notes: Customized is available
