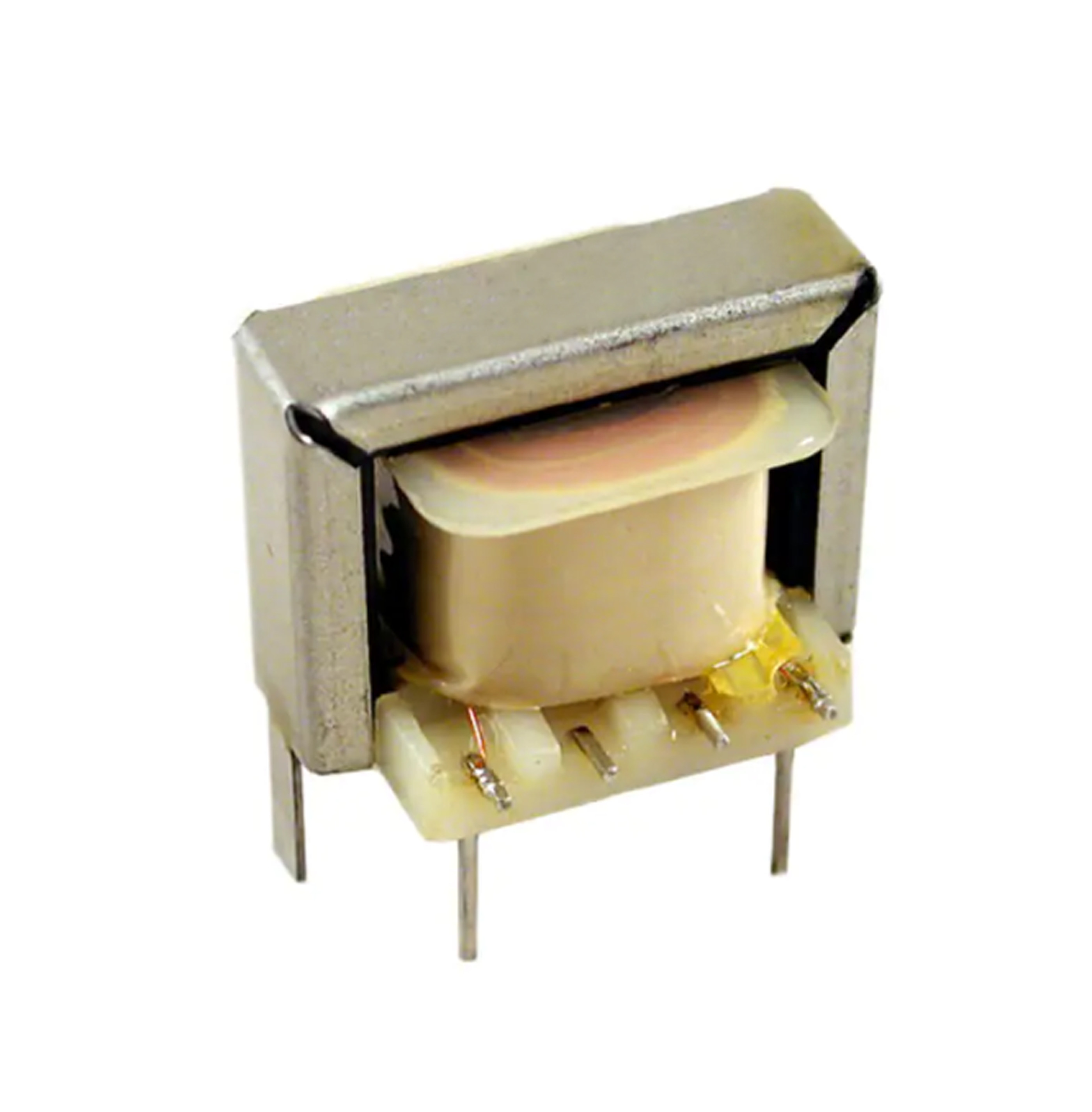

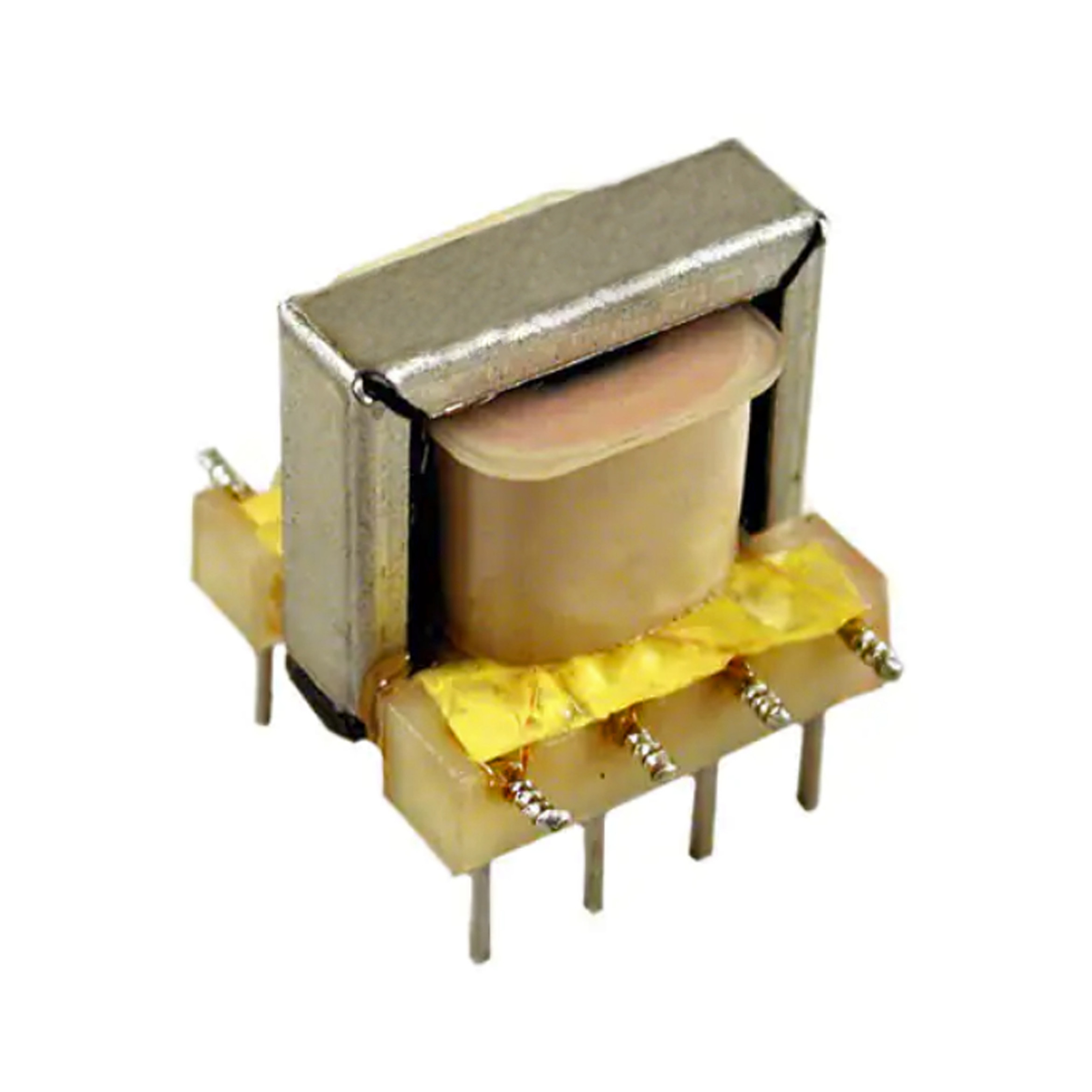

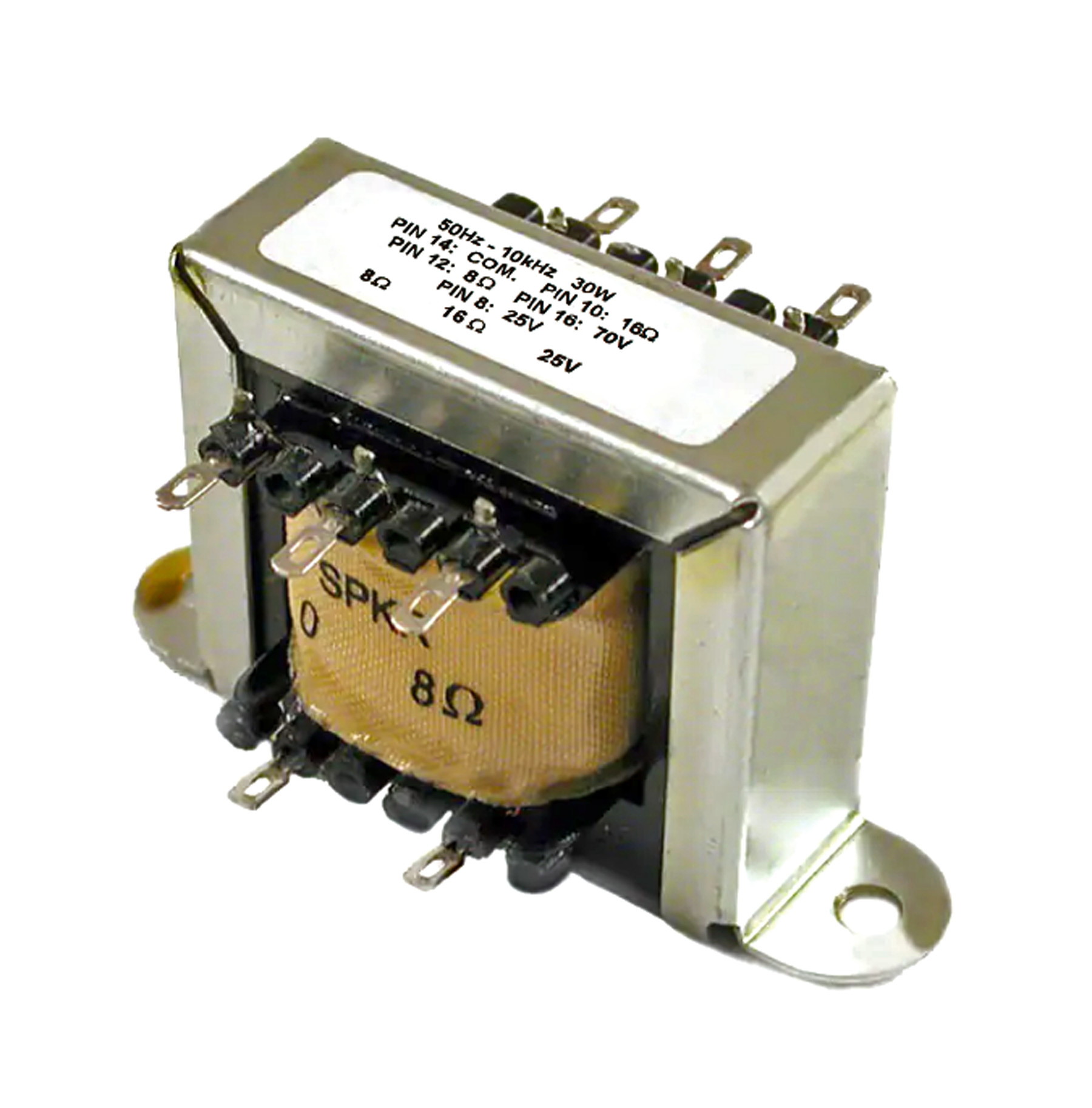

300mW Audio Output Transformer Low Frequency 50 / 60Hz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Frequency: | 50/60Hz | Application: | Audio Output Transformer |
|---|---|---|---|
| Insulation: | UL Insulation System For Class B (130), F (155), H (180) | Product Name: | Low Frequency Transformer |
| Certification: | ISO9001-2000, UL, ISO9001, CCC, CE | Operating Temperature: | -25℃to+125℃ |
| High Light: | 300mW Audio Output Transformer,Low Frequency Audio Output Transformer,50Hz Audio Frequency Transformer |
||
4kCT Impedance Primary Ohms 3.2 Impedance Secondary Ohms Audio Transformer 200Hz ~ 15kHz
Features:
Pin type (0.25" length & 0.025" square), P.C. board mount.
Economical, open type, horizontal bracket construction.
lugs for extra mounting strength.
Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. at 1 Khz.).
Total distortion approximately 2% for drivers and 1% for outputs at 200 Hz. , decreasing at higher frequencies.
Insertion loss less than 1/2 db.
Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.2" grid pin spacing.
Insulation test 250V rms.
Application
1. Audio / Video Amplifier
2. Power Supply
3. Electronic equipment
4. Automatic Door
| Impedance - Primary (Ohms) | 4kCT |
| Impedance - Secondary (Ohms) | 3.2 |
| DC Resistance (DCR) - Primary | 380Ohm |
| Transformer Type | Economical Open Type |
| Frequency Range | 200Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Insertion Loss | 0.5dB |
| Power Level | 300mW |
| Mounting Type | Through Hole |
| Size / Dimension | 0.820" L x 0.680" W (20.83mm x 17.27mm) |
| Height - Seated (Max) | 0.690" (17.53mm) |
| Termination Style | PC Pin |
