Product Details:
Payment & Shipping Terms:
|
| Frequency: | 50/60Hz | Application: | Audio Output Transformer |
|---|---|---|---|
| Insulation: | UL Insulation System For Class B (130), F (155), H (180) | Product Name: | Low Frequency Transformer |
| Certification: | ISO9001-2000, UL, ISO9001, CCC, CE | Operating Temperature: | -25℃to+125℃ |
| High Light: | 500vac microphone splitter transformer,af microphone splitter transformer,low frequency af transformer |
||

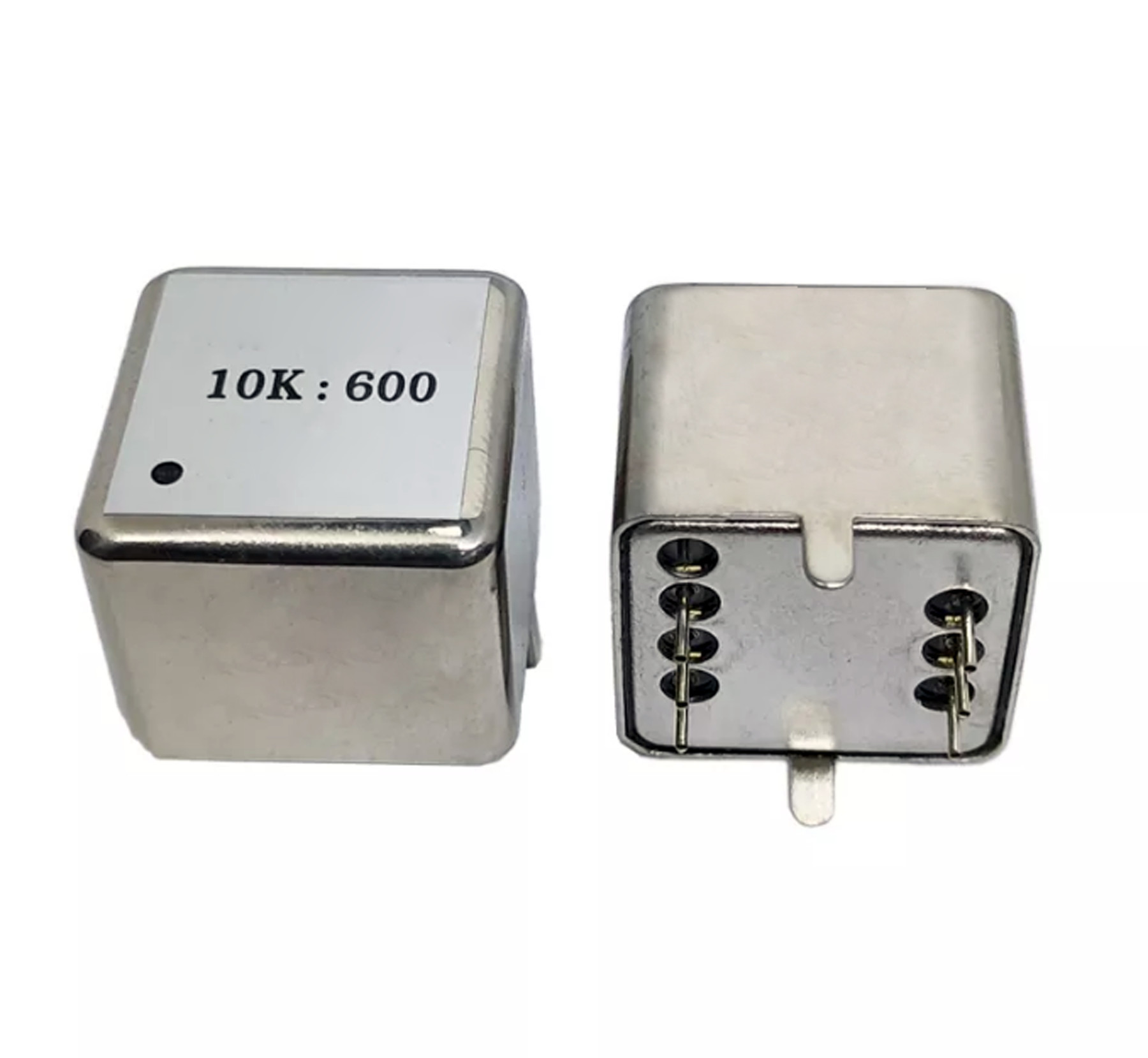

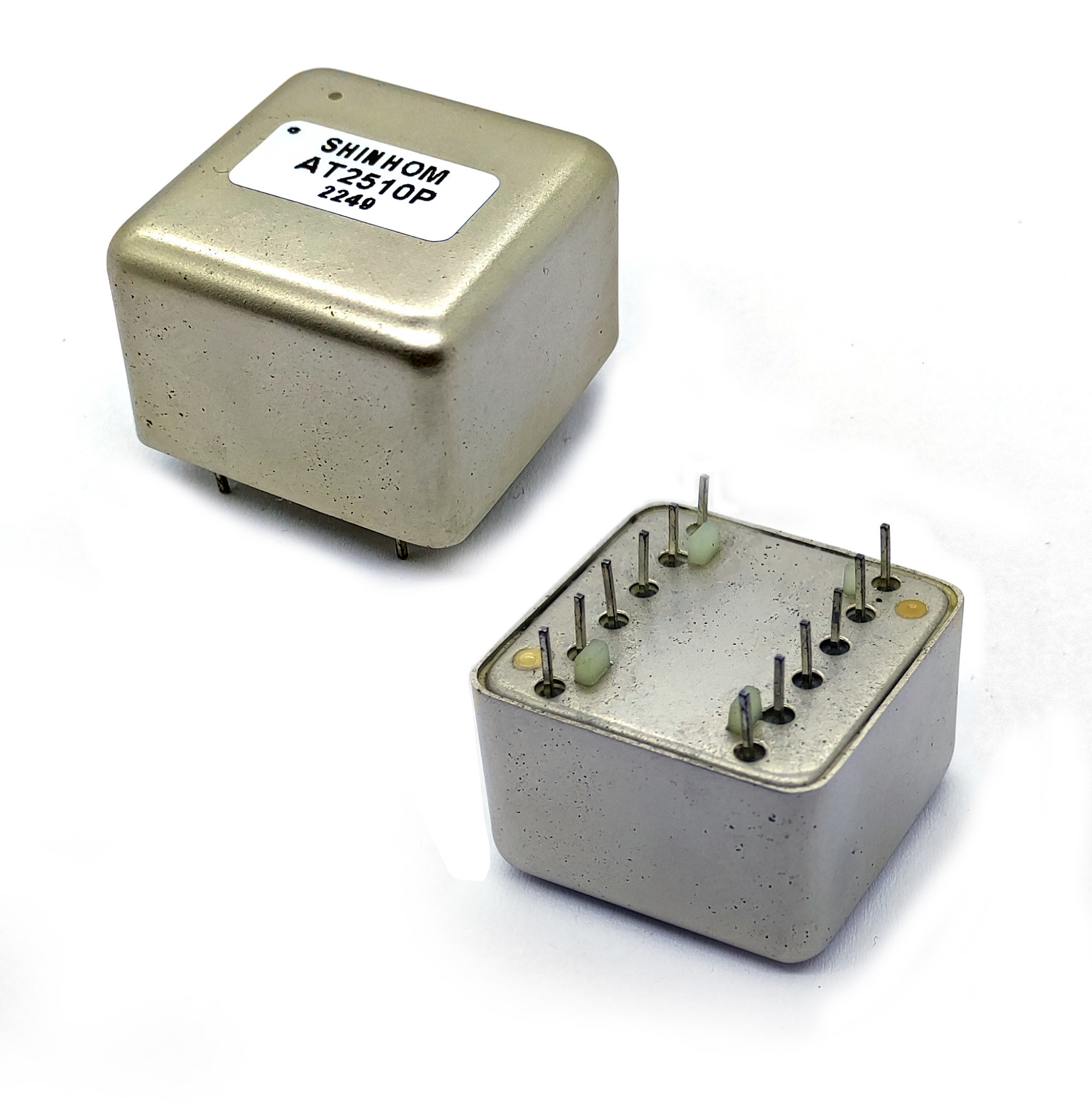

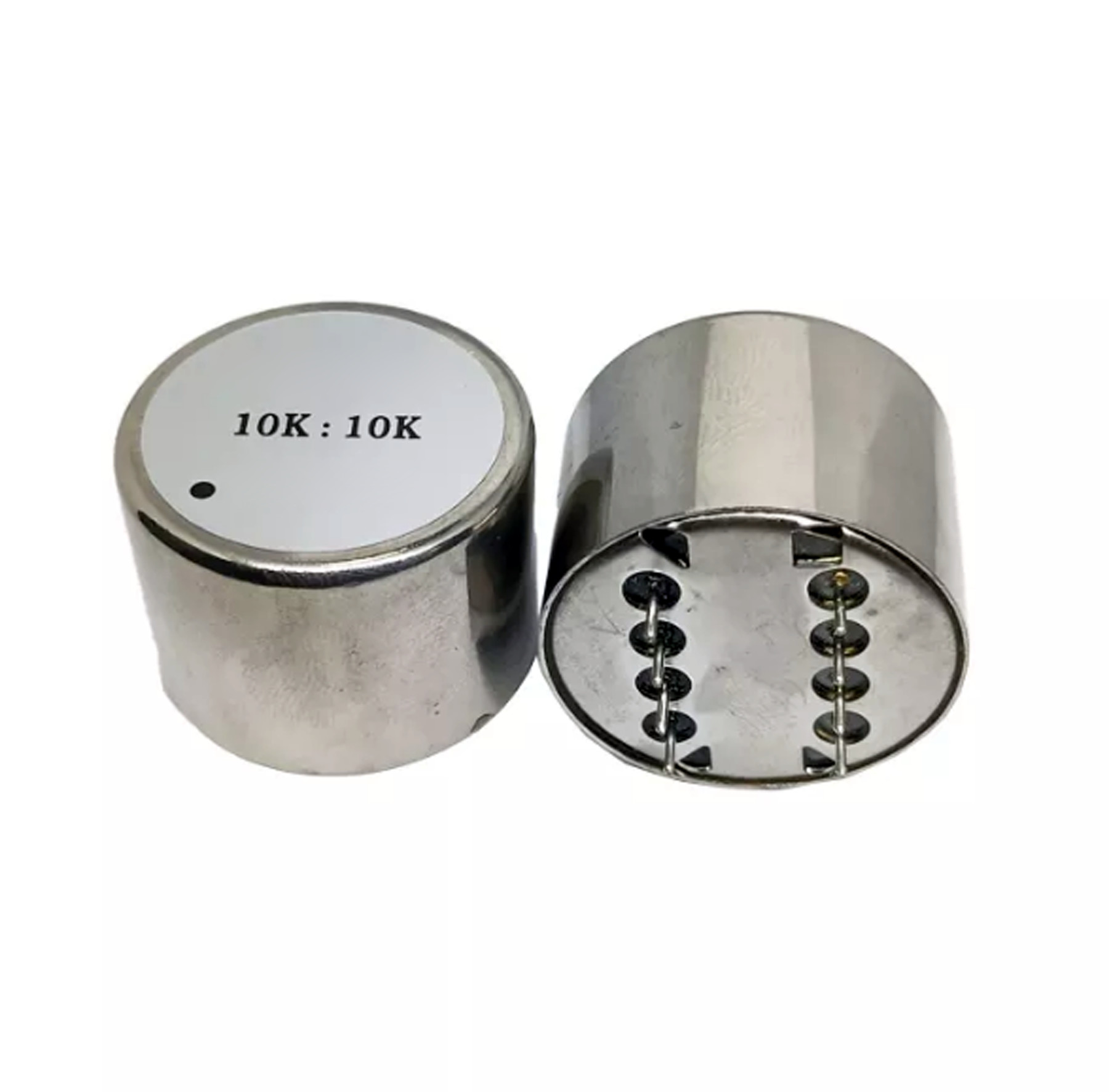

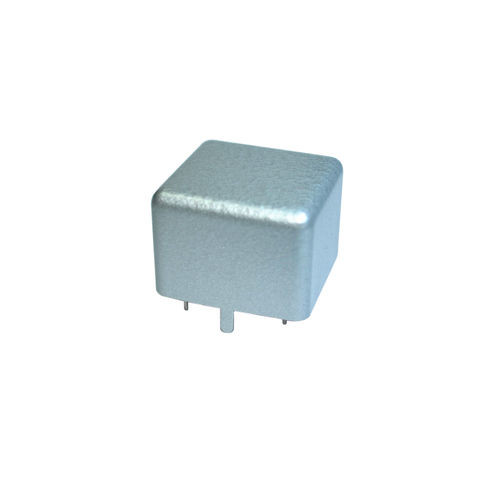

Microphone Split Transformer , AF Transformer
Features:
• Provides 2 additional, isolated balanced outputs as mic 'splitter'
• Stops 'ground loop' problems when a mic feeds multiple preamps
• High common-mode rejection: 130 dB at 60 Hz
• Excellent frequency response and time domain performance
• Low insertion loss: 1.2 dB
Application:
This transformer is designed for drive from a 150 Ω microphone source and for each secondary to be loaded by the 1 kΩ input impedance typical of microphone preamplifiers. A pair can be used to make a passive matrix when using the M-S stereo microphone technique. A 30 dB magnetic shield
Electrical specification:
