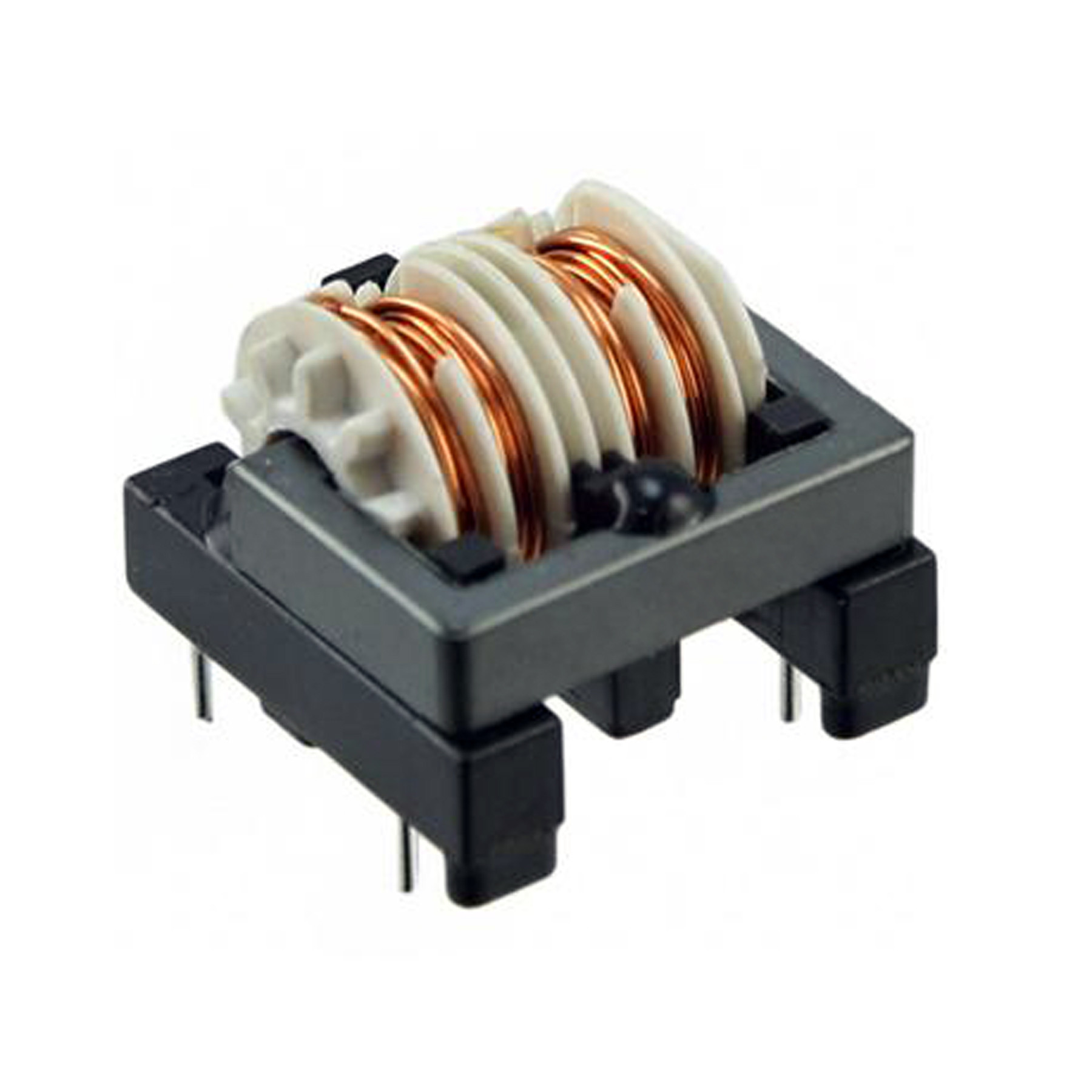

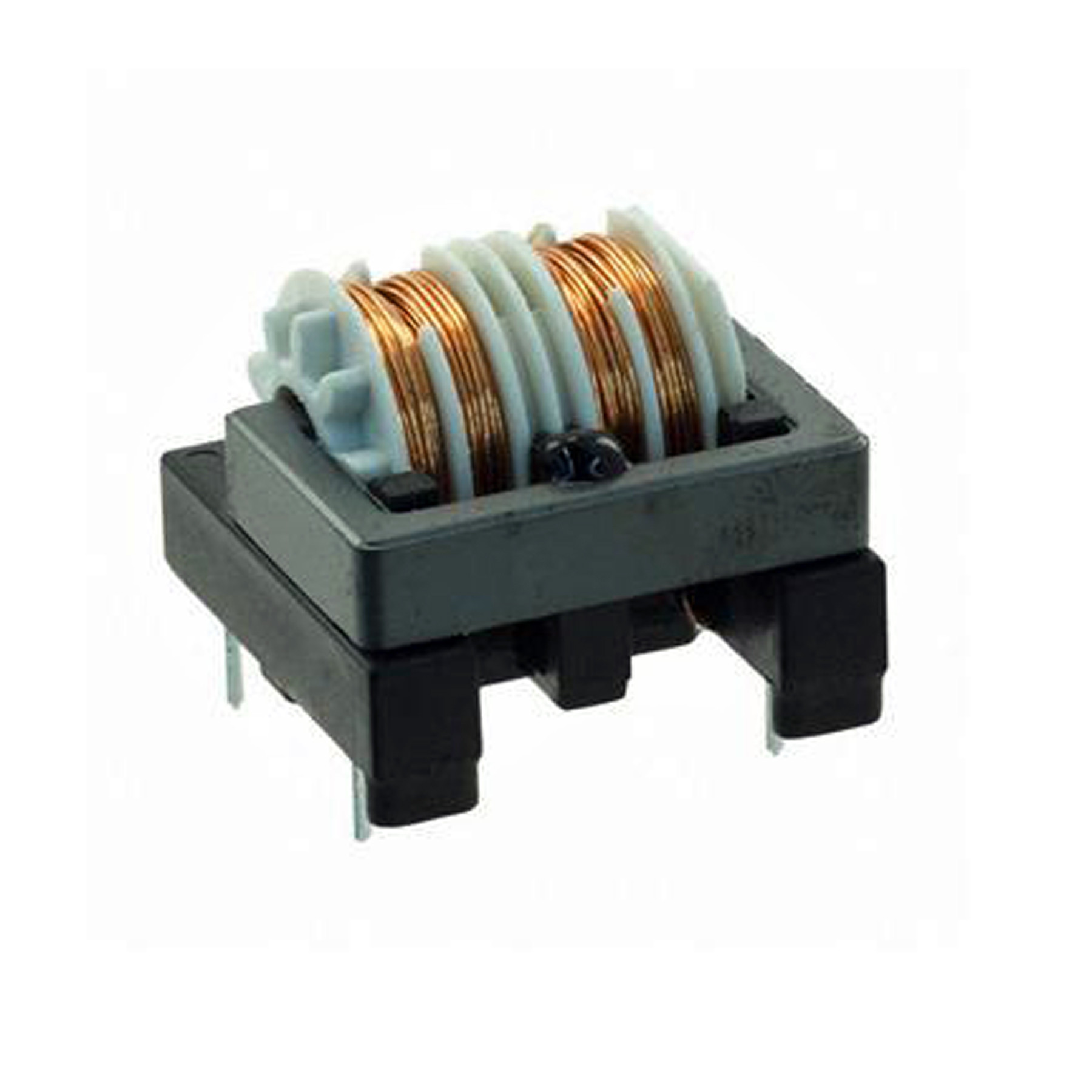

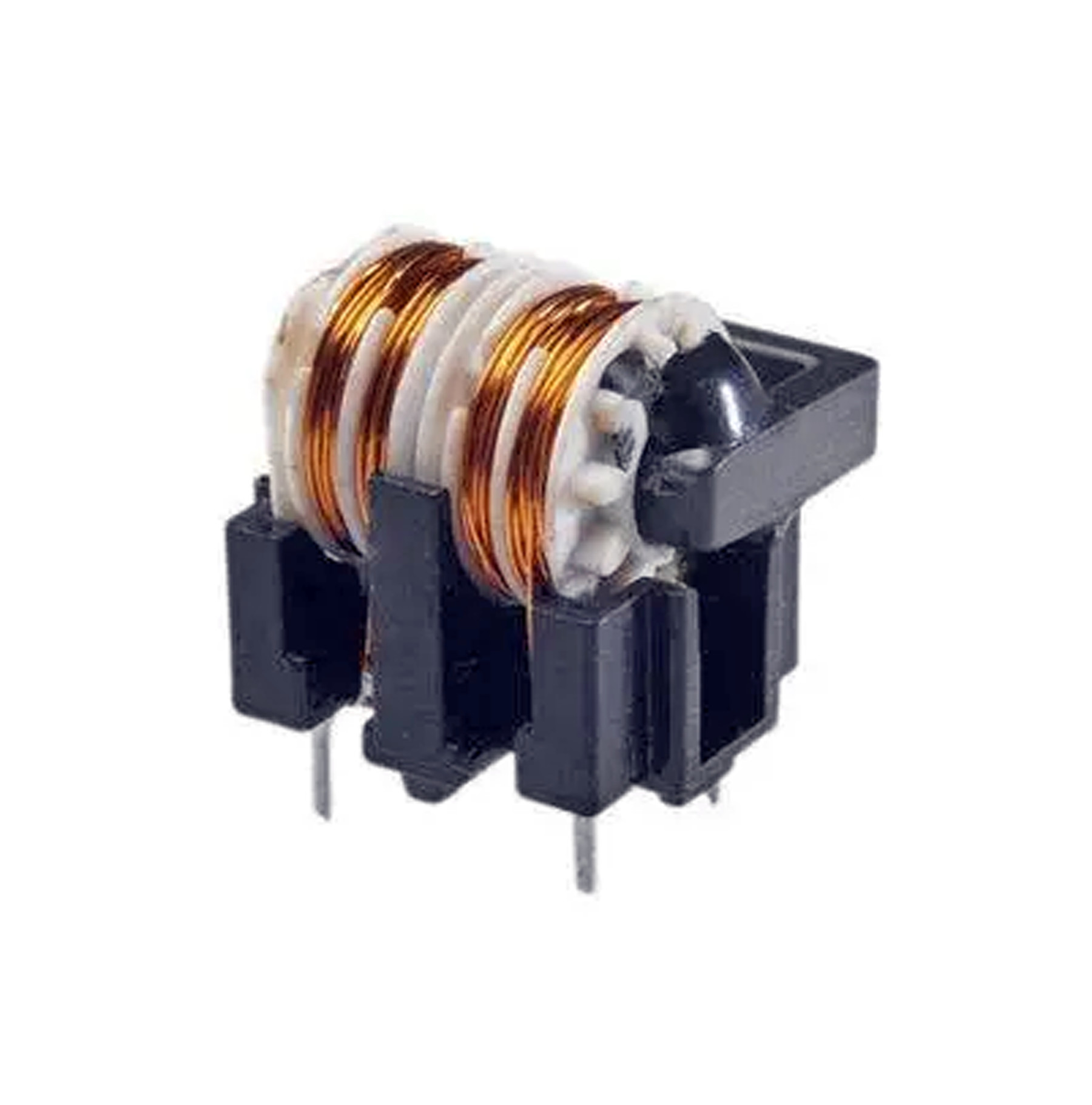

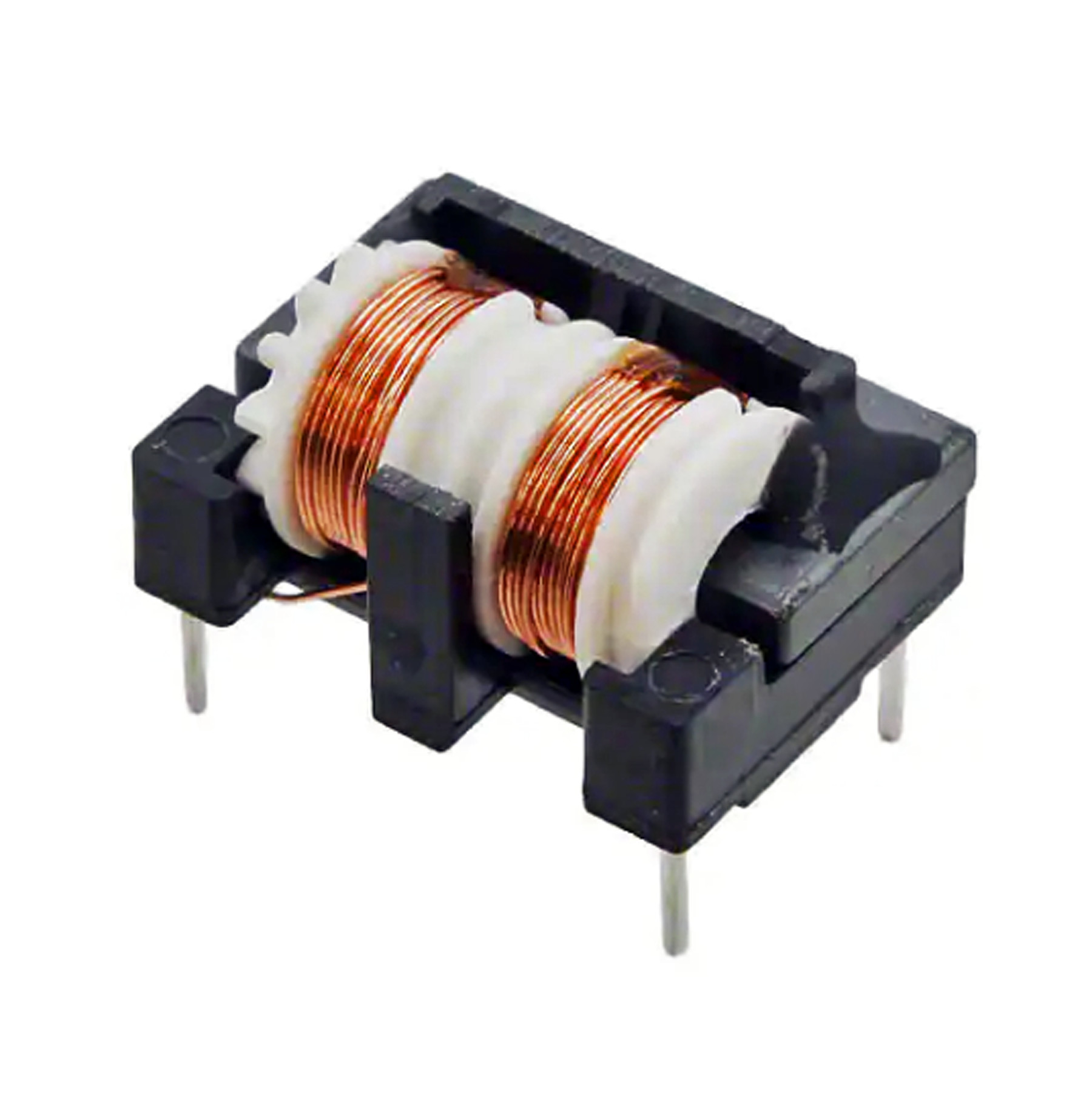

Low Frequency Attenuation Common Mode Choke Coil 50 / 60Hz

Name: Low Frequency Attenuation Common Mode Choke Coil 50 / 60Hz
Brand: Shinhom
SKU: UT1609 Seires
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (101 reviews)
ISBN: 35319529

Large Image : Low Frequency Attenuation Common Mode Choke Coil 50 / 60Hz Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	UT1609 Seires

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Working Frequency:	50/60Hz	Installation:	DIP
Structure Of Magnetizer:	Common Mode Coil	Nature Of Operation:	Choke Coil
Range Of Application:	Choke	Model Number:	Choke Coil Filter Inductor
High Light:	Low Frequency Attenuation Common Mode Choke , DIP Common Mode Coil , Common Mode Choke 60Hz

Common Mode Choke Coil Exellent attenuation characteristics in low frequency

Features:

·17.0X13.0mm Max.(LXW), 9.5mm Max. Height.
· Inductance range: 0.47mH~10mH
· Rated current range: 0.2~1.10A
· Small size and large inductance type.
· Exellent attenuation characteristics in low frequency.
· RoHS Compliance

Application:

· DC/DC, AC/DC line noise suppression
· Communication System
· Automotive Systems
· LCD/PDP Televisions
· VCR,AV,OA equipment.

Notes:

1. Rated current: The AC current at which the temperature rise is △T=45℃(Ta=20℃)
2. Please give sufficient consideration to the thick wire used when producing the P.C.B.(mounting holesφ1.0mm)
3. Storage temperature range: －40℃～＋125℃.
4. Operating temperature range: －40℃～＋125℃ (Including coil's self temperature rise)
5. Max operating voltage:250V
6. Marking: Part number and date code
7. Resistance to soldering heat 260 ℃ for 10 seconds
8. All specifications subject to change without notice.

Low Frequency Attenuation Common Mode Choke Coil 50 / 60Hz 0
