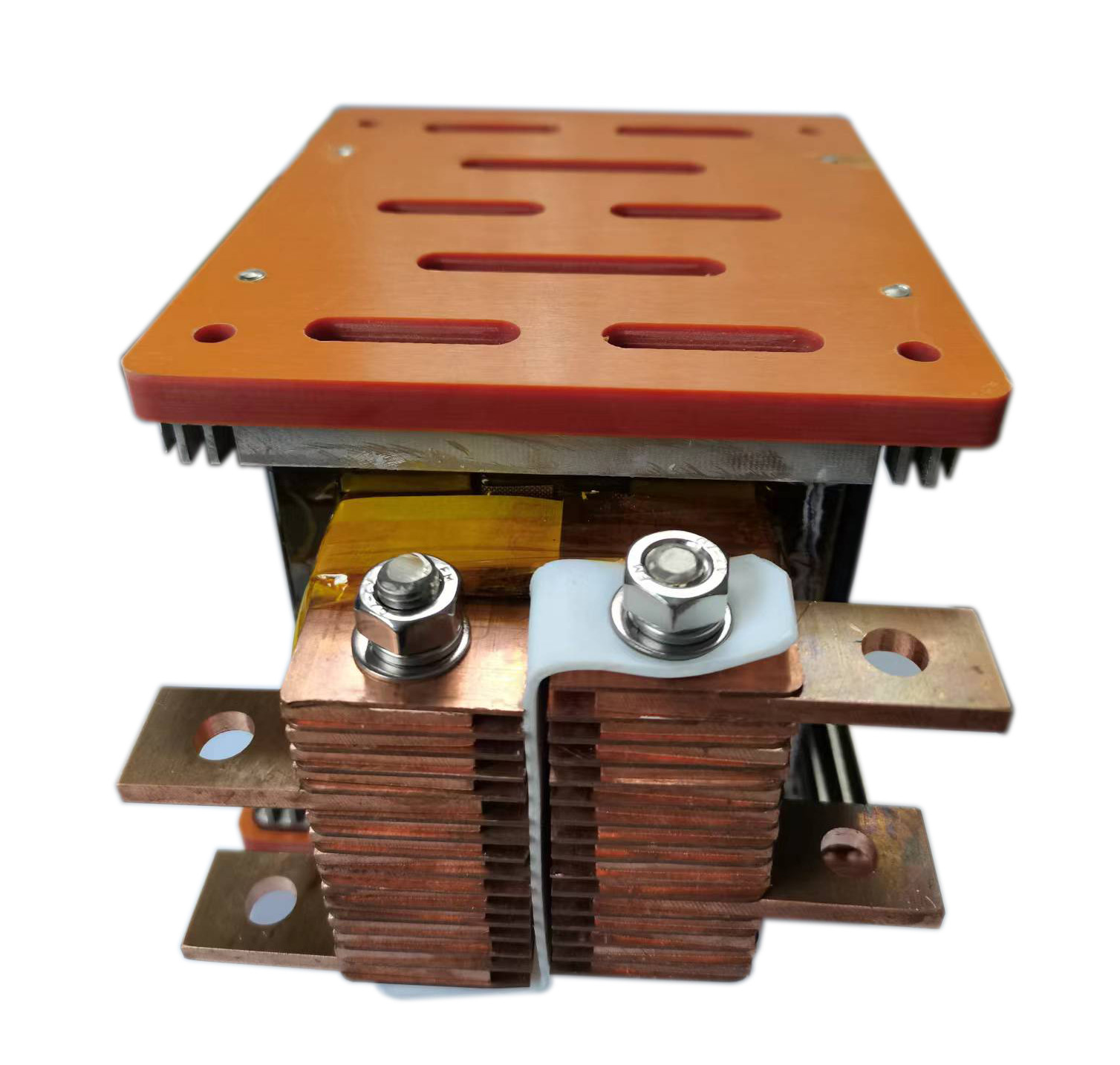

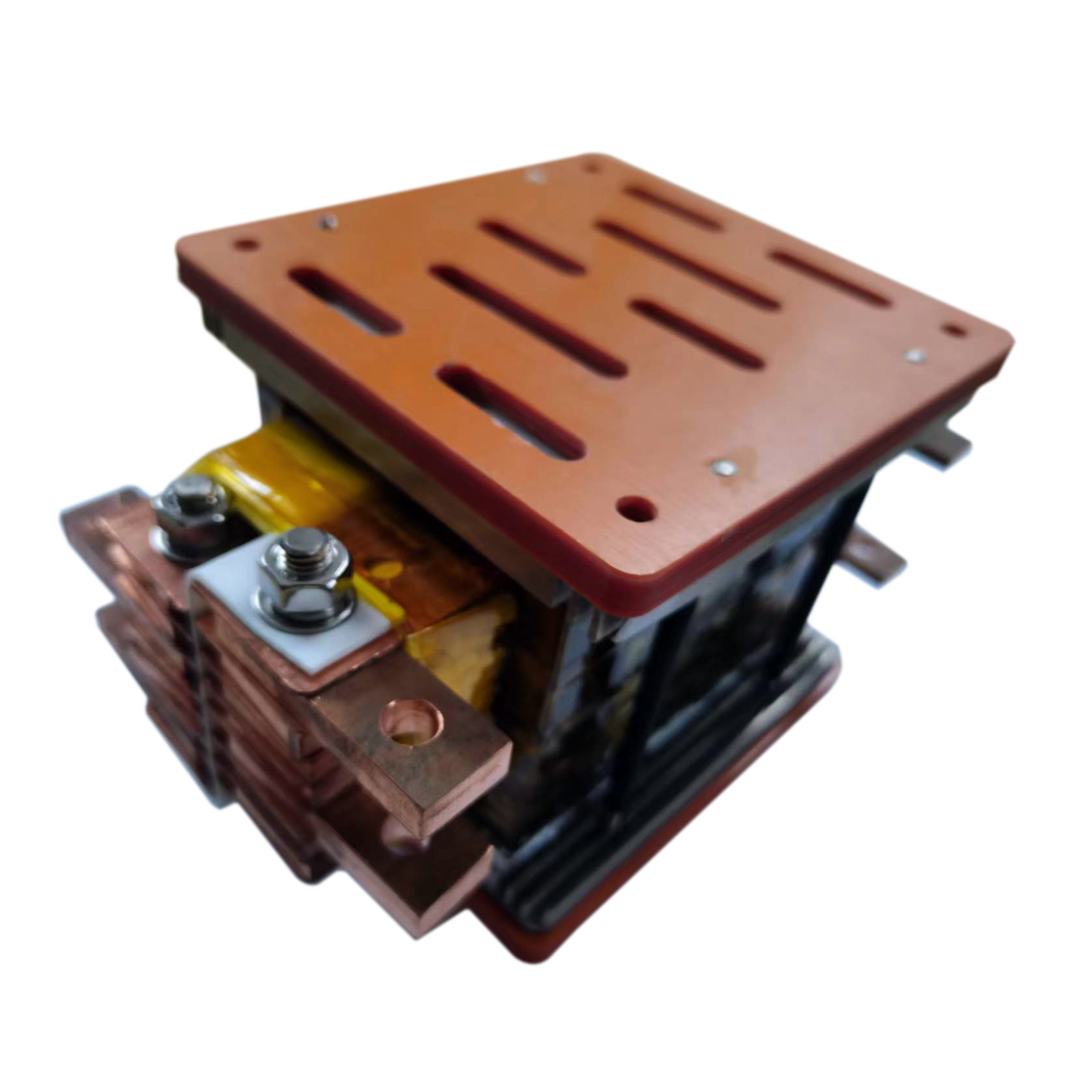

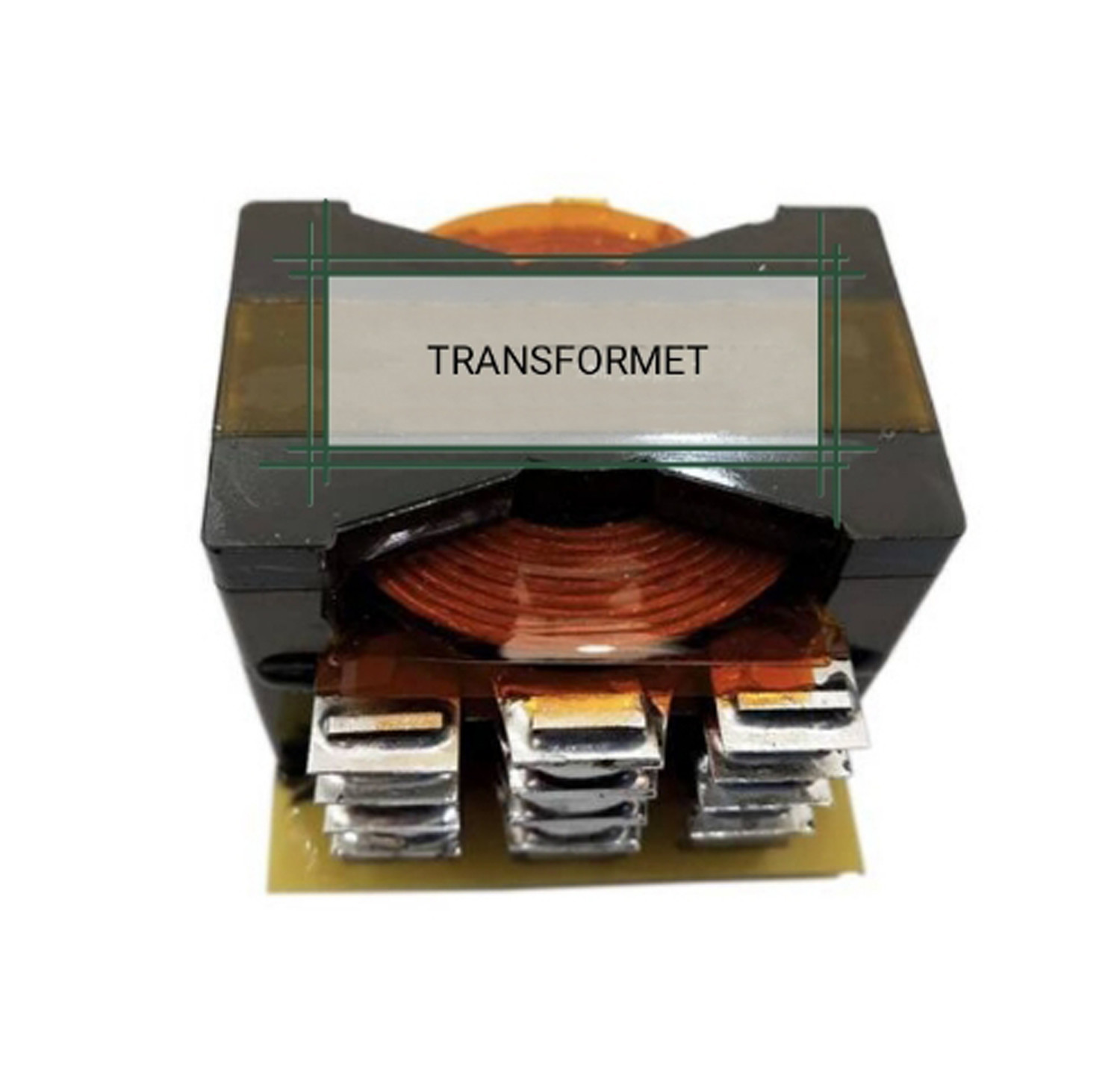

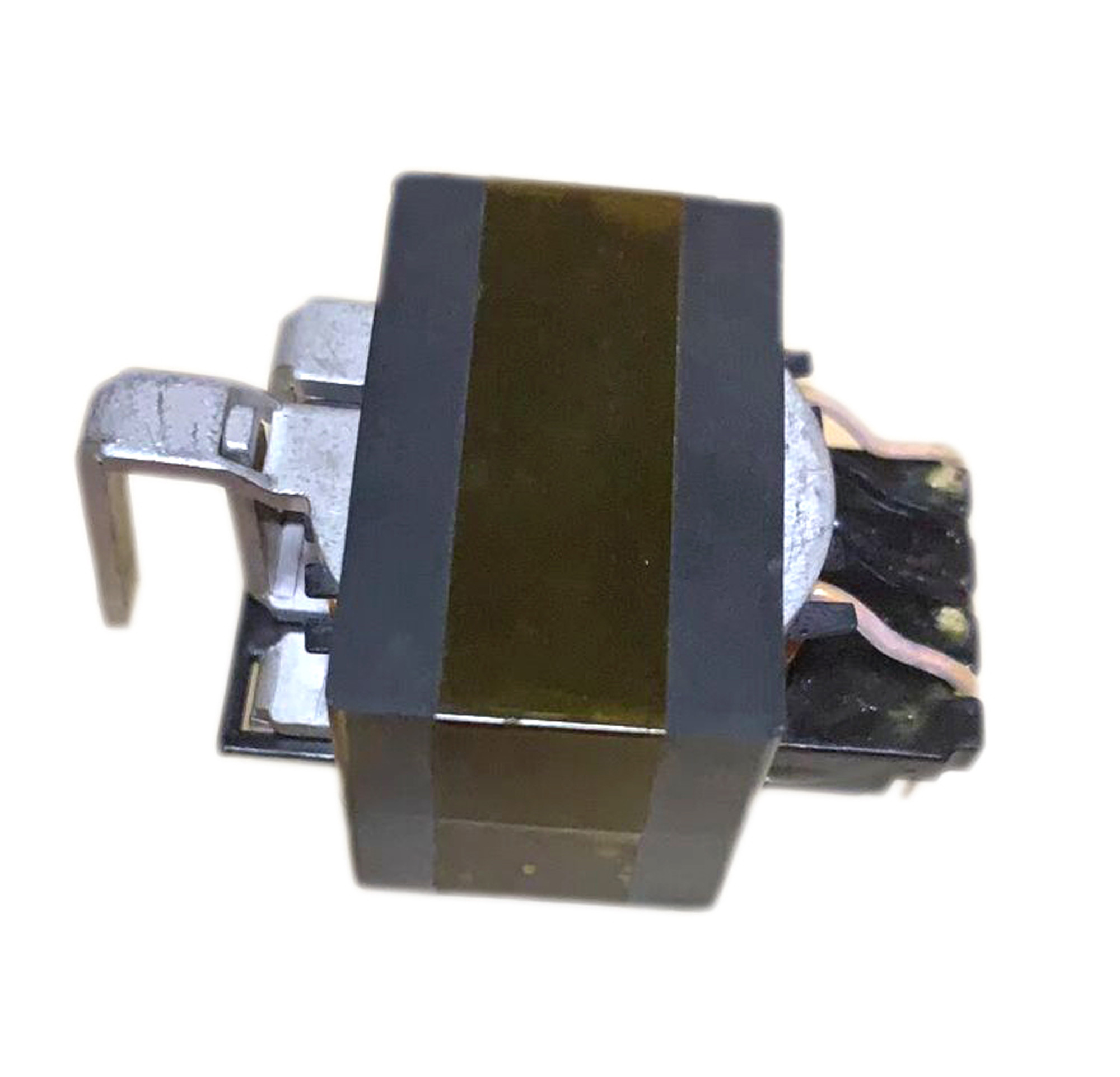

25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer

25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer
25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer 25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer 25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer 25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer

Large Image :  25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TP120125
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Name: Inverter Transformer Power: 25kW
Operation Temperature: -40℃ To +105℃ Isolation: 4000Vdc
Frequency: 50KHz~350KHz Input Voltage: 1000VDC
High Light:

Isolation Planar Transformer

,

25KW Planar Transformer

,

350KHz Frequency Isolation Transformer

25KW Planar Transformer , Isolation transformer​





  1. Turns ratio: Pri:Sec=1:1±2%
  2. Toal output power: 25KW
  3. Input voltage: 1000Vdc±10%
  4. Output voltage: 1000Vdc±10%
  5. Sec current: 25A
  6. Operating frequency: 50KHz input
  7. Volt-usec product: 3884 Max
  8. Hi-Pot: 4000Vac,50Hz,1min Pri to Sec
  9. Insulation class: F
  10. Operating temperature: -40℃ to +105℃
  11. Storage temperature: -40℃ to +65℃

25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer 0

Tag:

low profile transformer,

flat pack transformer,

planar power transformer
