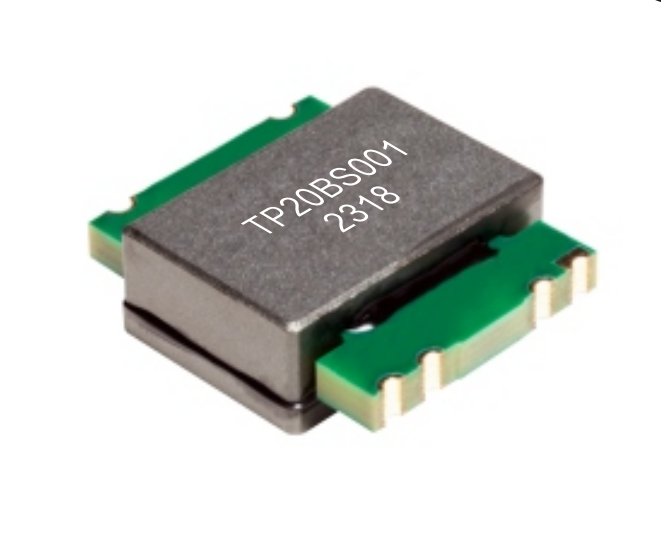

120W High Frequency Planar Transformer TP20DS Series 200-700kHz

1000
MOQ
120W High Frequency Planar Transformer TP20DS Series 200-700kHz
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

120W high frequency planar transformer

,

TP20DS series planar transformer

,

200-700kHz high frequency transformer
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: TP20DS
Document: TP20DS_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
HIGH FREQUENCY 120W PLANAR TRANSFORMERS TP20DS SERIES
Product Features
  • Power Rating: Up to 120 Watts
  • High Efficiency design
  • Compact Footprint: 22 mm x 23.5 mm
  • Low Profile: 9.0 mm height
  • High Frequency Operation: 200 kHz-700 kHz
  • Wide Temperature Range: -40°C to +125°C
Common Applications
  • High efficiency DC/DC converters with power density of 400 watts per cubic inch
  • Compatible with forward, full-bridge, half-bridge and push-pull DC/DC converter topologies
  • Ideal for telecommunications infrastructure
  • Industrial control systems
  • Automotive electronics
  • Heavy equipment vehicle systems
