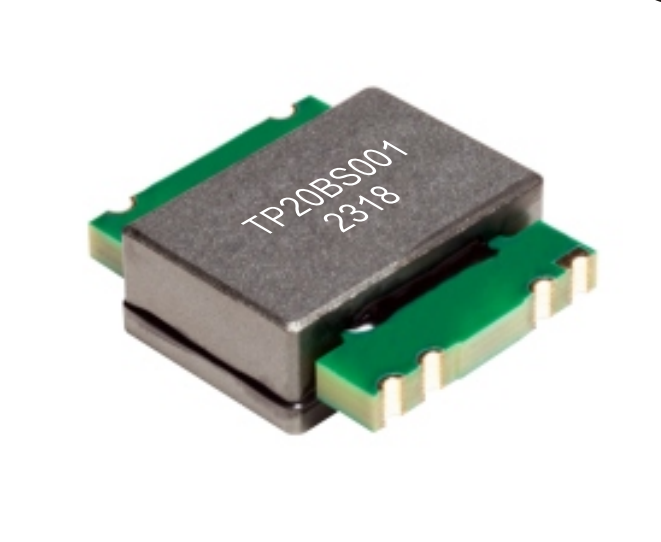

90W High Frequency Planar Transformer 200-700kHz TP20CS Series

1000
MOQ
90W High Frequency Planar Transformer 200-700kHz TP20CS Series
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

90W high frequency planar transformer

,

200-700kHz planar transformer TP20CS

,

high frequency transformer with warranty
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: TP20CS
Document: TP20CS_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
HIGH FREQUENCY 90W PLANAR TRANSFORMERS TP20CS SERIES
Key Features
  • Power rating up to 90 Watts
  • High efficiency operation
  • Compact footprint: 22 mm * 23.5 mm
  • Low profile design: 9.0 mm height
  • High frequency range: 200 kHz to 700 kHz
  • Wide operating temperature: -40℃ to +125℃
Common Applications
  • High efficiency DC/DC converters with power density of 400 watts per cubic inch
  • Compatible with forward, full-bridge, half-bridge and push-pull DC/DC converters
  • Ideal for telecommunications systems
  • Suitable for industrial control systems
  • Designed for automotive and heavy equipment vehicle systems
