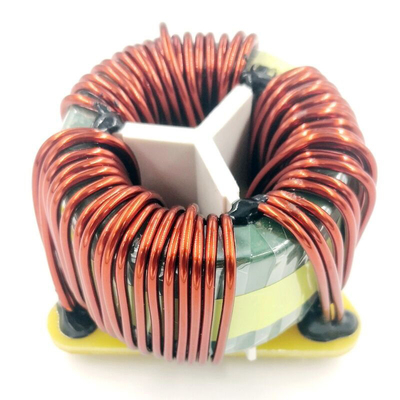

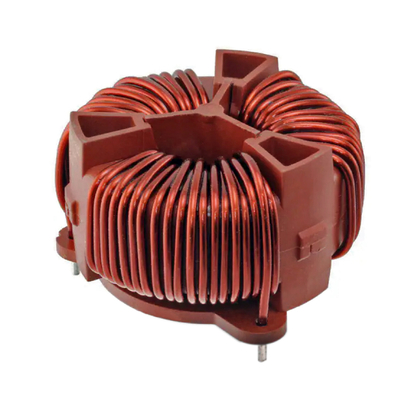

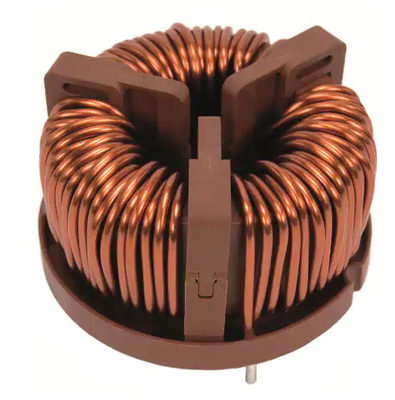

Amorphous Cores 3 Line Common Mode Choke Coils For Noise Suppression ISO9001 Certified

Amorphous Cores 3 Line Common Mode Choke Coils For Noise Suppression ISO9001 Certified
Amorphous Cores 3 Line Common Mode Choke Coils For Noise Suppression ISO9001 Certified Amorphous Cores 3 Line Common Mode Choke Coils For Noise Suppression ISO9001 Certified Amorphous Cores 3 Line Common Mode Choke Coils For Noise Suppression ISO9001 Certified

Large Image :  Amorphous Cores 3 Line Common Mode Choke Coils For Noise Suppression ISO9001 Certified Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF-3W
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Name: Toroid Inductor Type: Common Mode Inductor
Test Frequency: 100KHz Current: Up To 22A
Application: Noise Suppression Specification: RoHS, ISO9001
High Light:

Amorphous Cores Common Mode Choke Coils

,

3 Line Common Mode Choke

,

3 Line Common Mode Choke Coils

Common Mode Choke Coil , Toroidal Inductor



FEATURES:

This 3 phase common mode chokes are wound on nanocrystalline and amorphous cores. Nanocrystalline and Amorphous cores are ideally suited for 50Hz to 500Hz line frequency common mode filtering. The cores are encased in high temperature plastic casing to provide mechanical integrity.



APPLICATIONS:

Application includes installation at 50Hz or 60Hz or 400Hz 3-Phase power panels for industrial equipment, machinery, 400Hz military power generator, wind turbine power generator, DC to AC inverter, UPS, etc.





Filter Type Power Line
Number of Lines 3
Inductance 1.8 mH at 10 kHz
Current Rating (Max) 22A
DC Resistance (DCR) (Max) 9mOhm
Voltage Rating - AC 760V
Operating Temperature -40°C ~ 125°C
Mounting Type Through Hole





Packaging & Shipping



1.About price:
Our products are all custom-made products. So the network prices only for reference,different materials,processes and order quantities determine the final price.
2.About sample & shipment:
You are welcome to get samples before ordering.We provide free samples in 3-7 days. But customers should pay for the shipping cost by DHL/Fedex/UPS.
3.About product:
In general, we will design according to the parameters of physical objects provided by the customer. We are also optimized the design for our customers from a professional perspective. Please communicate fully with our sales.
