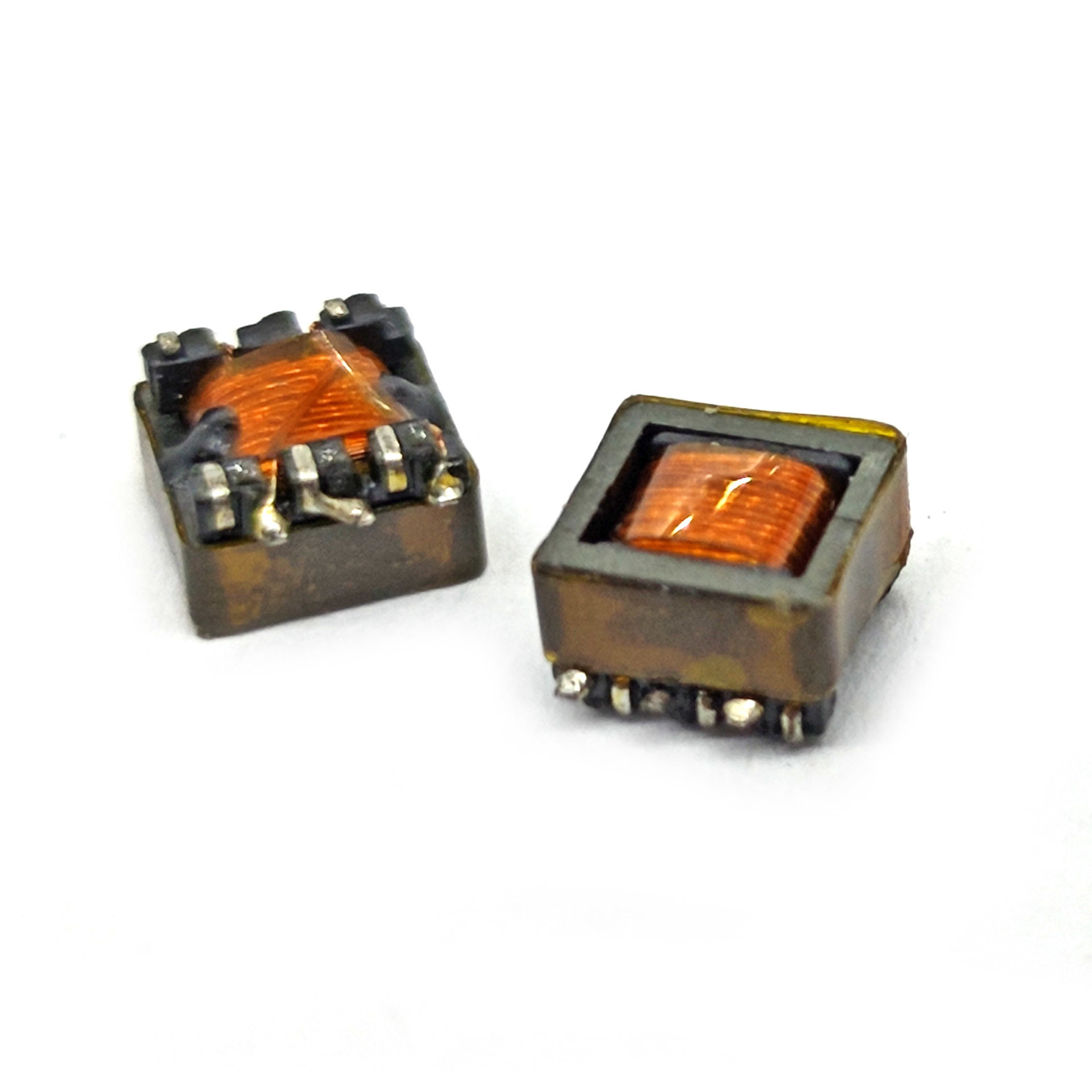

OEM High Accuracy Flash Trigger Transformer for Pulsed-Ignition Systems

Designed for compact switch-mode power solutions, the STEEC6.2 Series utilizes EEC6.2 ferrite cores with UL-certified phenolic bobbins. Precision wound with 180℃ polyurethane-enameled wire, it delivers ±15% inductance stability and reinforced isolation (0.5kV AC). Featuring #1218 high-temp tape and varnish encapsulation, it operates reliably at 130℃ ambient temperatures. Ideal for space-constrained industrial and consumer applications.

Electrical Parameters

Material List

• Bobbin: Phenolic T375J (UL 594VΦ, 130℃)

• Core: EEC6.2 K2.3P Ferrite

• Wire: Polyurethane GRD2/GRD3 (180℃)

• Tape: #1218 (180℃)

• Varnish: T42604 (130℃)

Applications
Industrial Power Systems:

• ≤20W isolated DC/DC converters

• Auxiliary power modules for PLCs

Consumer Electronics:

• LED driver backlight units

• USB-C charger feedback circuits

Safety-Critical Designs:

• Reinforced isolation for medical power supplies

• HVAC control board voltage regulation
