Toroidal SMD Gate Drive Transformer with 4.5KVAC Isolation for 50kHz or 65kHz Operation Supporting up to 5W

6000
MOQ
Toroidal SMD Gate Drive Transformer with 4.5KVAC Isolation for 50kHz or 65kHz Operation Supporting up to 5W
Features Gallery Product Description Chat Now
Features
Specifications
Operating Frequency: 50kHz Or 65kHz
Insulation: 4.5KVAC (Pri-Sec), 60s
Operating Temperature: -40°C To +125°C
Output Power: Supports Up To 5W
Duty Cycle Range: 10% To 50%
Highlight:

Toroidal SMD gate drive transformer

,

High frequency transformer with 4.5KVAC isolation

,

SMD transformer for gate drive applications
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: SMB-GT09
Document: GT09 Series SMD Gate Drive ...t_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: T/T,L/C
Product Description

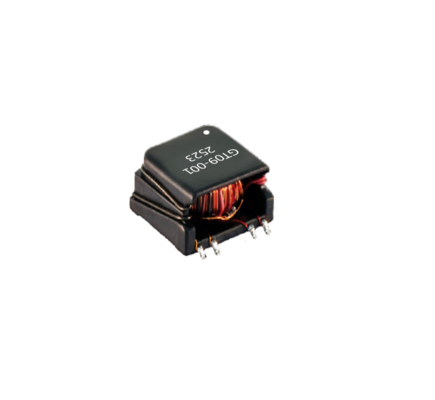

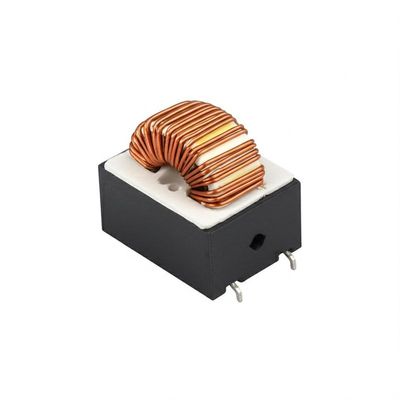

Toroidal SMD Gate Drive Transformer with 4.5KVAC Isolation
Mission-Critical Switching Performance in Compact Form
Engineered for precision control of IGBT/MOSFET power modules, our SMD Transformer series leverages toroidal core technology to deliver superior magnetic coupling and minimal EMI radiation. With reinforced isolation meeting 4.5KVAC Isolated Transformer standards (tested at 60 seconds), it ensures safe operation in industrial motor drives and 800V EV battery systems. The surface-mount design saves 50% PCB space while supporting 5W output power at 65kHz—enabling robust switching without compromising reliability.
Electrical Specifications
Parameter Value (GT09 Series) Test Condition
Turns Ratio 1:1.25±1.1 to 1:1.71±1.1 (model-dep) -
Primary Inductance 470μH-750μH Min 50-100kHz, 0.1V (HP4284A)
Leakage Inductance ≤4μH Max (GT09-001) 100kHz, 0.1V
DCR Primary 0.085Ω-0.115Ω Max DC micro-ohmmeter
Input Voltage 13.5V-15V DC Continuous operation
Output Current Up to 330mA (GT09-001) 25°C ambient
Isolation Voltage 4.5KVAC, 60s Hi-Pot test
Operating Temp -40°C to +125°C IEC 60068-2
Critical Note: Maintain ≥8mm PCB creepage distance for full isolation integrity.
Applications
Electric Vehicle Powertrains
Isolates low-voltage control circuits from 800V battery traction inverters.
Pair with: Current sensors for overcurrent protection.
Industrial Motor Drives
Provides gate drive power for SiC MOSFETs in PLC-controlled servo systems.
Pair with: EMI filters to suppress 65kHz switching noise.
Renewable Energy Converters
Enables duty-cycle adjustment (10%-50%) in solar microinverters.
Pair with: Power inductors for DC/DC auxiliary supplies.
FAQ
Q: How does this differ from standard power transformers?
A: Designed specifically for Gate Drive Transformer applications:
  • Higher switching frequency (50-65kHz vs. 50/60Hz)
  • Lower leakage inductance (≤4μH vs. >100μH)
  • Reinforced isolation (4.5KVAC vs. 2.5KVAC typical)
Q: Can it eliminate shoot-through in half-bridge circuits?
A: Yes. The Toroidal SMD Transformer's tight coupling (±1.1% ratio tolerance) minimizes propagation delay skew. Combine with dead-time controllers for optimal results.
Q: Custom turn ratios supported?
A: Standard ratios 1:1.25/1.4/1.5/1.71 (GT09-001 to 004). Contact for custom windings.
