Compact EN55032 Class B EMC Compliant AC/DC-DC Converter with Class II Isolation for Industrial and Consumer Applications

1000
MOQ
Compact EN55032 Class B EMC Compliant AC/DC-DC Converter with Class II Isolation for Industrial and Consumer Applications
Features Gallery Product Description Chat Now
Features
Specifications
Function: Inductance
Insulation Class: Class F
Resistance Tolerance: Customized
Certifications: CE, RoHS, UL
Feature: High Permeability, Low Loss
Payment Term: 30% TT In Advance ,70% Before Shipping
Ambient Temperature: -40 -- 85℃
Media Available: Customized
Storage Temperature: -10―40℃
Working Frequency: 50/60Hz
Potting: Epoxy
Quality: 100% Test Before Packing
Highlight:

EN55032 Class B EMC Compliant AC/DC-DC Converter

,

Class II Isolation AC/DC-DC Converter

,

Compact AC/DC-DC Converter
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: DC-DC-converter
Document: shinhom-converter_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description

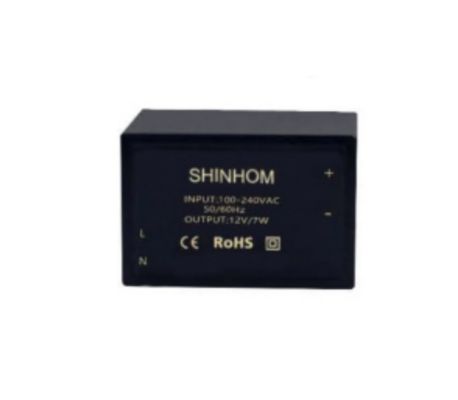

SWAC0TS Series 7W AC/DC-DC Converter
The SWAC0TS Series is a compact, high-performance AC/DC-DC converter module designed for global applications, featuring dual wide-range AC and DC input with built-in lightning/surge protection, pulse group attenuation, and differential/common mode filters. With synchronous rectification delivering up to 88% efficiency and ultra-low no-load power consumption below 0.1W, this vacuum-potted module ensures reliable operation in harsh environments by resisting dust and moisture. Compliant with EN55032 Class B EMC and Class II isolation safety standards, it requires no peripheral circuit design and supports natural cooling, making it an ideal power solution for space-constrained applications.
Key Features
  • Input Voltage Range: AC 85-265V (global wide-range)
  • Output Voltage: 5V, 6V, 9V, 12V, 15V, 20V, 24V (model-dependent)
  • Rated Current: Up to 1400mA (e.g., 5V model)
  • Efficiency: Up to 88% (synchronous rectification)
  • No-Load Power Consumption: <0.1W
  • Protection: Overload (>150%), short circuit (self-recovery), overheat (module surface ≥100°C)
  • EMC Compliance: EN55032 Class B with built-in filter circuits
  • Isolation Rating: Class II, Hi-Pot 3000VAC/1min
  • Operating Temperature: -40°C to +70°C
  • Size: 28*37*9mm (compact plastic housing)
  • Cooling: Natural convection
  • Weight: 39g (±2g)
Technical Specifications
Parameter Value
Input Voltage Range AC 85-265V
Output Voltage Options 5V, 6V, 9V, 12V, 15V, 20V, 24V
Maximum Current (5V model) 1400mA
Efficiency Up to 88%
No-Load Consumption <0.1W
Operating Temperature -40°C to +70°C
Applications
  • Industrial Automation: Power supplies for control systems, sensors, and PLCs.
  • Consumer Electronics: Embedded power modules in appliances, LED drivers, and portable devices.
  • Telecommunications: Base stations and network equipment requiring stable DC output with EMC protection.
  • Medical Equipment: Low-noise power conversion for diagnostic instruments and monitoring systems.
  • Embedded Systems: PCB-mounted power solutions in IoT devices and computing platforms.
