Ferrite Core Current Transformer Operating Frequency 2kHz to 500kHz Rated Input Current 25A to 50A 3500VDC Hi Pot Tested for PCB Protection Circuits

1000
MOQ
Ferrite Core Current Transformer Operating Frequency 2kHz to 500kHz Rated Input Current 25A to 50A 3500VDC Hi Pot Tested for PCB Protection Circuits
Features Gallery Product Description Chat Now
Features
Specifications
Operating Frequency:: 2kHz – 500kHz
Insulation:: High Insulation Design, Hi-Pot Tested At 3500VDC
Storage Temperature:: -30°C To +80°C
Core Material:: Ferrite Core
Mounting Type:: Through Hole, PCB Mount
Rated Input Current:: 25A To 50A
Rated Output Current:: 25mA To 500mA
Customize Design:: OEM / ODM Available, Turns Ratio And Output Current Customizable
Highlight:

PCB Protection Circuits Current Transformer

,

2kHz to 500kHz Current Transformer

,

25A to 50A Current Transformer
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: ACST010F/FH
Document: ACST010F-FH series_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
High Reliability Through Hole High Frequency Current Transformer for PCB Protection Circuits

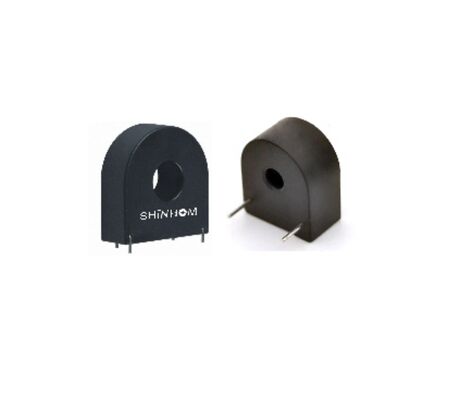

The ACST010F/FH Series is a high performance High Frequency Current Transformer designed for accurate pulse current detection and circuit protection in switching power supply applications. Featuring a compact through-hole structure, this Through Hole Current Transformer is optimized for direct PCB mounting, ensuring stable electrical performance and easy integration in high-frequency electronic systems.
Engineered with a ferrite core and flame-retardant PBT housing, the ACST010F/FH Series delivers reliable signal conversion across a wide operating frequency range from 2kHz to 500kHz. Its robust insulation structure and high dielectric strength make it a dependable PCB Mount Current Transformer for demanding industrial environments.

Key Features
  • High frequency current transformer optimized for pulse current detection
  • Through-hole design for direct PCB mounting and secure installation
  • Ferrite core construction ensures stable performance at high frequencies
  • Wide turns ratio options to support different current sensing requirements
  • High dielectric strength with Hi-Pot rating up to 3500VDC
  • Flame-retardant PBT case with epoxy resin potting for enhanced reliability

Electrical Characteristics
(Model dependent)
Turns Ratio 1:50 to 1:2000
Rated Input Current 25A to 50A
Rated Output Current 25mA to 500mA
Hi-Pot (Vdc) 3500VDC
Working Frequency Range 2kHz - 500kHz

Environmental Specifications
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C

Applications
  • Switching Power Supply Circuit Protection
  • High Frequency Pulse Current Detection
  • PCB-Based Power Control Systems
  • Industrial Power Electronics
  • Embedded Current Monitoring Modules

Why Choose ACST010F/FH Series?
The ACST010F/FH Series combines compact structure, wide frequency response, and high insulation reliability, making it an ideal Current Transformer solution for modern high-frequency electronic designs. Its through-hole PCB mount configuration ensures long-term stability, while multiple turns ratio options provide flexibility for diverse current sensing applications.
