Name: Low Insertion Loss High Power Tolerance Wide Frequency Coverage Waveguide Components for RF Microwave Systems
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Waveguide Components
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

1: After Strict Production Process Control And Testing

2: Excellent Frequency Response

3: Low Insertion Loss

4: High Power Tolerance

5: Comply With International Standards And Have Good Compatibility

Highlight:

Low Insertion Loss Waveguide Components

High Power Tolerance RF Microwave Components

Wide Frequency Coverage Microwave Waveguide

Basic Infomation

Place of Origin: China

Brand Name: SHINHOM

Certification: RoHS/ISO/UL/CE/IATF16949/CNAS

Model Number: Waveguide Components

Document: Waveguide-components_.pdf

Payment & Shipping Terms

Delivery Time: 2~8weeks

Payment Terms: L/C,T/T

Gallery

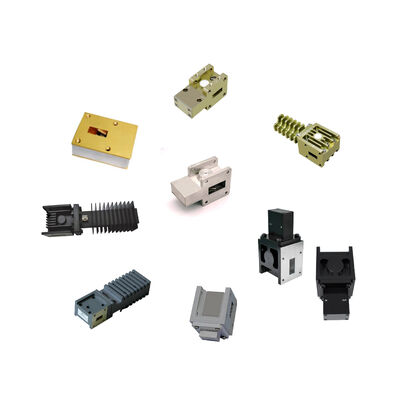

Low Insertion Loss High Power Tolerance Wide Frequency Coverage Waveguide Components for RF Microwave Systems

Product Description

Waveguide Components

Waveguide components are essential passive microwave devices used to guide electromagnetic waves with minimal loss and high reliability. Thanks to their inherent advantages — low insertion loss, high power handling, and excellent frequency response — they are widely applied in RF and microwave systems including communication, radar, satellite, aerospace, and test platforms.

Engineered for precision performance and built to international standards, our waveguide solutions offer both standard and customizable options, ensuring seamless integration into diverse system architectures.

Key Features

Low Insertion Loss: Precision design for minimal signal attenuation across the operating band.
Wide Frequency Coverage: Supports a broad range from low GHz to high microwave frequencies.
High Power Tolerance: Capable of handling high RF power levels with stable performance.
Stable Mechanical Structure: Durable construction with corrosion-resistant metal housings suitable for demanding environments.
Customizable Solutions: Frequency ranges, mechanical sizes, flange types, and interface options can be tailored.
International Compatibility: Designed to meet industry standards and integrate with global RF systems.

Typical Applications

Radar & Defense Systems - high reliability in extreme environments.
Satellite & Space Communications - low loss and high signal integrity.
Telecom & 5G Infrastructure - broadband waveguide handling in telecom backhaul.
Microwave Test & Measurement - precision components for calibrated systems.
Aerospace & Navigation Equipment - robust solutions for mission-critical platforms.

Product Families

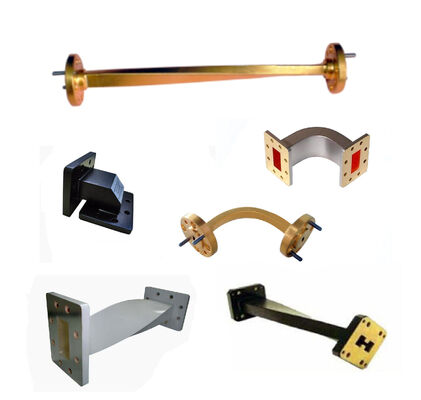

Flexible Waveguides
Straight Waveguide Sections
Waveguide Bends & Twists
Waveguide Accessories
Waveguide Attenuators
Waveguide Couplers

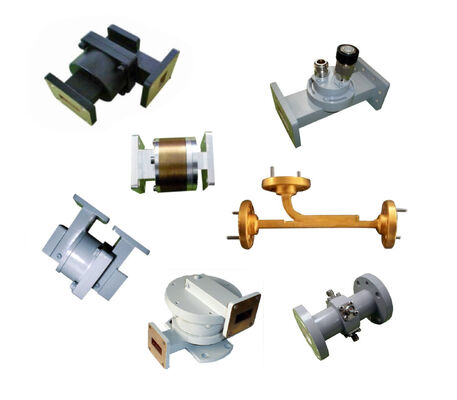

Waveguide Isolators & Circulators

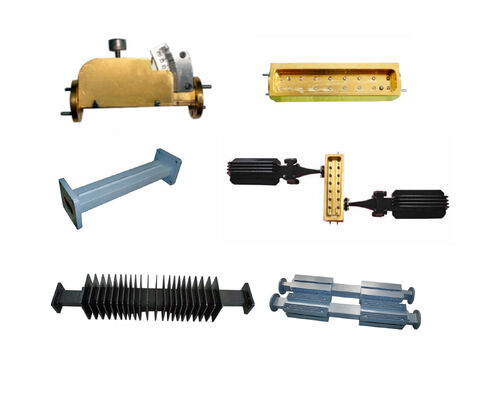

Waveguide Filters

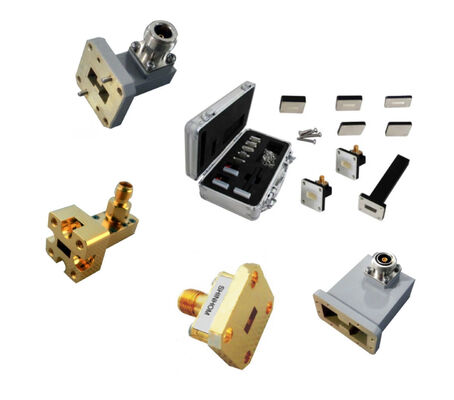

Calibration Kits
Waveguide Adapters & Transitions
Pressure Windows
Power Dividers & Combiners

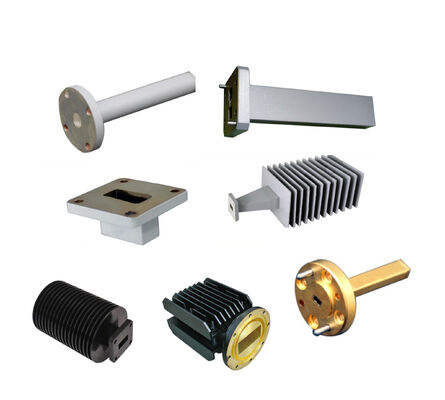

Waveguide Terminations & Loads

Why Choose Our Waveguide Components

Precision Engineering: Designed and machined for reliable RF performance.
Strict Quality Control: Tested to ensure stable performance over time.
Flexible Customization: Options tailored to specific application requirements.
Global Compatibility: Meets international RF and microwave system standards.
Comprehensive Support: Technical assistance to optimize component selection.
