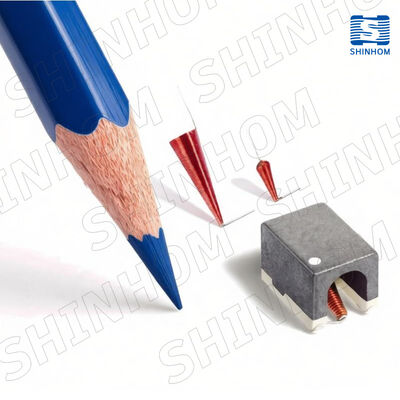

BC Series Broadband Conical Inductor with Flying Leads for 10 MHz–40 GHz Applications and Low DCR

5000
MOQ
BC Series Broadband Conical Inductor with Flying Leads for 10 MHz–40 GHz Applications and Low DCR
Features Gallery Product Description Chat Now
Features
Specifications
Inductance Range: 0.22 μH To 8.0 μH (±5%)
DCR (max): 0.10 Ω To 3.39 Ω
Irms (max): 230 MA To 1200 MA
Mounting Type: Flying Leads (through-hole, Adjustable Angle)
Moisture Sensitivity Level (MSL): Level 1 (unlimited Floor Life)
Packaging: 25 Pcs Per Tray
Highlight:

10 MHz–40 GHz Broadband Conical Inductor

,

Flying Leads RF Inductor

,

Low DCR Microwave Inductor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: BC-Seires inductor
Document: BC-Seires inductor_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
BC Series Broadband Conical Inductors with Flying Leads (10 MHz-40 GHz)

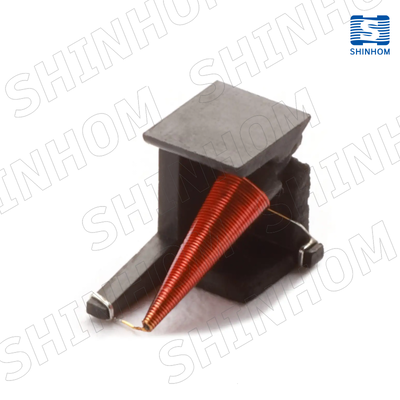

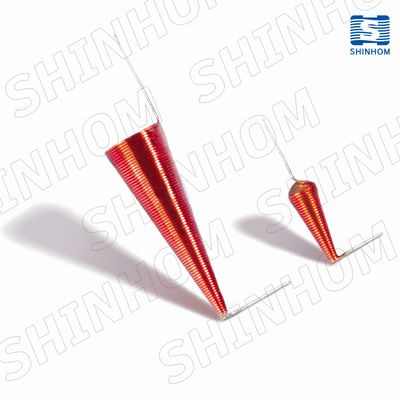

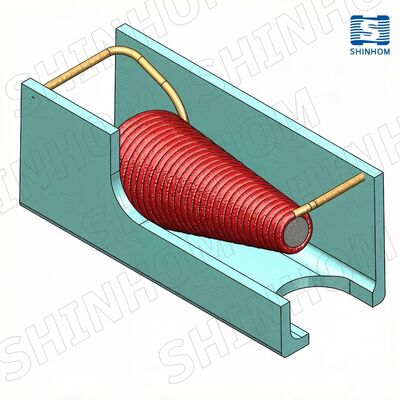

Our BC Series broadband conical inductors are engineered for high-frequency applications up to 40 GHz. The unique conical structure minimizes stray capacitance, while flying leads provide flexible mounting options. These inductors are ideal for ultra-wideband bias tees, RF modules, and microwave circuits.
Key Features
  • Broadband operation: 10 MHz to 40 GHz
  • Conical design reduces parasitic capacitance

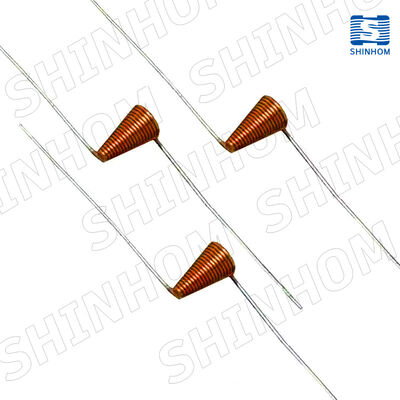

  • Flying leads for precise positioning and adjustable mounting angle
  • Low DCR and high current handling (up to 1200 mA Irms)
  • Inductance range: 0.22 μH to 8.0 μH
  • Operating temperature: –40°C to +125°C
  • MSL Level 1 (unlimited floor life)
  • RoHS, Halogen Free & REACH compliant
Electrical Specifications (at 25°C)
Part Number Inductance (±5%) DCR (Ω) max Irms (mA)
BC-R22J0.22 μH0.101200
BC-R53J0.53 μH0.151060
BC-1R2J1.20 μH1.05270
BC-1R6J1.65 μH0.60490
BC-2R3J2.35 μH1.61270
BC-2R7J2.75 μH0.40675
BC-6R3J6.35 μH0.92480
BC-6R5J6.50 μH0.70650
BC-8R0J8.00 μH3.39230
Inductance measured at 10 MHz, 0.1 Vrms, 0 Adc. Irms rating based on 40°C temperature rise from 25°C ambient.

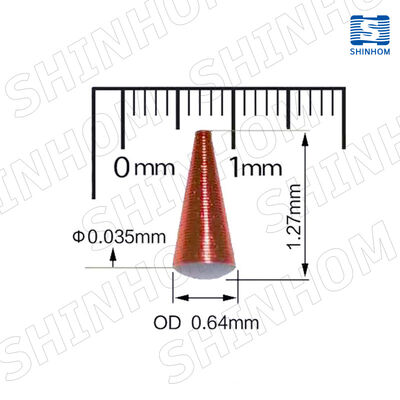

Mechanical Dimensions (mm)
Part Number A (±0.05) B max C max D (±0.25) E (±0.25)
BC-R22J0.201.453.514.2162.54
BC-R53J0.201.804.554.2162.54
BC-1R2J0.201.142.924.2162.54
BC-1R6J0.201.704.424.2162.54
BC-2R3J0.201.523.814.2162.54
BC-2R7J0.202.727.876.9852.54
BC-6R3J0.202.958.826.9852.54
BC-6R5J0.203.5611.059.9062.54
BC-8R0J0.201.886.024.5722.54
Applications
  • Ultra-wideband bias tees
  • RF & microwave modules
  • 5G infrastructure, radar, satellite communications
  • Test & measurement equipment
  • Broadband communication systems
Packaging & Supply
  • Packaging: 25 pieces per tray
  • Storage temperature: –40°C to +125°C (component), –40°C to +80°C (tape & reel)
  • MOQ: Negotiable (small quantities supported for samples)
  • Lead time: 2–3 weeks for mass production
  • Certifications: RoHS, REACH, Halogen Free
Contact Information
For pricing, samples, or technical inquiries, please contact us:
Email: sales@shinhom.com
