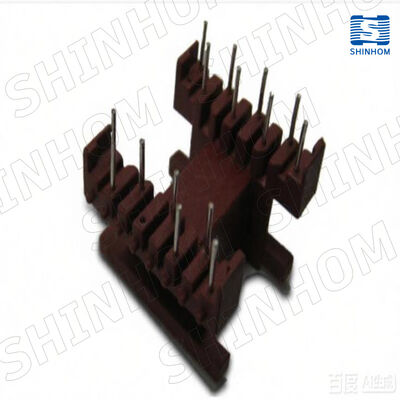

EF20 8+8 Pin Ferrite Core Bobbin with UL 94V-0 Flame Retardant PET Material for Flyback Transformers

5000
MOQ
EF20 8+8 Pin Ferrite Core Bobbin with UL 94V-0 Flame Retardant PET Material for Flyback Transformers
Features Gallery Product Description Chat Now
Features
Specifications
Pin Configuration: 8+8-pin
Material: PET
Flame Rating: UL 94V-0
Core Compatibility: EF20 Ferrite Core
UL Material File: E14797
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: EE20
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
EF20 8+8-pin Bobbins for Ferrite Core, Used in UL Flyback Transformers
Product Overview

This EF20 8+8-pin ferrite core bobbin is designed for UL flyback transformer applications, providing reliable mechanical structure and insulation performance. Made of PET material with a UL 94V-0 flame rating, it meets safety and compliance requirements for power transformer manufacturing.

The bobbin supports a wide range of ferrite core transformer designs, accommodating multiple core sizes and structures commonly used in power supplies, LAN transformers, ADSL transformers, and inductive components.

Key Features
8+8 Pin Configuration
Suitable for standard flyback transformer winding structures
UL-Approved Insulation Material
PET material, UL 94V-0 flame retardant
High Reliability Structure
Stable mechanical strength for transformer assembly
Wide Compatibility
Supports various ferrite core and transformer series
Versatile Applications
Suitable for flyback, LAN, ADSL, and inductor applications
Material & Compliance
  • Material: PET
  • Flame Rating: UL 94V-0
  • UL Material File: E14797
  • Application Compliance: UL flyback transformer designs
Additional Structures
  • Toroidal core cases and base holders
  • LAN transformer headers and covers
  • ADSL transformer bobbins
  • Power inductor bases
  • ETD / EF / RM / UU / ER series clamps
Applications
  • Flyback transformers
  • Power supply transformers
  • LAN & ADSL transformers
  • Power inductors
  • Ferrite core magnetic components
