DIP Common Mode Choke Flat Wire High Current Inductor

Negotiation
MOQ
Negotiation
Price
DIP Common Mode Choke Flat Wire High Current Inductor
Features Gallery Product Description Chat Now
Features
Specifications
Wire: Flat Copper Wire
Turns Ratio: 1:1
Core: Hollow Square
Test Frequency: 10kHz
Phase: Single Phase
Operating Temperature: -40ºC To +125ºC
Highlight:

High Current Common Mode Choke

,

DIP Common Mode Choke

,

Flat Wire Common Mode Choke
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

DIP Common Mode Choke, Flat Wire High Current Inductor





FEATURES:

  • Inductance: 130uH Min
  • DCR: 0.3mΩ Max
  • Rated current:   120A
  • Rated voltage (V): 85 to 265V AC, 50/60Hz
  • Turns ratio: n1: n2=1:1
  • Hi-Pot: 3000VAC
  • Insulation resistance: 100MΩ min at 500DC
  • Temperature rise: 50°C max



APPLICATION:

  • Personal Computer
  • Switching power supply, Adapter and UPS
  • Computer products
  • DVD
  • LED power supply
  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers


NOTES:.

  • Inductance Testing: HP4284A, 100kHz/0.25V or equivalent
  • RDC:QuadTech 1880 Milliohmmeter
  • Irms Temperature rise 40℃Max Reference Ambient temperature
  • Solderability: 75% of the lead wire Shall be covered
  • Soldering Methods: Wave,Reflow
  • Operating Temperature:-25℃ to +125℃
  • Storage Temperature: -25℃ to +125℃

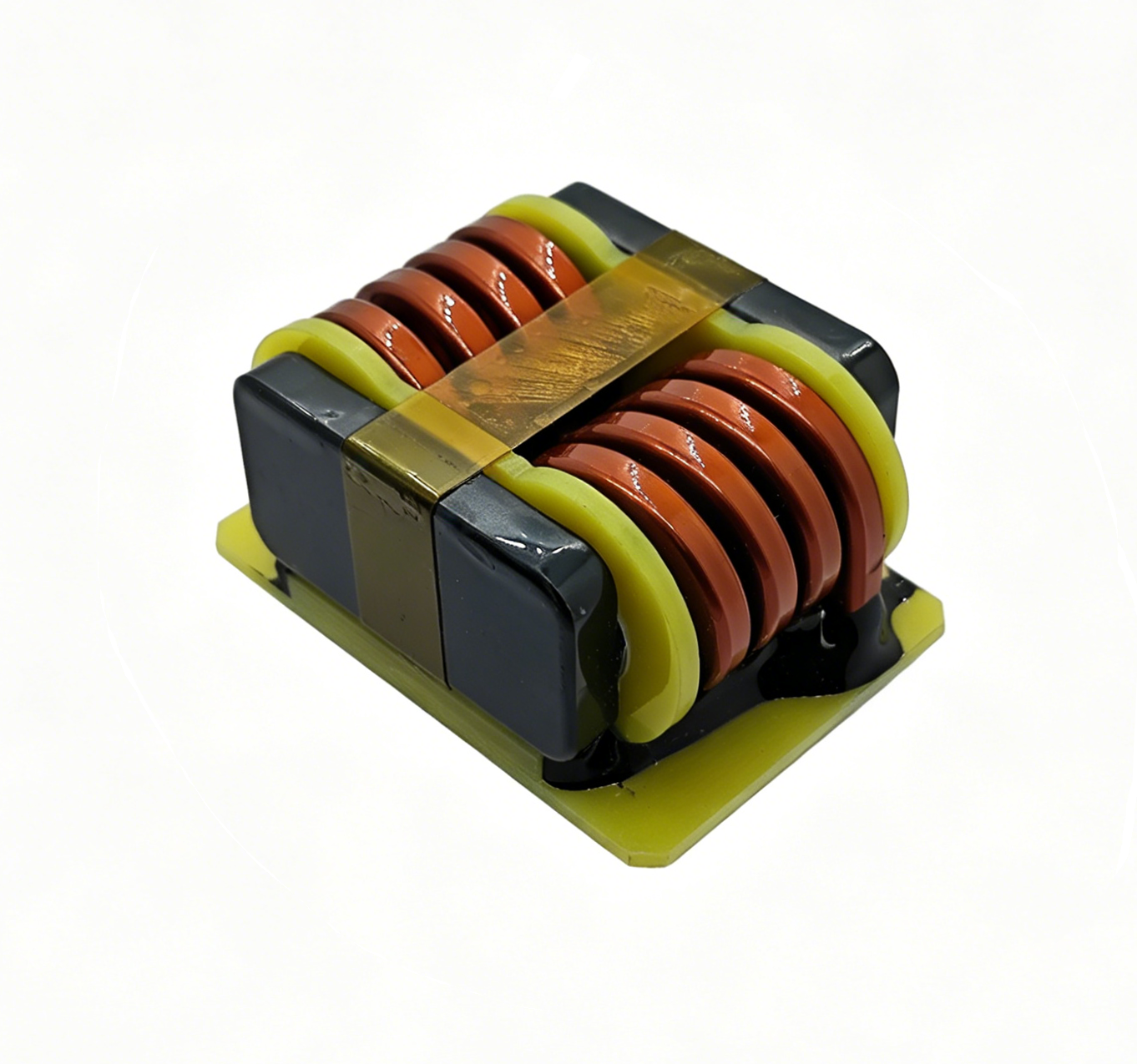

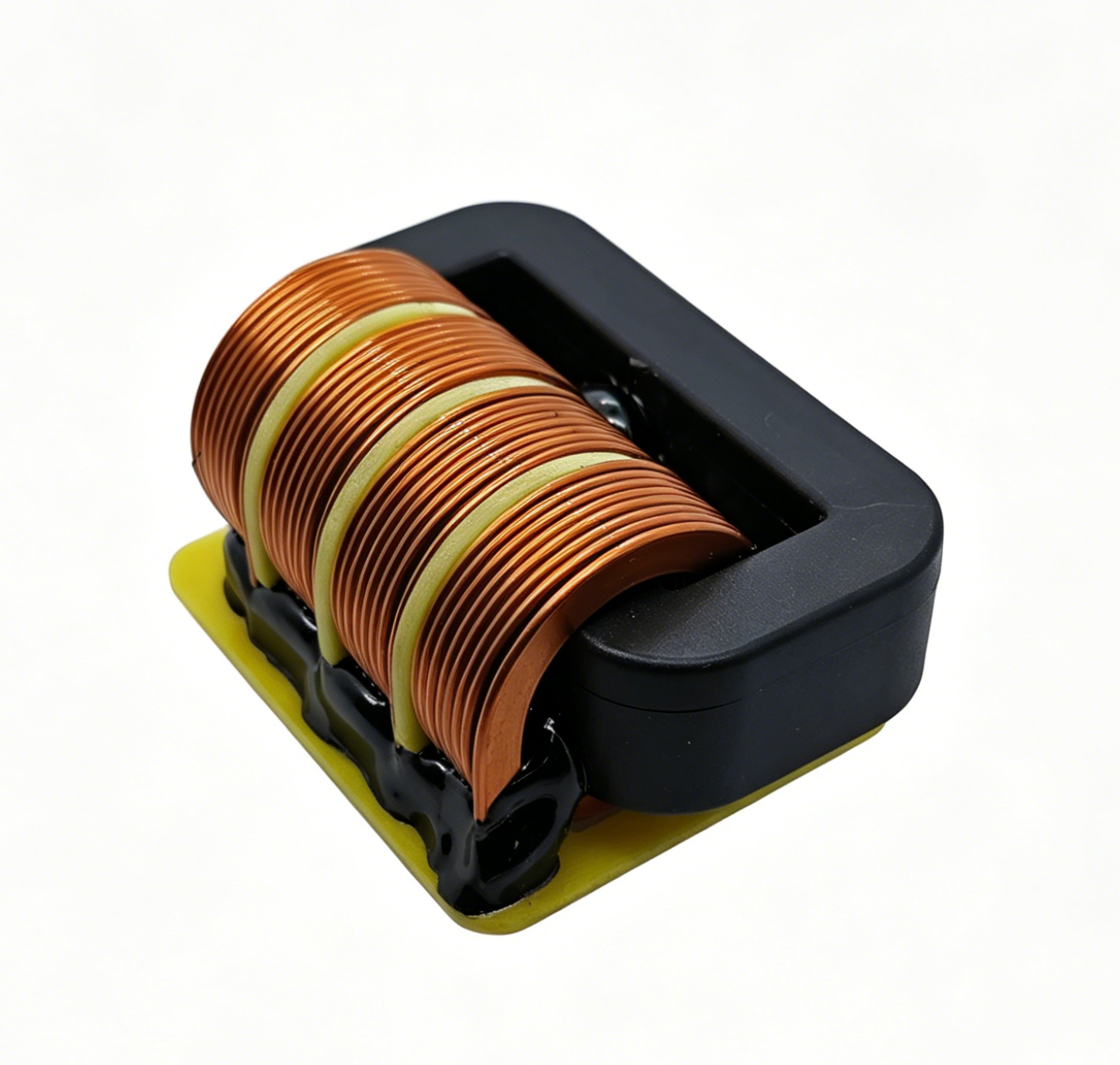

DIP Common Mode Choke Flat Wire High Current Inductor

Notes: Customized is available
