4 Windings Common Mode Choke, Flat Wire High Current Inductor

Negotiation
MOQ
Negotiation
Price
4 Windings Common Mode Choke, Flat Wire High Current Inductor
Features Gallery Product Description Chat Now
Features
Specifications
Wire: Flat Copper Wire
Turns Ratio: 1:1:1:1
Core: Hollow Square
Test Frequency: 10kHz
Phase: Single Phase
Operating Temperature: -40ºC To +125ºC
Highlight:

High Current Inductor Common Mode Choke

,

4 Windings Common Mode Choke

,

Flat Wire Common Mode Choke
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF7037D-4W
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

DIP Common Mode Choke, Flat Wire High Current Inductor





FEATURES:

  • Inductance: 1.0mH Min
  • DCR: 3.5mΩ Max
  • Rated current:   45A
  • Rated voltage (V): 85 to 265V AC, 50/60Hz
  • Turns ratio: 1:1:1:1
  • Insulation resistance: 100MΩ min at 500DC
  • Temperature rise: 50°C max



APPLICATION:

  • Personal Computer
  • Switching power supply, Adapter and UPS
  • Computer products
  • LED power supply
  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers


NOTES:.

  • Inductance Testing: HP4284A, 100kHz/0.25V or equivalent
  • RDC:QuadTech 1880 Milliohmmeter
  • Irms Temperature rise 40℃Max Reference Ambient temperature
  • Solderability: 75% of the lead wire Shall be covered
  • Soldering Methods: Wave,Reflow
  • Operating Temperature:-25℃ to +125℃
  • Storage Temperature: -25℃ to +125℃

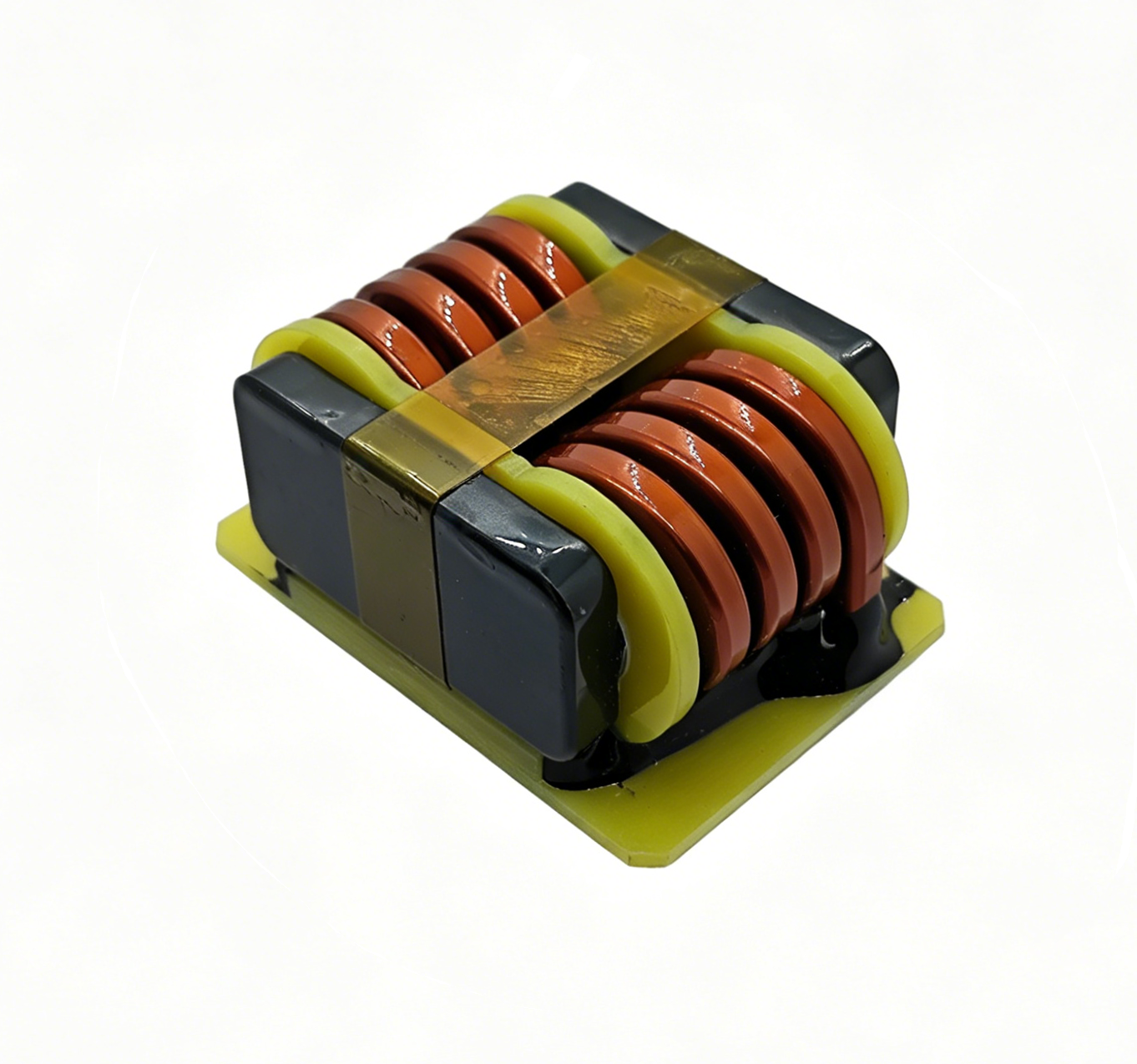

4 Windings Common Mode Choke, Flat Wire High Current Inductor

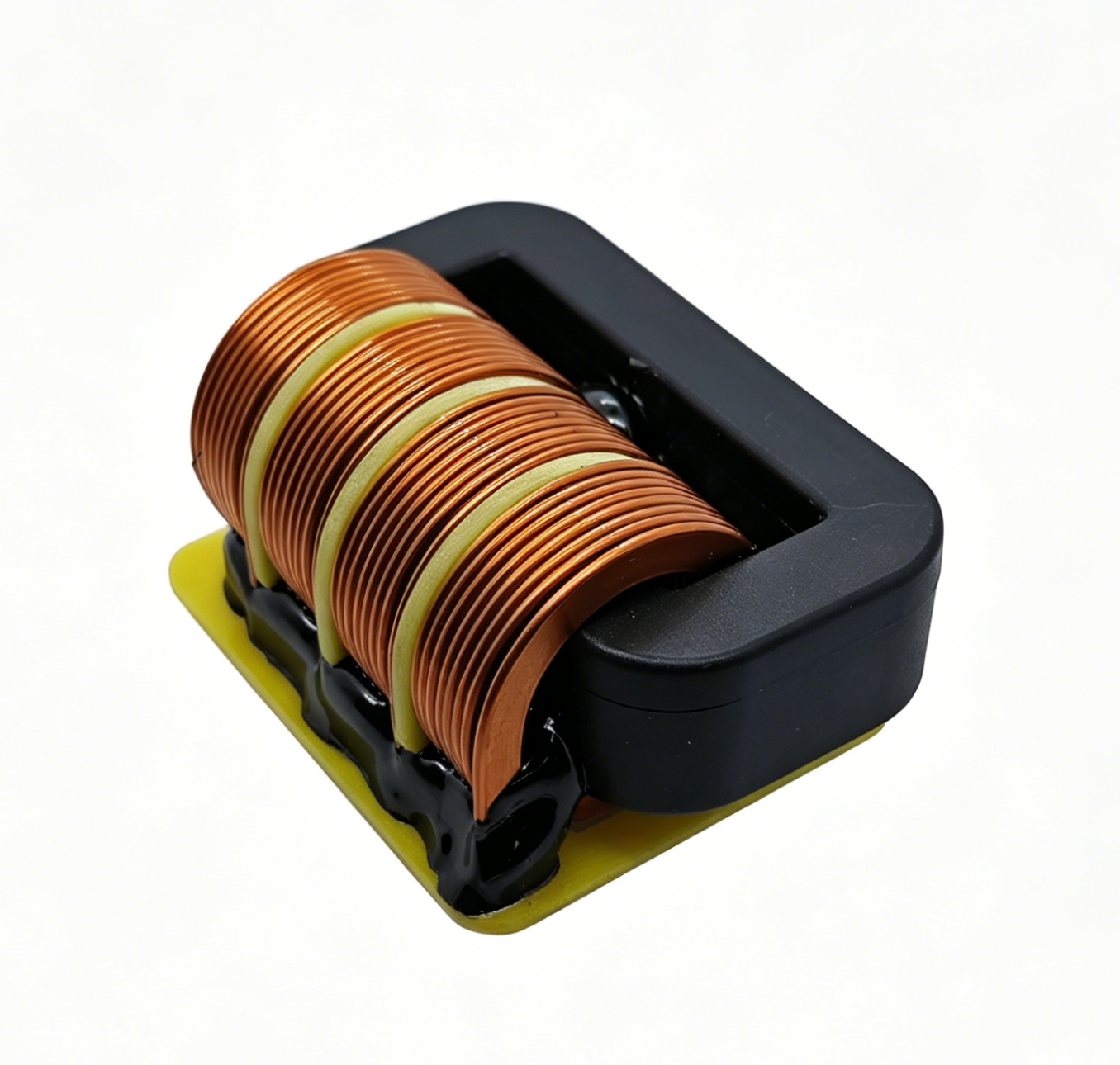

4 Windings Common Mode Choke, Flat Wire High Current Inductor

Notes: Customized is available
