GT0513 Gate Driver Transformer with 4000Vrms Basic Isolation, Push-Pull Topology & AEC-Q200 Compliance for IGBT and MOSFET Gate Drive

5000
MOQ
GT0513 Gate Driver Transformer with 4000Vrms Basic Isolation, Push-Pull Topology & AEC-Q200 Compliance for IGBT and MOSFET Gate Drive
Features Gallery Product Description Chat Now
Features
Specifications
Basic Isolation: 4000Vrms
Continuous Isolation: 600Vrms
Leakage Inductance: 200-350nH
Primary Inductance: 200µH
Interwinding Capacitance: ≤159pF
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: GT0513
Document: GT0513 Seires_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description

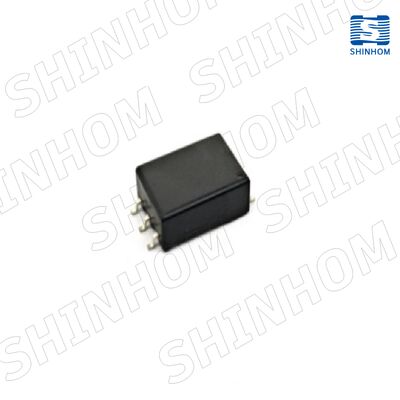

GT0513 Gate Driver Transformer – High‑Reliability Push‑Pull for IGBT, MOSFET & BMS Isolation
The GT0513 gate driver transformer is a compact push‑pull transformer built for IGBT and MOSFET gate drive and BMS isolation in automotive and industrial systems. Manufactured under IATF16949 and conforming to AEC‑Q200, this isolation transformer delivers stable performance from -40°C to +105°C.
Key Features
  • 4000Vrms basic isolation (600Vrms continuous) with high creepage - ensures safe galvanic separation between primary and secondary circuits
  • Push‑pull topology - ideal for high‑frequency isolated gate drive and DC‑DC converters
  • Multiple turns ratios - from 1CT:1.2CT up to 1CT:7CT, supporting various gate voltage levels
  • Low leakage inductance - 200‑350nH typ., tested at 100kHz
  • Minimum primary inductance - 200µH for efficient energy transfer
  • Very low DCR - as low as 0.13Ω on primary, reducing conduction loss
  • Low interwinding capacitance - ≤159pF, minimizing signal distortion
  • Open‑frame, non‑encapsulated design - easy PCB mounting, excellent thermal performance
Applications
  • IGBT / MOSFET gate drive in EV/HEV inverters
  • BMS isolation (main & redundant communication)
  • Push‑pull and flyback isolated power supplies
  • DC‑DC converters requiring reinforced insulation
For a reliable gate driver transformer in space‑constrained, high‑temperature environments, the GT0513 isolation transformer is the proven choice. Its push‑pull architecture and AEC‑Q200 compliance make it especially suitable for automotive battery management and onboard charger systems.
