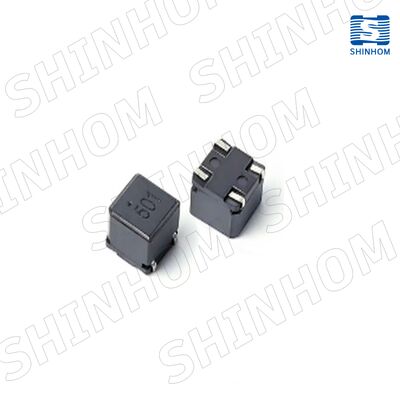

LQH6050S Series AEC-Q200 Compliant Common Mode Choke with High Common Mode Impedance in Compact SMD Package for EMI Suppression

5000
MOQ
LQH6050S Series AEC-Q200 Compliant Common Mode Choke with High Common Mode Impedance in Compact SMD Package for EMI Suppression
Features Gallery Product Description Chat Now
Features
Specifications
Inductance: 1.5-10 µH
CM Impedance: 600-3000 Ω @10MHz
Rated Current: 3.1-5.6 A @125°C
DCR: 4-17 MΩ
Rated Voltage: 80VDC
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: LQH6050S series
Document: LQH6050S series_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
LQH6050S Series – AEC-Q200 SMD Common Mode Choke for Power Line EMI Suppression
Product Overview

The LQH6050S series is a compact, molded SMD common mode choke designed for superior EMI noise suppression in power and signal lines. With AEC‑Q200 compliance, it is well suited for automotive and industrial applications where reliability under harsh conditions is required.

Key Features
  • AEC‑Q200 compliant for automotive-grade reliability
  • Compact SMD package saves board space
  • High common mode impedance for effective EMI filtering
  • Robust molded construction supports automated PCB assembly
  • Ideal for power filtering, signal line noise reduction, and EMC compliance
Electrical Characteristics (@25°C)
Part Number Inductance (µH) Min. CM Impedance (Ω) @10MHz Typ. Rated Current (A) @125°C DCR (mΩ) Max. Insulation Resistance (MΩ)
LQH6050S-101 1.5 600 5.6 4 ≥10
LQH6050S-201 3.5 1200 4.4 7 ≥10
LQH6050S-301 6.5 1800 3.7 11 ≥10
LQH6050S-501 10 3000 3.1 17 ≥10
General Specifications
  • Rated current based on Irms temperature rise of 20°C
  • Inductance test: 0.1V, 100kHz
  • Rated voltage: 80VDC
  • Withstand voltage: 200VDC
  • Operating temperature: -55°C ~ +150°C (including temperature rise)
  • Storage temperature: -55°C ~ +150°C
  • Packaging: Tape & Reel (300 pcs/reel)
Applications
  • Automotive electronics (ECU, infotainment, ADAS)
  • Industrial power lines and signal interfaces
  • Communication equipment
  • Noise suppression for DC-DC converters and power filters
Product Advantages
The molded structure provides excellent mechanical strength and heat resistance, while the high common mode impedance ensures effective attenuation of unwanted noise without affecting the desired signal frequency.
