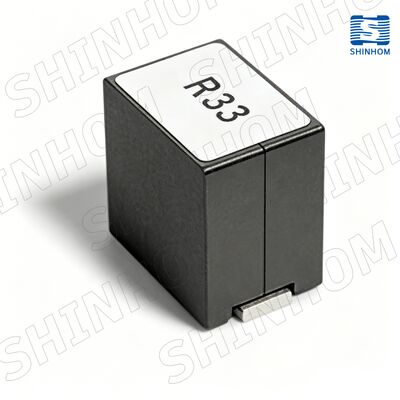

SMB100710 Series SMT Shielded Power Inductor with High Current Capability, Low DCR, and Compact SMT Package

5000
MOQ
SMB100710 Series SMT Shielded Power Inductor with High Current Capability, Low DCR, and Compact SMT Package
Features Gallery Product Description Chat Now
Features
Specifications
Inductance Range: 100nH ~ 330nH
DCR: 0.17mΩ
Saturation Current: Up To 113A
Operating Temperature: -40°C To +145°C
Package Size: 10 × 7 × 10 Mm
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: smb100710
Document: SMB100710 Series_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
SMT Shielded Power Inductor SMB100710 Series High Current SMD Inductor
Product Introduction

SMB100710 Series SMT shielded power inductors are engineered for high current and high efficiency power applications. Featuring compact 10×7×10mm dimensions, low DCR, and exceptional current handling capability, these inductors are widely utilized in VRM, DC-DC converters, and power supply systems.

Key Features
  • Shielded construction reduces EMI interference
  • High current capability with low DCR
  • Compact SMT package for space-saving designs
  • Stable performance under high temperature conditions
  • Suitable for multi-phase VRM/VRD regulators
  • RoHS compliant and reliable for industrial use
Product Specifications
Product Series SMB100710
Inductance Range 100nH ~ 330nH
DCR (Typical) 0.17mΩ
Saturation Current Up to 113A
Operating Temperature -40°C to +145°C
Package Size 10 × 7 × 10 mm
Mounting Type Surface Mount
Applications
  • DC-DC converters
  • VRM/VRD regulators
  • Graphic cards
  • Server power systems
  • Industrial power supplies
  • High current switching power supplies
Competitive Advantages
  • Excellent current handling capability
  • Low core loss and high efficiency
  • Compact footprint for dense PCB layouts
  • Stable inductance under heavy load
  • Suitable for high-frequency applications
