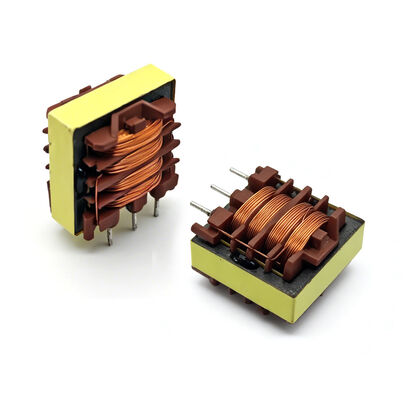

LEF20 Series Common Mode Power Line Choke
Product Overview

The LEF20 series common mode power line choke is engineered for effective suppression of common-mode interference. Featuring a 2-section winding structure, it delivers high resonance frequency, high pulse strength, and low audible noise. With approximately 2% leakage inductance, it provides symmetric interference suppression. The series complies with EN 60938-2 (VDE 0565-2) and UL 1283 standards, is RoHS-compliant, and suitable for wave soldering processes.

Key Features
  • High resonance frequency thanks to 2-section winding
  • High pulse strength
  • Low whirring noise
  • Approximately 2% leakage inductance for symmetric interference suppression
  • Suitable for wave soldering
  • Compliant with EN 60938-2 (VDE 0565-2) and UL 1283
  • RoHS-compliant
Applications
  • Suppression of common-mode interference
  • Electronic ballasts for lamps
  • Switch-mode power supplies for consumer electronics
Standard Specifications (@25°C)
Part Number Inductance (mH) +50%/-30% @10kHz, 0.1V DCR (mΩ) Max Leakage Inductance (μH) typ. @10kHz, 0.1V Current Range (A)
LEF20-332Y-1.8A 3.3 200 65 1.8
LEF20-682Y-1.3A 6.8 370 140 1.3
LEF20-103Y-1.0A 10 630 200 1.0
LEF20-153Y-0.8A 15 950 300 0.8
LEF20-273Y-0.65A 27 1600 550 0.65
LEF20-393Y-0.55A 39 2200 800 0.55
LEF20-473Y-0.45A 47 2800 950 0.45
LEF20-683Y-0.35A 68 4400 1300 0.35
LEF20-104Y-0.3A 100 6600 2000 0.30
