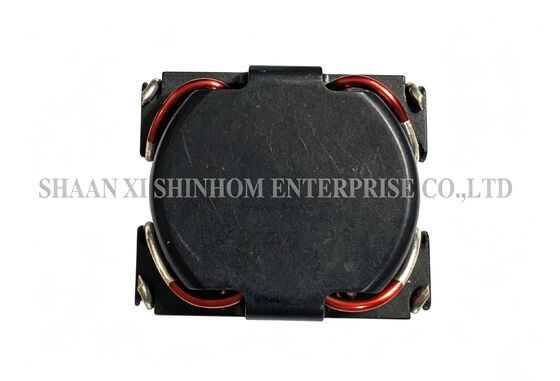

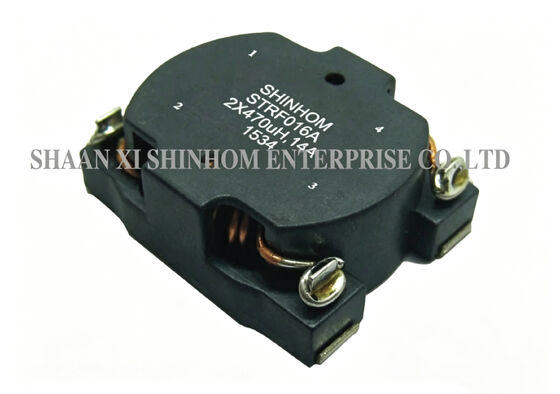

Wide Temp SMD Common Mode Inductor STRF016 Series -40°C to +125°C for LCD TVs and Noise Filtering

The STRF016 series high-current SMD common-mode choke inductor is designed for DC-DC and AC-DC converter applications. The product uses a magnetic shield structure to effectively reduce EMI. It provides high common-mode impedance across a wide frequency range, delivering excellent EMI suppression performance. Multiple sizes and current ratings are available. Tape and reel packaging supports SMT automated placement and is compatible with reflow soldering. The operating temperature range is -40°C to +125°C (including self-temperature rise), suitable for various harsh environments. It is widely used in DC-DC/AC-DC converters, communication systems, automotive electronics, and LCD TVs.

• Magnetic shield structure – low EMI radiation
• High impedance – excellent common-mode noise suppression
• Excellent EMI performance
• Operating temperature – -40°C to +125°C
• Multiple sizes and current ratings – available
• Tape and reel packaging – supports SMT automated placement
• Compatible with reflow soldering
• Lead-free – RoHS compliant

• DC-DC converters
• AC-DC converters
• Power line filtering
• Noise suppression
• Communication system power supplies
• Automotive electronic systems
• LCD TV power supplies
• EMI/RFI suppression

IDC

Temp. rise 40℃ Max

Inductance test

HP4284A 100KHz 0.1V

RDC

QuadTech 1880 Milliohmmeter

Solder methods

Vapor Phase, Infrared Reflow

Resistance to soldering heat

260℃ for 10 seconds

Solvent resistance

Conforms to MIL-STD-202E

Weight

1.5grams TYP

Tape & Reel

700/reel
