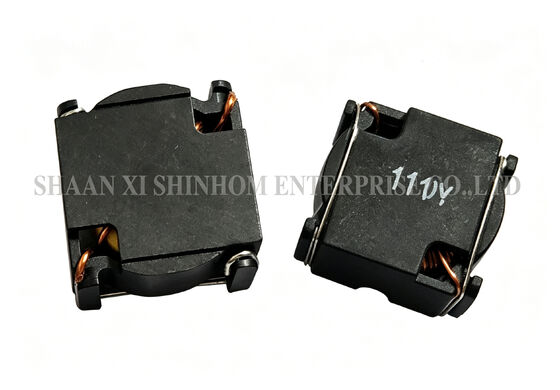

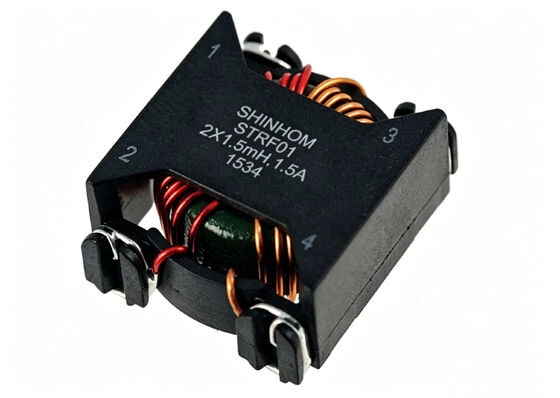

High Current SMD Toroidal Common Mode Choke STRF01 Series High Impedance for DC-DC Converters

The STRF01 series high-current SMD toroidal common-mode choke is designed for DC-DC and AC-DC converter applications. The product uses a ferrite toroidal core to provide high common-mode impedance across a wide frequency range, delivering excellent EMI/RFI suppression performance. The low-profile SMD package saves PCB space. The high current capacity and low DCR ensure efficient power conversion. The operating temperature range is -40°C to +125°C (including self-temperature rise), suitable for various harsh environments. It is widely used in DC-DC/AC-DC converters, desktop/laptop power supplies, communication equipment, automotive electronics, and LCD TVs.

Features

• Toroidal ferrite core – high common-mode impedance
• Excellent EMI/RFI suppression performance
• Low-profile SMD design – saves space
• High current carrying capacity
• Low DCR – low power loss
• Operating temperature – -40°C to +125°C
• Compatible with reflow soldering
• Lead-free – RoHS compliant

Applications

• DC-DC converters
• AC-DC converters
• Input filtering (series mode)
• EMI/RFI suppression
• Desktop/laptop power supplies
• LCD monitors
• Communication equipment
• Automotive electronic systems

TECHNICAL INFORMATION

IDC

Temp. rise 40℃ Max

Inductance test

HP4284A 100KHz 0.1V

RDC

QuadTech 1880 Milliohmmeter

Solder methods

Vapor Phase, Infrared Reflow

Resistance to soldering heat

260℃ for 10 seconds

Solvent resistance

Conforms to MIL-STD-202E

Weight

1.5grams TYP

Tape & Reel

700/reel

More sizes to choose from

Note: Product specifications can be customized.
