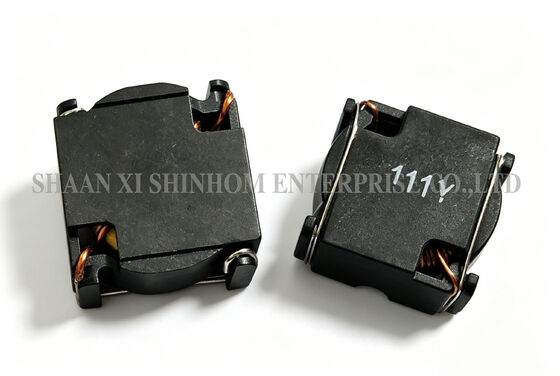

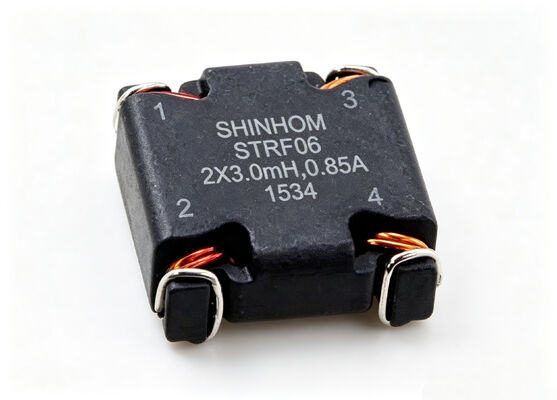

Toroidal Ferrite SMD Common Mode Choke STRF06 Series High Current for AC/DC and Noise Filtering

Q: What is the advantage of 6.8mH inductance in common-mode filtering?

A: The 6.8mH inductance provides high common-mode impedance. It achieves better common-mode noise attenuation in the low to mid frequency range, especially in the 150KHz-30MHz conducted EMI band. For power designs requiring strict EMI compliance, high-inductance common-mode chokes are key filtering components.

Q: What are the advantages of the toroidal core compared to other core structures?

A: The toroidal core has a closed magnetic circuit structure. Magnetic flux is concentrated inside the core, resulting in very low leakage flux. EMI radiation is much lower than I-core or open-core inductors. The toroidal core also has high magnetic permeability, requiring fewer turns for the same inductance value. This results in lower DCR and higher efficiency.

Q: How is the rated current IDC defined?

A: IDC is defined as the DC current value that causes a temperature rise of approximately 40°C in the coil. In actual applications, ensure that the maximum operating ambient temperature plus self-temperature rise does not exceed 125°C. When selecting, allow sufficient margin to ensure long-term reliability.
