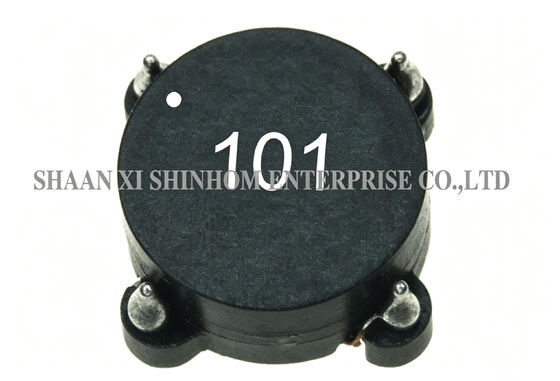

Wide Temp SMD Common Mode Choke STC05/06P Series -40°C to +125°C for Input Filtering and Electronic Appliances

Q: What is the difference between the STC05 and STC06P series?

A: The STC05 and STC06P series mainly differ in package size and corresponding electrical parameters (inductance, rated current, etc.). The STC06P typically offers higher rated current and better high-frequency performance. For specific selection, please refer to the datasheet or contact our technical support team.

Q: What are the advantages of the high-frequency design for this product?

A: The high-frequency design optimises core material and winding structure. It allows the product to maintain high common-mode impedance and stable filtering performance at higher switching frequencies (such as hundreds of KHz to MHz range). It is suitable for next-generation high-frequency DC-DC converters and switching power supplies.

Q: What are the advantages of high saturation core material?

A: High saturation core material offers higher saturation flux density. It is less likely to saturate under high-current bias conditions, ensuring the common-mode choke maintains stable inductance and filtering performance within the rated current range. The DC bias saturation is up to 35%, providing sufficient current margin.

Q: What are the advantages of the enclosed structure?

A: The enclosed structure fully encapsulates the core and windings within the housing. It provides physical protection and better insulation performance, while further reducing EMI radiation. The enclosed design also prevents foreign objects from contacting the windings, improving product reliability in harsh environments.
