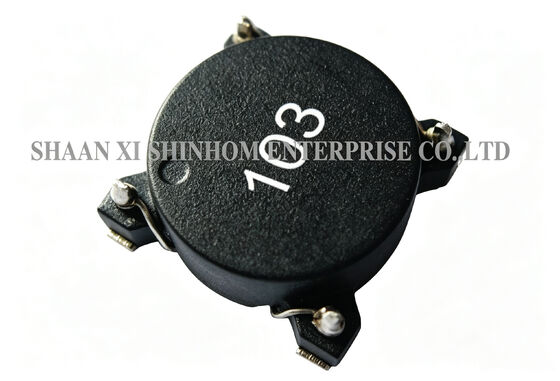

Wide Temp SMD Common Mode Inductor STC07 Series -40°C to +125°C 16.5×17.5mm for Electronic Appliances and Isolation

The STC07 series SMD toroidal common-mode inductor comes in a standard SMD package of 16.5*17.5mm. The inductance range covers 1mH to 39mH, with rated current from 0.3A to 2A. The product uses high saturation core material to maintain stable performance under high-current bias conditions. The low DCR reduces power loss. The toroidal core structure effectively reduces EMI radiation. The SMD package supports automated placement. It is widely used in electronic appliances, DC-DC conversion (parallel mode), isolation coupling, input filtering (series mode), and EMI/RFI suppression.

• Inductance range – 1mH to 39mH
• Rated current – 0.3A to 2A
• Excellent high-frequency performance
• High saturation core material
• Low EMI radiation
• Low DCR
• SMD package – supports automated placement
• Operating temperature – -40°C to +125°C

• Electronic appliance power filtering
• DC-DC conversion
• Isolation coupling
• Input filtering
• EMI/RFI suppression
• Communication equipment power supplies
• Industrial control power supplies
• Computer peripheral power supplies

Max of 35% saturation on DC bias applied

Note: Product specifications can be customized.
